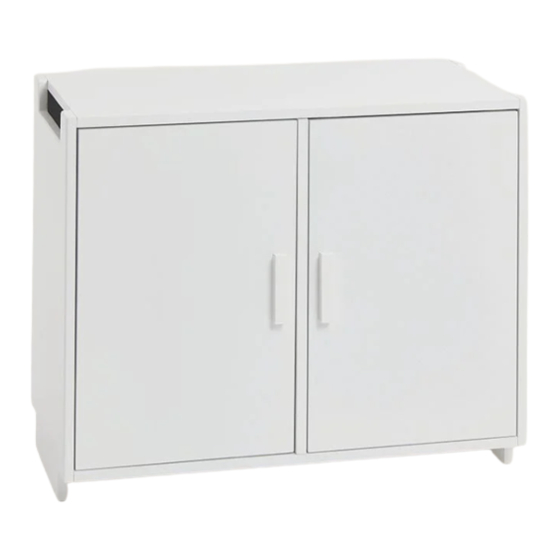

Alba Regular - Two Door Cupboard Unit
L4467
Assembly Difficulty
two-person job
easy
- medium
- hard
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
Hopefully our efforts will have been worthwhile and you'll sail
through the whole process. But if it all feels a bit too much
like hard work, then we do have an assembly company we
can recommend: the Flatpack Construction Company offers a
nationwide service and can be contacted on 0843 289 4951 or
www.flatpackconstruction.co.uk.
A few important pointers before you start:
•
Please read the instructions right through before you start, and check
that all the components have been included in the pack; we find
separating all the hardware into piles makes it easier to be sure that
everything is present and correct.
•
Make sure you have the right tools. Allen keys are provided if required,
but screw drivers and other tools are not. You'll find details of the tools
you need at the beginning of the instructions.
•
Do not throw away any packing materials until assembly is complete,
just in case you accidentally discard smaller parts or hardware.
V2
30/08/2019
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Great Little Trading Alba L4467
Summary of Contents for Great Little Trading Alba L4467
- Page 1 Thank you for shopping with GLTC, we hope you enjoy having this product in your home. We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make assembling this item as quick and painless as possible. Hopefully our efforts will have been worthwhile and you’ll sail Alba Regular - Two Door Cupboard Unit through the whole process.
-
Page 2: Safety Warnings
Safety Warnings: • To avoid possible injury from tipping - DO NOT allow children to step or climb on the product. Please read these instructions carefully before assembly. • Check all fixtures and fittings regularly and tighten as necessary. • Warning! Not suitable for children under 3 years due to small parts which may become detached and present a choking hazard. -
Page 3: Component Checklist
Component Check List Component Check List 8x Cam Dowels 12x Wooden Dowels 35mmL 25mmL 1x Side Panel 1x Side Panel 14x Domed Head Screws 8x Cam Locks 14mmL 15mm dia 1x Base Panel 1x Top Panel 30x Flat Head Screws 2x Magnetic Catches 14mmL 1x Central Divider... - Page 4 Hardware for Step 1: STEP 2: Add 2x magnetic catches (#6) to the front edge of the top panel C using 4x 8x #1 Cam Dowels flat head screws (#5). Position the screw in the middle of the slot on the magnetic catches. NOTE: If, once the unit is complete, the doors are standing proud from the unit, move the magnetic catches back a little.
- Page 5 STEP 4: Hardware for Step 4: STEP 3: Take side panel B and insert 4x wooden dowels into the You are building this unit BACK up. remaining holes. 4x #2 Wooden Dowels Take top panel C and insert 2x wooden dowels (#2) into the central holes and Position the panel with the grooved edge facing up and connect to the top edge of panel E.
- Page 6 STEP 5: Hardware for Step 6: Hardware for Step 5: Repeat step 4 with side panel A . 14x #4 Domed Head Screws 4x #2 Wooden Dowels 4x #3 Cam Locks STEP 6: Position both back panels F as shown with the angled edges in the corners of the unit.
- Page 7 STEP 7: STEP 8: IMPORTANT: Two people are needed to complete the next step safely. Attach the handles (#8) to the door panels G & H using 4x flat ended screws (#9). Position door G as shown so that the hinge plates on both hinges line up with Attach the keeper plates (#10) to EACH door using 2x flat head screws (#5) the pilot holes on the side panel.
- Page 8 STEP 9: STEP 10: IMPORTANT: Two people are needed to complete the next step safely. Insert the 4x shelf supports (#11) at the desired shelf level in each side of the cupboard unit. Carefully turn the unit over so it is on it’s other side. Insert shelf panels I.
- Page 9 STEP 11: Your unit is now ready to use. This unit should NOT be used on it’s own, it must be used with an appropriate Alba REGULAR base unit.
- Page 10 When correct position is achieved, repeat with the second door. When in the corrected position, re-tighten the screws. Repeat with the second door. Copyright© 2019 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
