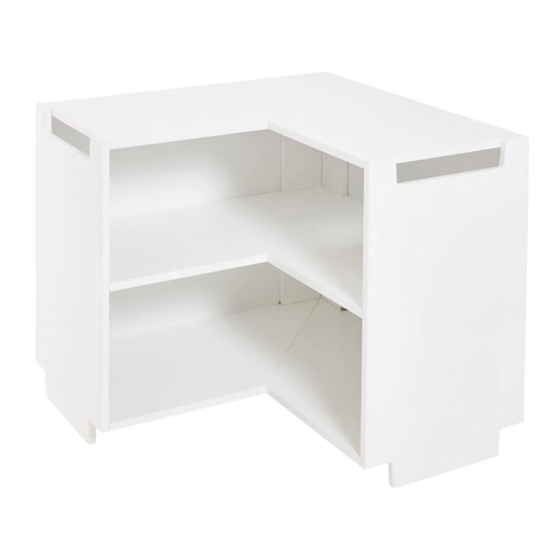

Alba Corner Shelf Unit
L4471
Assembly Difficulty
two-person job
easy
- medium
- hard
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
Hopefully our efforts will have been worthwhile and you'll sail
through the whole process. But if it all feels a bit too much
like hard work, then we do have an assembly company we
can recommend: the Flatpack Construction Company offers a
nationwide service and can be contacted on 0843 289 4951 or
www.flatpackconstruction.co.uk.
A few important pointers before you start:
•
Please read the instructions right through before you start, and check
that all the components have been included in the pack; we find
separating all the hardware into piles makes it easier to be sure that
everything is present and correct.
•
Make sure you have the right tools. Allen keys are provided if required,
but screw drivers and other tools are not. You'll find details of the tools
you need at the beginning of the instructions.
•
Do not throw away any packing materials until assembly is complete,
just in case you accidentally discard smaller parts or hardware.
V1
07/06/2019
1
Advertisement
Table of Contents
Related Manuals for Great Little Trading L4471
Summary of Contents for Great Little Trading L4471
- Page 1 Hopefully our efforts will have been worthwhile and you’ll sail Alba Corner Shelf Unit through the whole process. But if it all feels a bit too much L4471 like hard work, then we do have an assembly company we can recommend: the Flatpack Construction Company offers a nationwide service and can be contacted on 0843 289 4951 or www.flatpackconstruction.co.uk.
-
Page 2: Safety Warnings
Safety Warnings: Customer Service: Please read these instructions carefully before assembly. • If you find that any components are missing or damaged, please do not begin assembly and do not use the item. Please contact GLTC • Warning! Not suitable for children under 3 years due to small parts Customer Services on 0344 848 6000 immediately. -
Page 3: Component Checklist
Component Check List Component Check List 1x Back Support Panel 1x LH Side Panel 1x RH Side Panel 1x Back Support Panel (with drill holes on edge) 1x LH Top Panel 1x RH Top Panel 2x RH Back Panels 2x LH Back Panels 1x LH Base Panel 1x RH Base Panel 1x RH Shelf Panel... - Page 4 Component Check List 16x Cam Dowels 28x Wooden Dowels 35mmL 25mmL 32x Domed Head Screws 16x Cam Locks 14mmL 15mmL dia You will need (not supplied) 6x Double Ended Cam Dowels Philips Head Screwdriver...
- Page 5 #2 x2 STEP 1: Join all the corner panels together. Take top panels C & D and position with large drill holes facing up and the angled edges next to each other as shown. #2 x2 Insert 2x wooden dowels (#2) into the inner holes on the angled edge of panel C.
- Page 6 STEP 3: Hardware for Step 2: Carefully turn joined panels E & F over, to show the small set of drill holes in the corner. Insert 2x cam dowels (#1) into the smaller, middle drill holes in the corners of 12x #1 Cam Dowels the C/D &...
- Page 7 STEP 4: Hardware for Step 5: Lay back support panel I flat on the floor. The large drill holes on the panel to be facing the floor and the small pilot holes on the edge MUST be facing 8x #2 Wooden Dowels outwards.
- Page 8 STEP 6: STEP 7: Take side panel A and insert 6x wooden dowels in the remaining drill holes. Keeping the unit in the same position, repeat step 6 with panel B. Line up the grooved edge on panel A with the grooved edges of the corner This time, ensure the grooved edge is facing the the floor.
- Page 9 #4 x8 #4 x8 #4 x8 #4 x8 Hardware for Step 9: 32x #4 Domed Head Screws Copyright© 2019 G.L.T.C. Ltd. All rights reserved. 2x #3 Cam Locks Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
