Great Little Trading L4463 Manual

Great Little Trading L4463 Manual

Alba narrow shelf

Advertisement

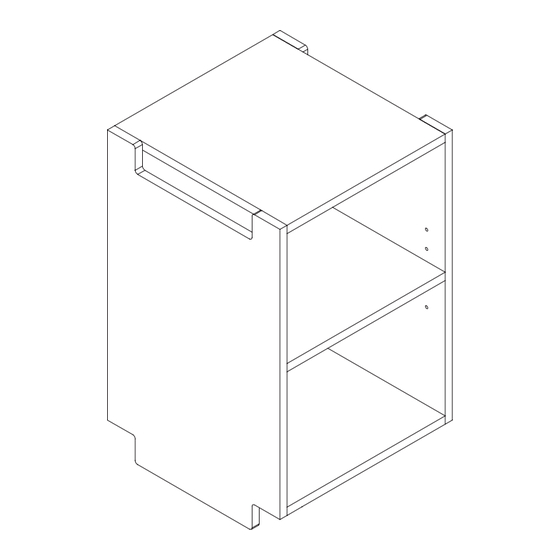

Alba Narrow Shelf
L4463
Assembly Difficulty
one-person job
easy
- medium - hard
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
Hopefully our efforts will have been worthwhile and you'll sail
through the whole process. But if it all feels a bit too much
like hard work, then we do have an assembly company we
can recommend: the Flatpack Construction Company offers a
nationwide service and can be contacted on 0843 289 4951 or
www.flatpackconstruction.co.uk.
A few important pointers before you start:
Please read the instructions right through before you start, and check
that all the components have been included in the pack; we find
separating all the hardware into piles makes it easier to be sure that
everything is present and correct.
Make sure you have the right tools. Allen keys are provided if required,
but screw drivers and other tools are not. You'll find details of the tools
you need at the beginning of the instructions.
Do not throw away any packing materials until assembly is complete,
just in case you accidentally discard smaller parts or hardware.
V1
29/05/2019
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L4463 and is the answer not in the manual?

Questions and answers

Summary of Contents for Great Little Trading L4463

  • Page 1 Hopefully our efforts will have been worthwhile and you’ll sail Alba Narrow Shelf through the whole process. But if it all feels a bit too much L4463 like hard work, then we do have an assembly company we can recommend: the Flatpack Construction Company offers a nationwide service and can be contacted on 0843 289 4951 or www.flatpackconstruction.co.uk.
  • Page 2: Safety Warnings

    Safety Warnings: Please read these instructions carefully before assembly. • Check all fixtures and fittings regularly and tighten as necessary. • Warning! Not suitable for children under 3 years due to small parts • Remove all packaging before allowing your child to use the product. which may become detached and present a choking hazard.
  • Page 3: Component Checklist

    Component Check List Component Check List 8x Cam Dowels 8x Wooden Dowels 1x RH Side Panel 1x LH Side Panel 35mmL 25mmL 8x Cam Locks 10x Domed Screw 15mmL dia 14mmL 1x Top Panel 1x Base Panel You will need (not supplied) 4x Shelf Supports Philips Head Screwdriver...
  • Page 4 STEP 2: Take Panel A and insert 4x wooden dowels (#2) into the holes at the edges of the Hardware for Step 1: panel as shown. Position with the grooved edge on the floor. Connect top panel C and base panel D with the side panel. Note the positioning of these panels.
  • Page 5 STEP 3: STEP 4: Hardware for Step 3: Repeat step 2 to fix side panel B in position, again Carefully turn unit over, please do this with a second person if necessary. ensuring the panel is positioned with the grooved Place back panel E on the unit and align with the pilot holes on the grooved 4x #2 Wooden Dowels edge on the floor and the protruding end pointing...
  • Page 6 This unit should NOT be used on it’s own, it must be used with the Alba NARROW base unit. Insert shelf panel F. Copyright© 2019 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
