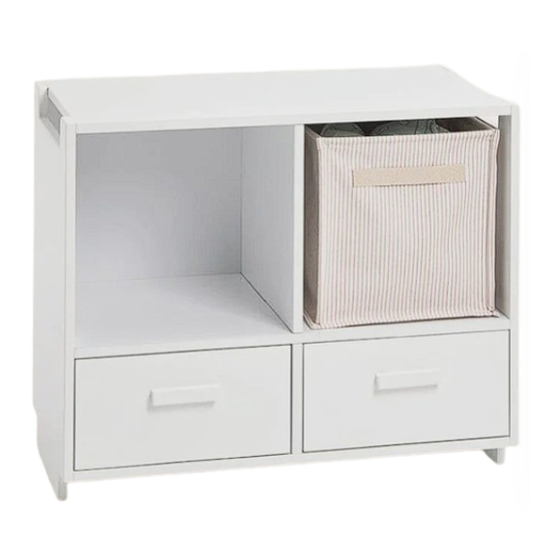

Alba Regular - Double Drawer unit
L4468
Assembly Difficulty
one-person job
easy
- medium
- hard
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
Hopefully our efforts will have been worthwhile and you'll sail
through the whole process. But if it all feels a bit too much
like hard work, then we do have an assembly company we
can recommend: the Flatpack Construction Company offers a
nationwide service and can be contacted on 0843 289 4951 or
www.flatpackconstruction.co.uk.
A few important pointers before you start:
•
Please read the instructions right through before you start, and check
that all the components have been included in the pack; we find
separating all the hardware into piles makes it easier to be sure that
everything is present and correct.
•
Make sure you have the right tools. Allen keys are provided if required,
but screw drivers and other tools are not. You'll find details of the tools
you need at the beginning of the instructions.
•
Do not throw away any packing materials until assembly is complete,
just in case you accidentally discard smaller parts or hardware.
V2
30/08/2019
1
Advertisement
Table of Contents
Related Manuals for Great Little Trading Alba Regular L4468
Summary of Contents for Great Little Trading Alba Regular L4468
- Page 1 Thank you for shopping with GLTC, we hope you enjoy having this product in your home. We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make assembling this item as quick and painless as possible. Hopefully our efforts will have been worthwhile and you’ll sail Alba Regular - Double Drawer unit through the whole process.
-
Page 2: Safety Warnings
Safety Warnings: Please read these instructions carefully before assembly. • To avoid possible injury from tipping - DO NOT allow children to step or climb on the product. • Warning! Not suitable for children under 3 years due to small parts which may become detached and present a choking hazard. -
Page 3: Component Checklist
Component Check List Component Check List 2x Side Panels (Drawer) 2x Back Panels (Drawer) 1x Side Panel 1x Side Panel 2x Base Panels (Drawer) 2x Front Panels (Drawer) 1x Base Panel 1x Top Panel 1x Central Divider 1x Shelf Panel 2x Back Panels 2x Side Panels (Drawer) - Page 4 STEP 1: Component Check List Prepare the side panels. Attach the flat runners (#6) to side panels A & B using the flat head screws (#5). The position of the runners is important. - The wheel of the runner needs to be at the front of the panels (with the flat edge) and close to the shaped base edge of the panel.
- Page 5 STEP 2: Prepare the central divider. Runners need to be added to BOTH SIDES of panel E (there are not 2 panels). Lay panel E in Position 1. Attach 1x flat runner (#6) to panel E using 3x flat head screws (#5). Then turn the panel over into Position 2 and attach the remaining flat runner (#6) using 3x flat head screws (#5).
- Page 6 STEP 5: STEP 4: You are building this unit BACK up. Take side panel B and insert 6x wooden dowels into the remaining holes. Take top panel C and insert 2x wooden dowels (#2) into the central holes and Position the panel with the grooved edge facing up and push onto the C/D/E/F connect to the top edge of panel E.
- Page 7 STEP 6: STEP 7: Repeat step 5 with side panel A. Line up both back panels G with the pilot holes in the grooved edges and fix in place with 14x domed head screws (#4). When complete, please stand the unit on its feet. Hardware for Step 6: 6x #2 Wooden Dowels Hardware for Step 7:...
- Page 8 STEP 8: Hardware for Step 8: STEP 9: Create the drawers. Add the back panel J to the drawer sides. Attach the L-shaped runners (#7) to the drawer side Line up the grooves on the inside of the drawer and use 2x wooden dowel 12x #5 Flat Head Screws panels H (x2) &...
- Page 9 Hardware for Step 11: 4x #9 Flat Ended Screw 4x #1 Cam Dowels 2x #8 Handles STEP 10: STEP 11: Slide drawer base panel K into the grooves on the inside of the drawer box. Take drawer front panel L and attach the handle (#8) using 2x flat ended Repeat for second drawer.
- Page 10 Insert 2x cam locks into the holes on panels H & I and lock to secure. Repeat for second drawer Copyright© 2019 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
