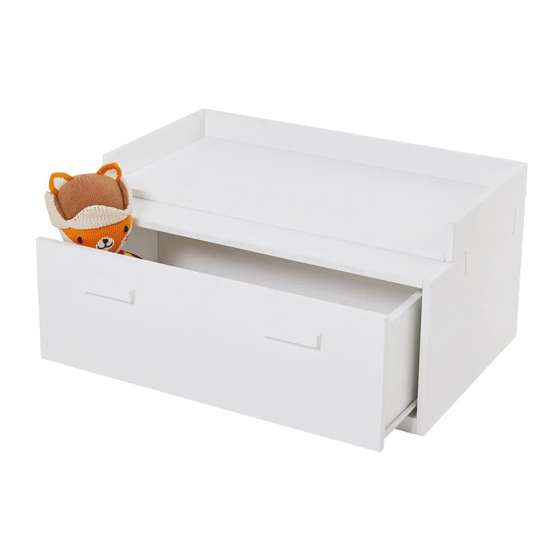

Alba Regular - Toy Box Base Unit & Top Shelf
L4469
Assembly Difficulty
one-person job
easy
- medium
- hard
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
Hopefully our efforts will have been worthwhile and you'll sail
through the whole process. But if it all feels a bit too much
like hard work, then we do have an assembly company we
can recommend: the Flatpack Construction Company offers a
nationwide service and can be contacted on 0843 289 4951 or
www.flatpackconstruction.co.uk.
A few important pointers before you start:
•
Please read the instructions right through before you start, and check
that all the components have been included in the pack; we find
separating all the hardware into piles makes it easier to be sure that
everything is present and correct.
•
Make sure you have the right tools. Allen keys are provided if required,
but screw drivers and other tools are not. You'll find details of the tools
you need at the beginning of the instructions.
•
Do not throw away any packing materials until assembly is complete,
just in case you accidentally discard smaller parts or hardware.
V1
05/06/2019
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Great Little Trading Alba Regular
Summary of Contents for Great Little Trading Alba Regular
- Page 1 Hopefully our efforts will have been worthwhile and you’ll sail Alba Regular - Toy Box Base Unit & Top Shelf through the whole process. But if it all feels a bit too much...
-
Page 2: Safety Warnings
We do stock spare hardware packs at our warehouse, so we should be • This unit can only be used in conjunction with other Alba Regular able to send you a replacement pack immediately if required. units. All stacked Alba furniture must start with a GLTC Alba base unit. -
Page 3: Component Checklist
Component Check List Component Check List 1x Top Shelf - Back Upstand 1x Top Shelf - Base 1x Toy Box - Back Panel 1x Toy box Drawer - LH Side Panel 1x Top Shelf - LH Side Panel 1x Top Shelf - RH Side Panel 1x Toy Box Drawer - RH Side Panel 1x Toy Box Drawer - Back Panel 1x Toy Box - Top Panel... - Page 4 Component Check List STEP 1: Build the Top Shelf first. Using a Phillips screwdriver, insert 1x cam dowel (#1) in the central hole of panel A. Add 2x wooden dowels (#2) in the remaining holes and join panels A & B together. 19x Cam Dowels 18x Wooden Dowels Insert 1x cam lock (#3) in the central hole of panel B and turn clockwise to...
- Page 5 STEP 3: Insert 2x wooden dowels (#2) into the innermost holes on BOTH edges of panel A. These will insert into the larger holes on panels C& D. STEP 2: Attach the side panels and secure using 3x cam locks (#3) on BOTH sides. Using a Phillips screwdriver, prepare the top shelf side panels by inserting 3x cam dowels (#1) into the smaller holes of BOTH panels D &...
- Page 6 STEP 5: Now build the Toy Box Surround. Attach the flat runners (#6) to the toy box side panels G & H using the flat head screws (#5). The position of the runners is important. - The wheel of the runner needs to be at the front of the panels (with the flat edge) and close to the straight edge of the panel (this is the base edge).
- Page 7 Grooved edges on panels to line up Hardware for Step 6: Hardware for Step 7: 4x #2 Wooden Dowels 4x #2 Wooden Dowels 4x #3 Cam Locks 4x #3 Cam Locks BACK BASE FRONT STEP 6: Lay side panel G down and insert 4x wooden dowels (#2) into the holes in the four corners of the panel.
- Page 8 Hardware for Step 9: STEP 8: Line up the back panel I with the pilot holes in the grooved edges and fix in 6x #5 Flat Head Screws 14mmL place with 12x domed head screws (#4). The toy box surround is now ready to use. 2x #7 L-Shaped runners STEP 9: Make the toy box drawer.
- Page 9 Hardware for Step 10: 2x #2 Wooden Dowels 4x #10 Screws 30mmL STEP 10: STEP 11: Add the back panel L to the drawer sides. Slide base panel M into the grooves on the inside of the drawer box. Line up the grooves on the inside of the drawer and use a wooden dowel (#2) to position the back panel L against the side panel J.
- Page 10 Hardware for Step 12: STEP 13: Insert 2x wooden dowels into the remaining middle holes on the front panel 4x #1 Cam Dowels Line up the groove on the drawer front with the base panel of the drawer box and push into position on the drawer box. Insert 4x cam locks into the holes 4x #9 Flat End Screw 24mmL on panels J &...
