SPECIFICATIONS: WATER-COOLED UNITS

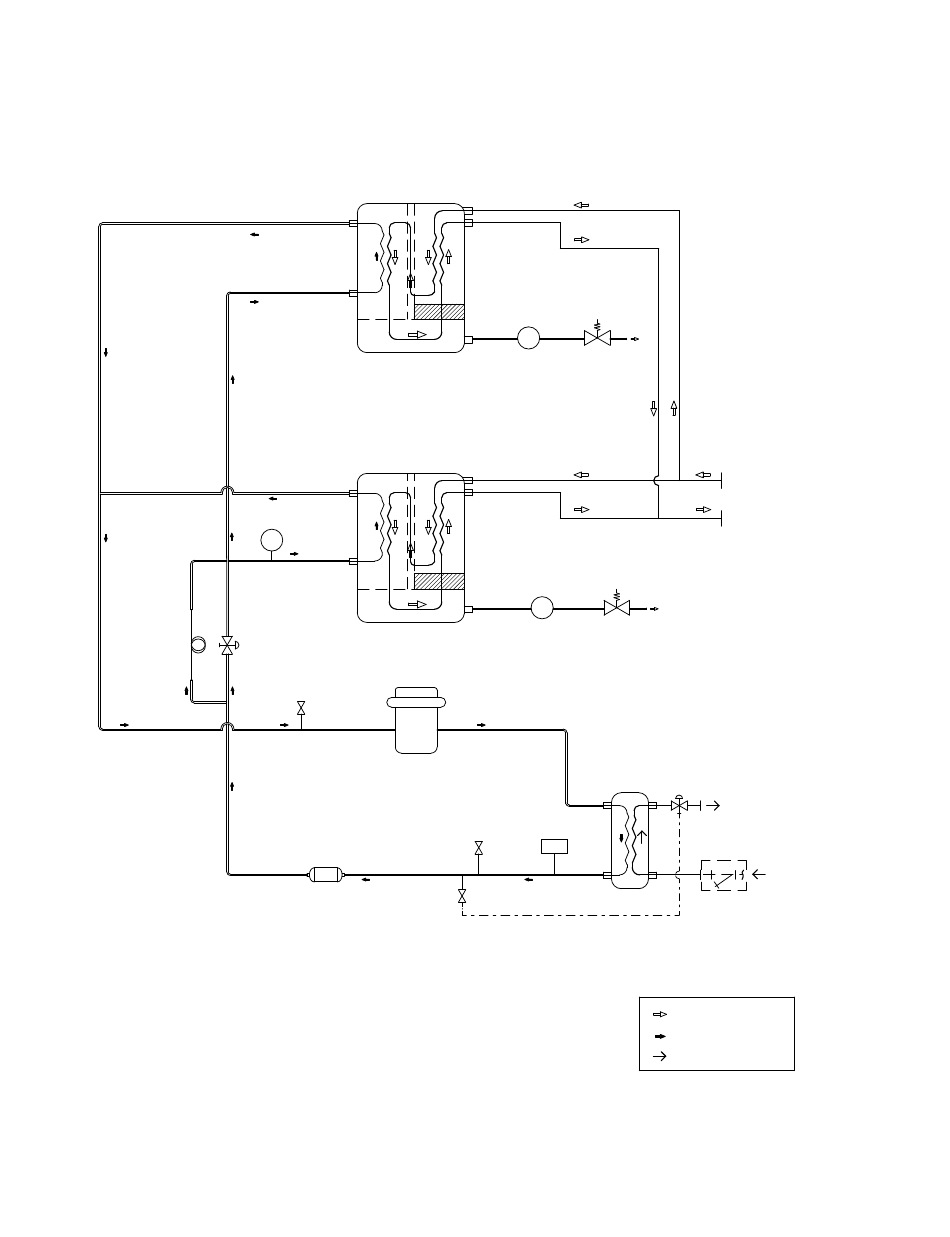

Air and Refrigerant Flow Schematic:

Models HGEN800W through HGEN1200W

TEMPERATURE
SENSOR
CAPILLARY
EXPANSION VALVE
TUBE
MCGUIRE AIR COMPRESSORS INC
MOISTURE SEPARATOR INTEGRATED
BRAZED PLATE HEAT EXCHANGER #2
(REF TO AIR) (AIR TO AIR)
MOISTURE SEPARATOR INTEGRATED
BRAZED PLATE HEAT EXCHANGER #1
(REF TO AIR) (AIR TO AIR)
TS
SCHRADER
VALVE
REFRIGERATION
COMPRESSOR
FILTER/DRYER
S
DRAIN VALVE ELECTRONIC AUTO
STRAINER DRAIN VALVE
S
DRAIN VALVE ELECTRONIC AUTO
STRAINER DRAIN VALVE
CONDENSER
(WATER COOLED)
SCHRADER HIGH PRESSURE
VALVE SWITCH
H.P.S
1-888-229-9999
WETTED COMPRESSED AIR INLET
DRYED COMPRESSED AIR OUTLET
CONDENSING PRESSURE
REGULATOR
COOLING WATER OUTLET
COOLING WATER INLET
STRAINER
(CUSTOMER SCOPE)
COMPRESSED AIR FLOW
REFRIGERANT FLOW
COOLING WATER FLOW
