SPECIFICATIONS: AIR-COOLED UNITS

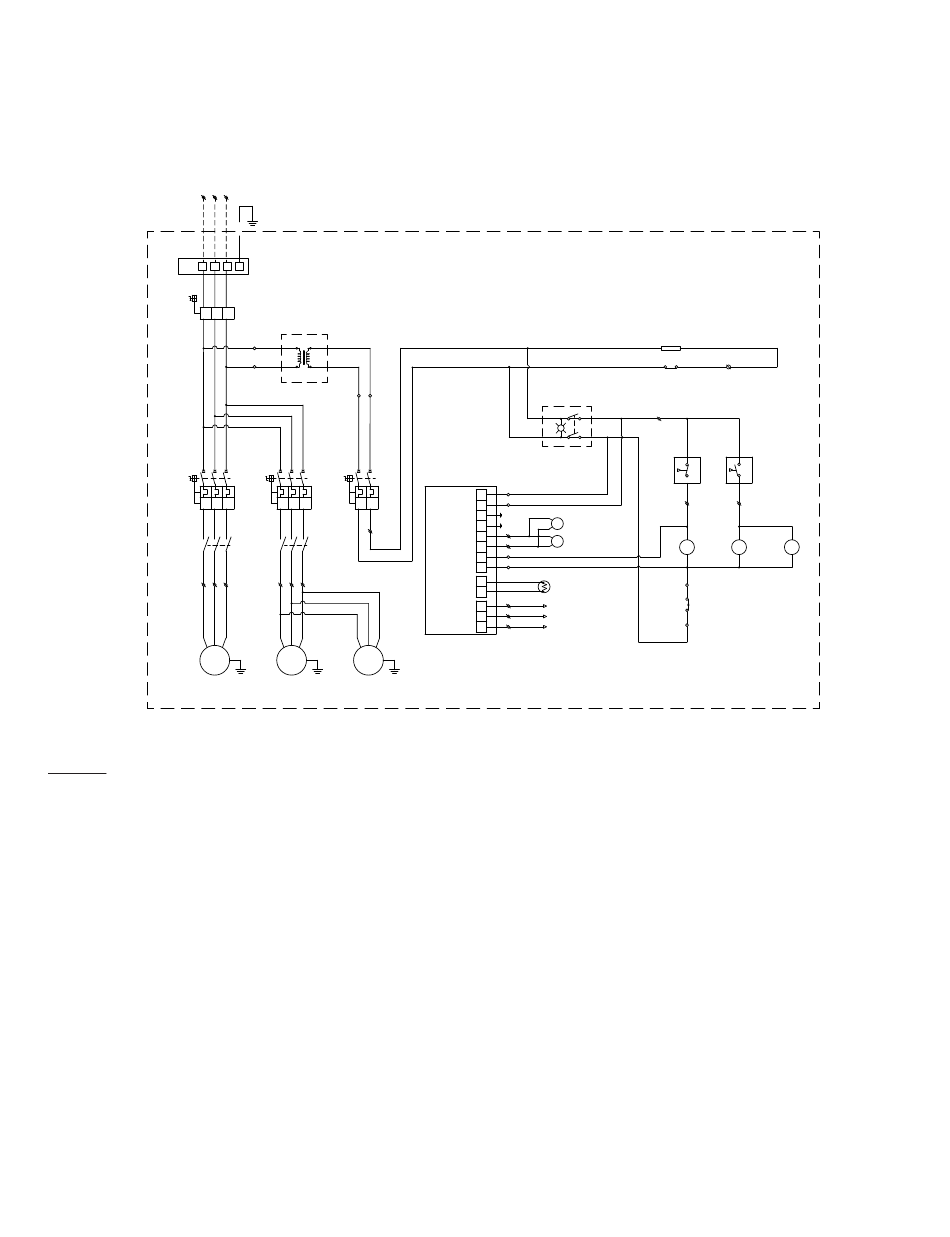

Electrical Schematic:

Models HGEN800A through HGEN1200A

480V / 3PH / 60HZ
L1 L2 L3
Customer's installation
TB1 L1 L2 L3
I> I> I>
TH1
I> I> I>
MC1
U1 V1 W1
REF'
COMP'
LEGEND (HGEN800A-1200A)
LEGEND
Q1: Power Cut-Off Switch with Handle
Q1 : POWER CUT-OFF SWITCH WITH HANDLE
TH1: Manual Motor Starter for Refrigerant Compressor
TH1 : MANUAL MOTOR STARTER FOR REF' COMP.
TH2 : MANUAL MOTOR STARTER FOR REF' COMP.
TH2: Manual Motor Starter for Fan Motor
MC1 : MAGNETIC CONTACTOR FOR REF' COMP.
MC1: Magnetic Contactor for Refrigerant Compressor
MC2: Magnetic Contactor for Fan Motor
CP1: Circuit Protector for Control Power
S1: Switch "On-Off"
S2: Fan Pressure Switch
S3: High Pressure Switch
GL1: Green Lamp
SOL1: Electronic Drain Valve #1
SOL2: Electronic Drain Valve #2
SENSOR: Temperature Sensor
DCB2: Digital Control Board II
TB1: Terminal Block for Main Power
CH: Crankcase Heater
