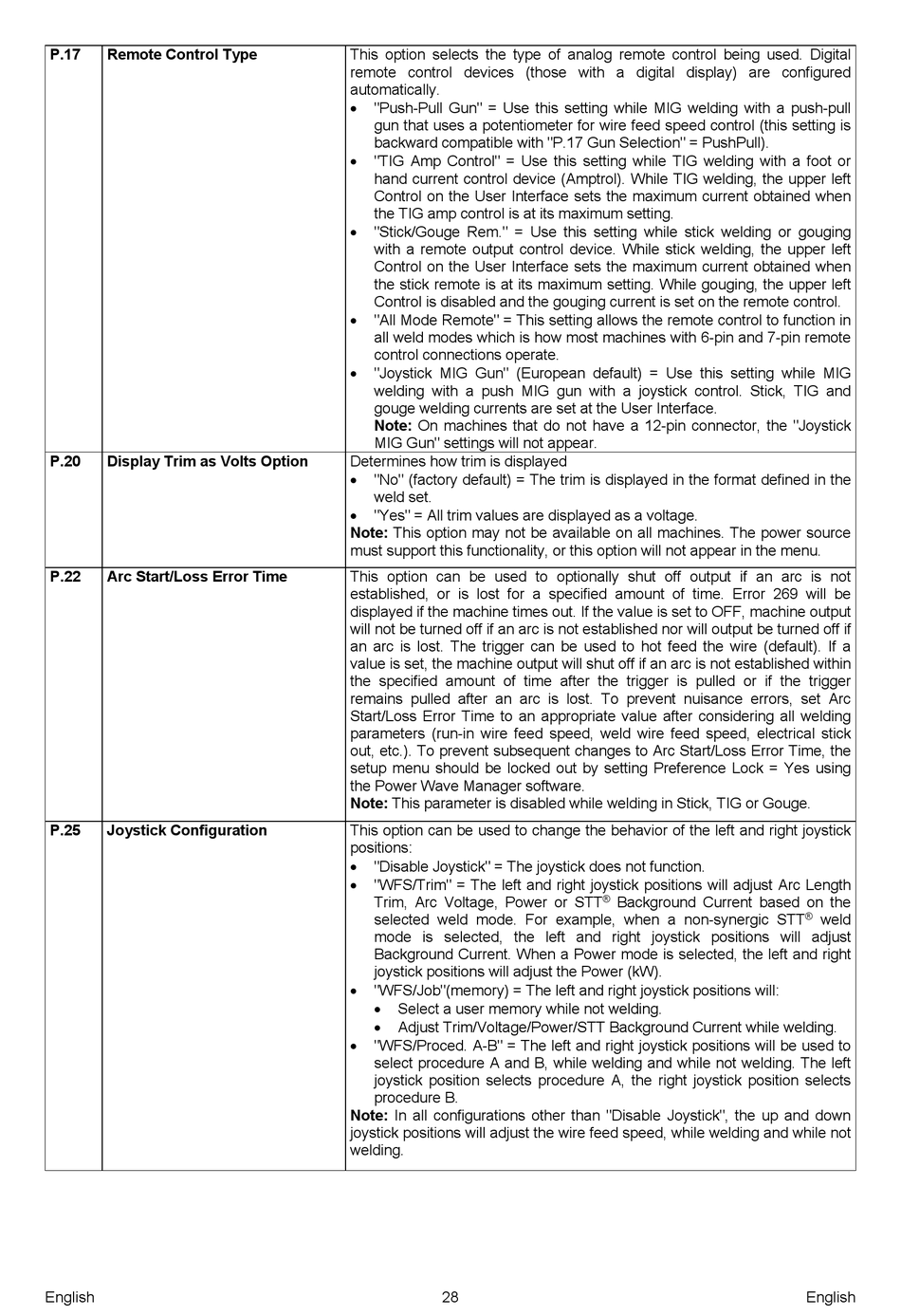

Lincoln Electric LF 52D Operator's Manual page 30

P.17 Remote Control Type
P.20 Display Trim as Volts Option
P.22 Arc Start/Loss Error Time
P.25 Joystick Configuration
English
This option selects the type of analog remote control being used. Digital
remote control devices (those with a digital display) are configured
automatically.

"Push-Pull Gun" = Use this setting while MIG welding with a push-pull
gun that uses a potentiometer for wire feed speed control (this setting is
backward compatible with "P.17 Gun Selection" = PushPull).

"TIG Amp Control" = Use this setting while TIG welding with a foot or
hand current control device (Amptrol). While TIG welding, the upper left
Control on the User Interface sets the maximum current obtained when
the TIG amp control is at its maximum setting.

"Stick/Gouge Rem." = Use this setting while stick welding or gouging
with a remote output control device. While stick welding, the upper left
Control on the User Interface sets the maximum current obtained when
the stick remote is at its maximum setting. While gouging, the upper left
Control is disabled and the gouging current is set on the remote control.

"All Mode Remote" = This setting allows the remote control to function in
all weld modes which is how most machines with 6-pin and 7-pin remote
control connections operate.

"Joystick MIG Gun" (European default) = Use this setting while MIG
welding with a push MIG gun with a joystick control. Stick, TIG and
gouge welding currents are set at the User Interface.
Note: On machines that do not have a 12-pin connector, the "Joystick
MIG Gun" settings will not appear.
Determines how trim is displayed

"No" (factory default) = The trim is displayed in the format defined in the
weld set.

"Yes" = All trim values are displayed as a voltage.
Note: This option may not be available on all machines. The power source
must support this functionality, or this option will not appear in the menu.
This option can be used to optionally shut off output if an arc is not
established, or is lost for a specified amount of time. Error 269 will be
displayed if the machine times out. If the value is set to OFF, machine output
will not be turned off if an arc is not established nor will output be turned off if
an arc is lost. The trigger can be used to hot feed the wire (default). If a
value is set, the machine output will shut off if an arc is not established within
the specified amount of time after the trigger is pulled or if the trigger
remains pulled after an arc is lost. To prevent nuisance errors, set Arc
Start/Loss Error Time to an appropriate value after considering all welding
parameters (run-in wire feed speed, weld wire feed speed, electrical stick
out, etc.). To prevent subsequent changes to Arc Start/Loss Error Time, the
setup menu should be locked out by setting Preference Lock = Yes using
the Power Wave Manager software.
Note: This parameter is disabled while welding in Stick, TIG or Gouge.
This option can be used to change the behavior of the left and right joystick
positions:

"Disable Joystick" = The joystick does not function.

"WFS/Trim" = The left and right joystick positions will adjust Arc Length
Trim, Arc Voltage, Power or STT
selected weld mode. For example, when a non-synergic STT
mode is selected, the left and right joystick positions will adjust
Background Current. When a Power mode is selected, the left and right
joystick positions will adjust the Power (kW).

"WFS/Job"(memory) = The left and right joystick positions will:

Select a user memory while not welding.

Adjust Trim/Voltage/Power/STT Background Current while welding.

"WFS/Proced. A-B" = The left and right joystick positions will be used to
select procedure A and B, while welding and while not welding. The left
joystick position selects procedure A, the right joystick position selects
procedure B.
Note: In all configurations other than "Disable Joystick", the up and down
joystick positions will adjust the wire feed speed, while welding and while not
welding.
