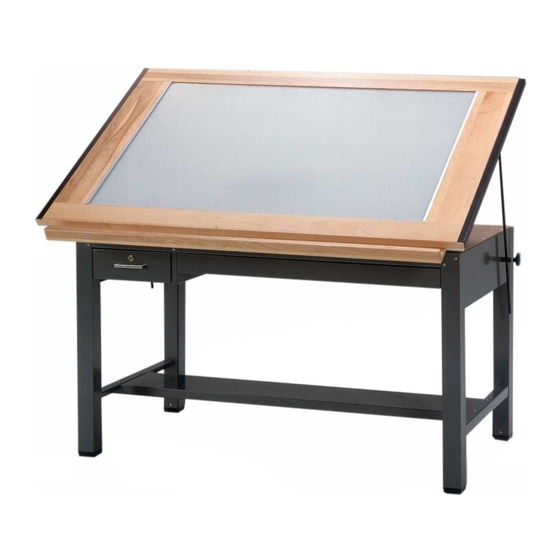

RANGER STEEL FOUR-POST TABLES
CATALOG No.
7734BLT
7736BLT
NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
When ordering components, specific color and/or size
information may be required. Contact a Mayline
Customer Service Representative. 1-800-822-8037
COMPONENTS:
TABLE
REF. #
QTY.
DESCRIPTION
1
1
R.H. END ASSEMBLY
2
1
L.H. END ASSEMBLY
3
1
FRONT RAIL
4
1
REAR RAIL
5
1
FOOT RAIL
6
1
DUST COVER
7
2
TILT ROD ASSEMBLY
8
1
CENTER SUPPORT
9
4
DRAWER SLIDE
10
1
TOOL TRAY
11
1
TOOL DRAWER
12
1
SHALLOW DRAWER
AUXILIARY DRAWER UNIT ACCESSORY:
All components are included with the Drawer Unit.
** Denotes Color Code
~~Denotes Size
FOR LIGHT TOP INSTALLATION REFER TO
INSTRUCTIONS INCLUDED WITH THE TOP
ASSEMBLY INSTRUCTIONS
with LIGHT TOP
PART No.
A7558**
A7757**
CALL~~**
CALL~~**
CALL~~**
CALL~~
A315
B7469**
B6361
F187
A7553**
CALL~~**
*for individual item, order that part number
HARDWARE BAG (PART No. A7682)
REF. #
QTY.
DESCRIPTION
E1
2
LOWER HINGE
E2
2
UPPER HINGE
E3
10
#10-24 x 3/8 SCREW
E4
8
#10-24 KEPS NUT
E5
12
1/4-28 x 3/8 SCREW
E6
12
1/4-28 KEPS NUT
E7
11
#8 x 5/8 SCREW
E8
2
RUBBER BUMPER
E9
2
KNOB
E10
2
WASHER
E11
2
5/16-18 x 1/2 BOLT
E12
2
TILT ROD GUIDE
E13
1
DRAWER HANDLE
E14
8
#8-32 x 3/8 THRD. CUTTING SCREW
E15
12
#8-32 x 5/16 MACHINE SCREW
E16
12
#8-32 ACORN NUT
E17
2
TILT ROD SPRING
AUXILIARY DRAWER UNIT ACCESSORY:
All hardware is included with the Drawer Unit.
American Filing Solutions
P.O. Box 891719, Temecula , CA 92589
Tel: 1-951-694-4150 | 1-888-891-1970
Fax: 1-951-506-7717 | 1-888-891-9970
Email: sales@FilingToday.com
www.FilingToday.com
TABLE
PART No.
B195*
B194*
X147*
T2*
X156*
T25*
X140A*
D38*
K13*
W30*
X157*
B160*
Q35*
X247*
X384*
T129*
V95*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mayline RANGER 7734BLT
Summary of Contents for Mayline RANGER 7734BLT
- Page 1 NOTE: Please count and inspect all pieces before disposing of any carton or packing materials. When ordering components, specific color and/or size *for individual item, order that part number information may be required. Contact a Mayline Customer Service Representative. 1-800-822-8037 COMPONENTS: HARDWARE BAG (PART No.
- Page 2 (E5) and Nuts (E6). TIGHTEN all rail attaching screws now. 3. Turn assembled table to an upright position. MAYLINE recommends that two people perform this task. 4. Fasten one Tilt Rod Guide (E12) to each side of the table using one Bolt (E11) and one Washer (E10) per guide.
- Page 3 8. Attach one large Slide portion (9A) to the brackets on the R.H. side of the table using two Screws (E14). Repeat this procedure on the L.H. side of the Table. 9. Attach the smaller Slide portion (9B) to each side of the Drawer body using three Screws (E15) and three Acorn Nuts (E16).
