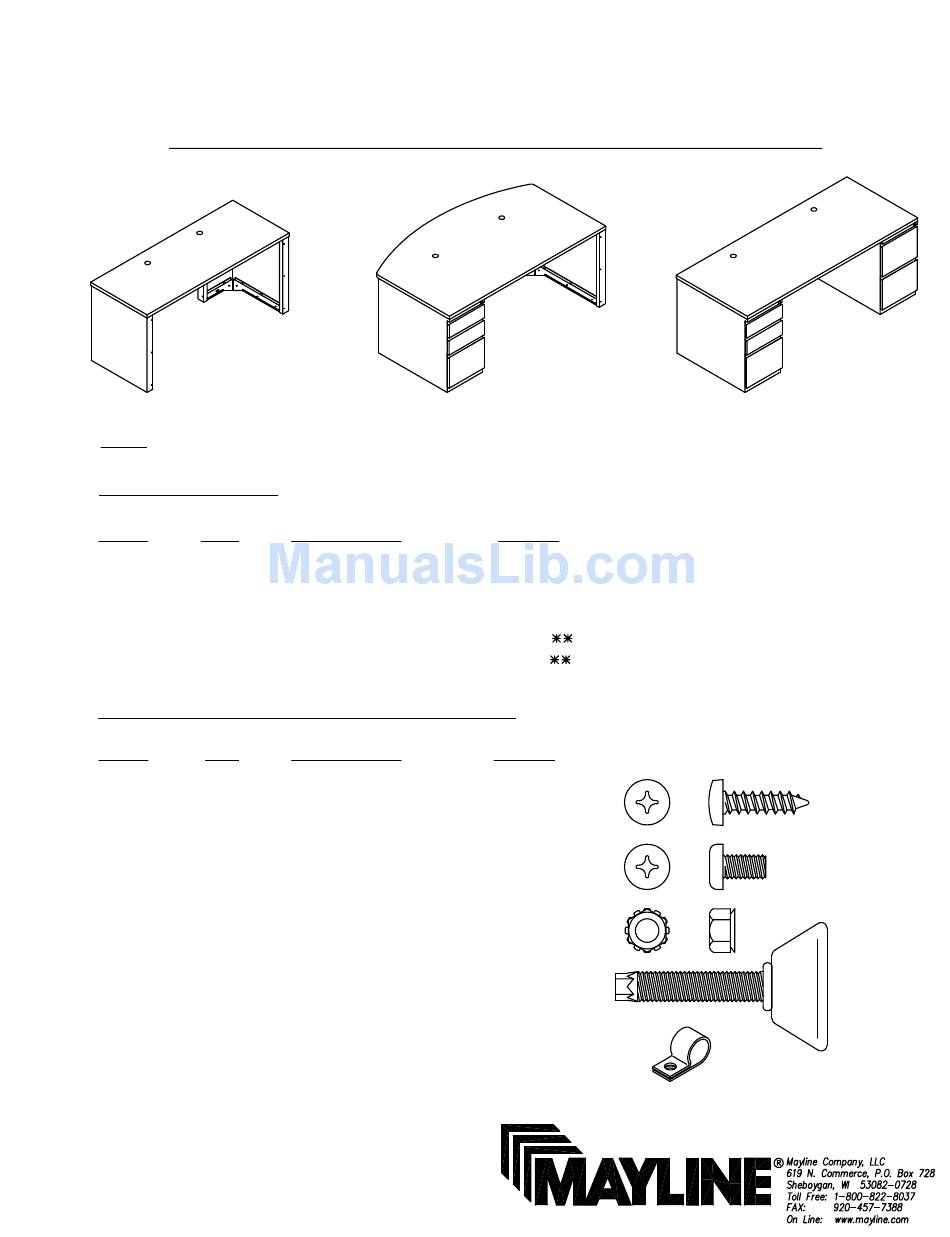

ASSEMBLY INSTRUCTIONS
CS
NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
COMPONENTS:
Item #
QTY.
1
1
2
1
3
0 / 1 / 2
4
2 / 1 / 0
5
1
6
1
HARDWARE BAG (PART No. A7618)
Item #
QTY
E1
26
E2
10
E3
10
E4
4
E5
4
II
DESK AND CREDENZA
When ordering components, specific color and/or size information may be required.
Contact a Mayline Customer Service Representative.
DESCRIPTION
WORK SURFACE
MODESTY PANEL
LEG
DRAWER PEDESTAL
L.H. GUSSET
R.H. GUSSET
DESCRIPTION
#10 X 3/4 SCREW
#10-24- X 3/8 SCREW
#10-24 KEPS NUT
GLIDE
CABLE CLAMP
(1)
PART #
CALL ~~**
CALL~~**
CALL~~**
CALL~~**
B7483
B7482
* for individual item, order that part number
PART #
X11*
X147*
T2*
Q630*
F191*
1-800-822-8037
** Denotes Color Code
~~Denotes Size
