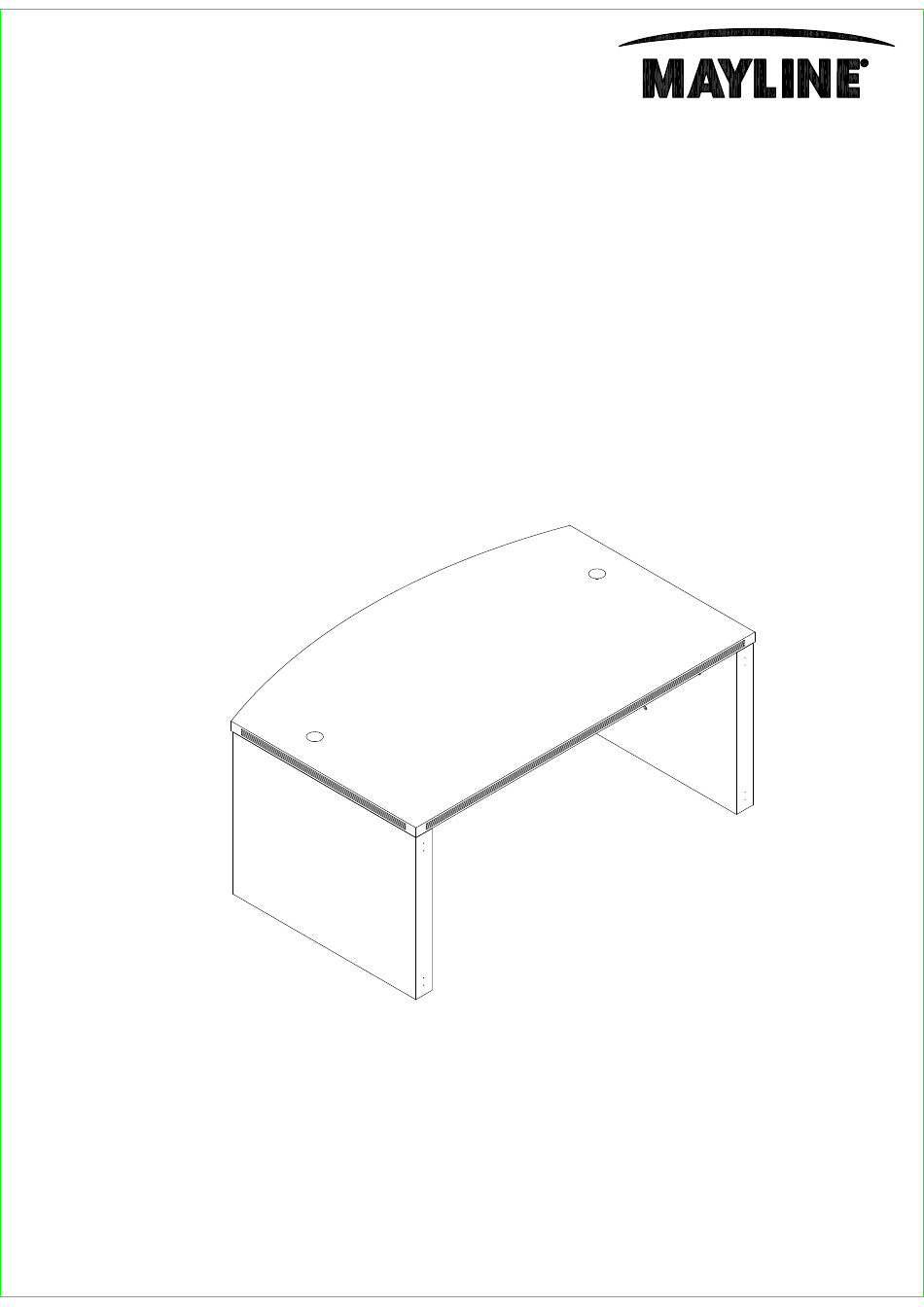

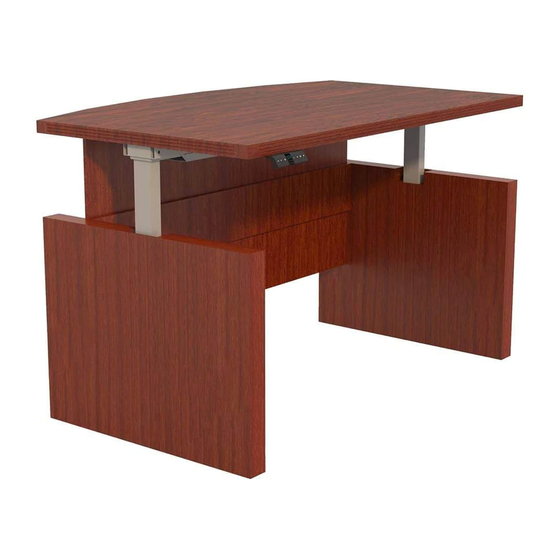

- Page 1 Aberdeen Series ® Main Desk - Height Adjustable Model No. ABDHA7242 / 6642 ASSEMBLY INSTRUCTIONS CALL 1-800-822-8037 FOR ASSISTANCE P/N ABDHA REV 1 11/17 www.mayline.com...
-
Page 2: Parts List
PARTS LIST ABDHA Spare Spare Name Part Qty. Name Part Qty. REALS001 REALS436 Cam Lock M6*15 REALS102 REALS434 Cam Sticker M6*33 REALS003 REALS100 Cam Post Grommet REALS004 REALBY047 Wood Dowel Corner Bracket 17 1 REALS005 REALS084 Wood Screw Ø4*16 Allen Wrench 5mm REALS435 ABDHAHB Allen Wrench 4mm... - Page 3 PARTS LIST ABDHA Name Part Qty. Name Part Qty. Wire Management Tray Adjustable Fixed Modesty Modesty Panel Panel PARTS LIST ABDBHA REALS437 Right Leg Levelers ABDBHAHB Left Leg...
- Page 4 PARTS LIST Z548/Z549 REALS016 REALS440 Ø4*16 M6*10 REALS438 Control box Z Bracket REALS442 Controller Ø4x14mm Z548HB Power cord NOTE: 1 Top 2 Modesty Panel 2 Wire Management Tray ① . with Hardware packed in one carton ABDHA7242/ABDHA6642 2 Legs ② . packed in one carton Control Box and 1 Power Cord and 1 Controller in one carton...
- Page 5 Review ALL instructions before beginning assembly. These instructions are provided to avoid problems that may occur from improper assembly or installation. Mayline and/or its distributor are not responsible for failure resulting from improper assembly or installation of this product. Moreover, all warranties are void for failure to follow these assembly instructions.
- Page 6 Insert Cams (A) into Fixed Modesty Panel (O). Install Cam Posts (C) into threaded inserts in Top of Legs (R and Q). Attach Fixed Modesty Panel (O) to Legs (R and Q) by turning Cams (A). Attach Stickers (B) over Cams (A). NOTE: Before assembly the top to metal frame,adjust the SAME HEIGHT of both wood legs...
- Page 7 Install the Bracket (T) to the Control Box (X) by Screws (S), Install the Control Box (X) to the Top (L) by Screw (W); Install the Bracket (J) to the Adjustable Modesty Panel (M) and the Top (L) by Screw (E). Put the Top (L) on the Legs (R and Q).
- Page 8 Install the Top (L) to the Legs (R and Q) by Screw (H); Put Memory Controller (Y) on desired location on front edge of top, and fasten with Screws (U). Uninstall the Frame Mounting Screws, Qty 2, with Wrench (K). Install Wire Management Tray (N) to Frame using Screws (G) and Wrench (K).
- Page 9 Put the Grommets (I) to the Top (L); Connect power for Control Box (X) using the Power Cord (V) and connect Controller (Y) into the Control Box (V); Plug Power Cord (V) into outlet and proceed with Controller Initialization. See User Manua;...
-
Page 10: Troubleshooting
Make sure no obstacles are in the desk's path. Make sure the desktop is not touching any walls. Make sure all cords are appropriate length to accommodate the change in height. IMPORTANT: You must INITIALIZE the desk prior to first use. Controller Initialization- Press and hold the Down button on the controller until the desk reaches its lowest height, slightly raises, and stops.
