Aberdeen Series

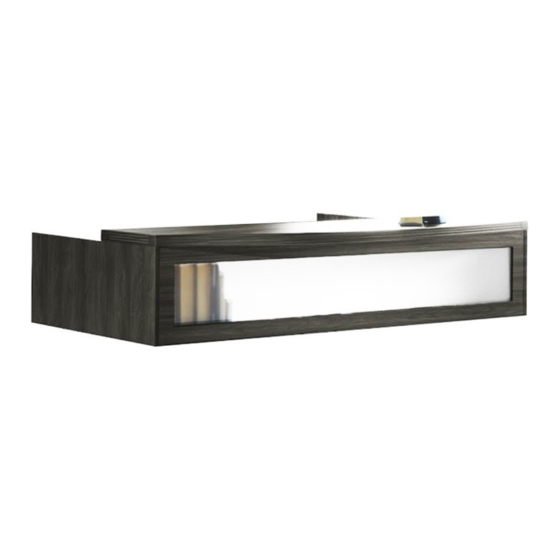

Reception Desk Transaction Counter
Model No. ARDTC
ASSEMBLY INSTRUCTIONS
CALL 1-800-822-8037 FOR ASSISTANCE
P/N
ARDTC
REV 07 07/21/14
TM
www.mayline.com
PARTS LIST
Spare
Name
Part
Qty.
Qty
HB
A
10 1
REALS004
Wood Dowel
HB
B
12
1
REALS003
Cam Post
HB
C
12
1
REALS001
Cam Fastener
ARDTCHB
Items with HB are in hardware box.
**Denotes Color Code
Spare
Name
Part
Qty.
HB
D
12
REALS102**
Cam Sticker
HB
E
6
REALS103**
Cam Sticker
HB
F
3
REALS248
Double Face Tape
1
Qty
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mayline realoffice Aberdeen ARDTC
Summary of Contents for Mayline realoffice Aberdeen ARDTC
- Page 1 REALS102** Wood Dowel Cam Sticker REALS003 REALS103** Cam Post Cam Sticker REALS248 REALS001 Double Face Tape Cam Fastener ARDTCHB Items with HB are in hardware box. ASSEMBLY INSTRUCTIONS **Denotes Color Code CALL 1-800-822-8037 FOR ASSISTANCE ARDTC REV 07 07/21/14 www.mayline.com...
- Page 2 Insert Wood Dowels (A) into Front PARTS LIST Panel (K), Side Panels (H & J). Insert Cams (C) into the Front Panel (K) and Side Panels (H & J). Install Cam Posts (B) into threaded inserts in Side Panels (H & J). Attach Front Name Part Name...
- Page 3 Place Top (G) onto base and lock in place by turning Cams (C). Apply Cam Stickers (D) onto exposed Cams (C). Apply Foam Tape (F) to bottom edge of Side Panels (H & J), and Modesty Panel (K). Apply Cam Stickers (E) over unused holes in End Panels (H or J).
