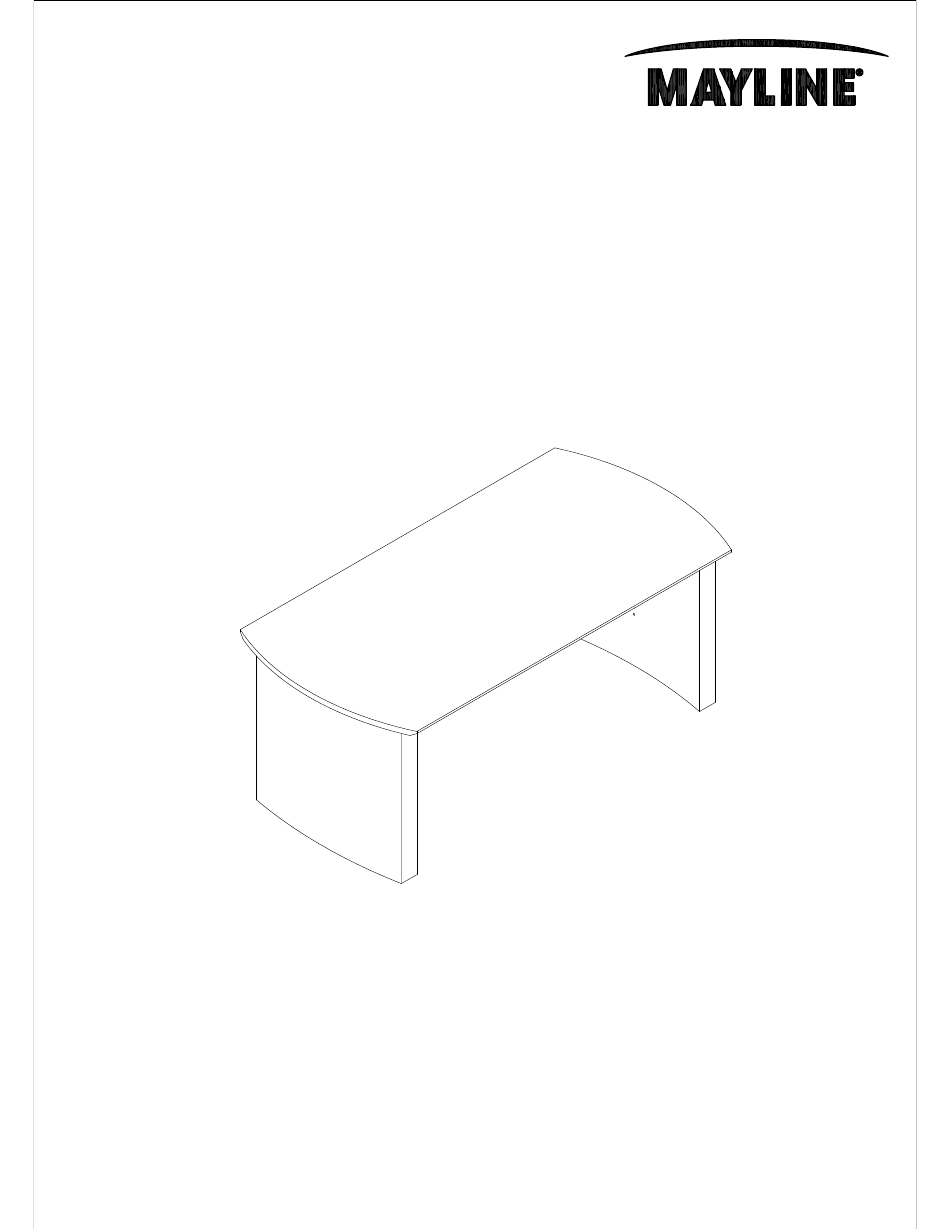

- Page 1 Medina Series Desk - Height Adjustable Model No. MNDTHA72 / 63 ASSEMBLY INSTRUCTIONS CALL 1-800-822-8037 FOR ASSISTANCE P/N MNDTHA REV 2 7/18 www.mayline.com...
-
Page 2: Parts List
PARTS LIST MNDTHA Spare Spare Name Part Name Part Qty. Qty. M6 x15mm Cam Lock REALS102** M6 x 33mm Cam Sticker Corner Bracket Cam Post Wood Dowel Allen Wrench 5mm 17 1 Wire Management 4 x 16mm Tray MNDTHAHB Allen Wrench 4mm Items with HB are in hardware box. - Page 3 PARTS LIST MNDTHA Name Part Qty. Name Part Qty. Top w/ Frame Fixed Panel Modesty Panel PARTS LIST MNDHA Name Part Qty. Name Part Qty. Right Leg Leveler Left Leg ABDBHAHB Items with HB are in hardware box.
- Page 4 PARTS LIST Z549 Spare Spare Name Part Name Part Qty. Qty. Power cord 5 x 20mm Controller Control box 4 x 14mm NOTE: Carton Contents ① . MNDTHA72/ MNDTHA63 - Top, 2 Panels 2 Wire Management trays w/ hardware. ② . 2 Legs with levelers.
- Page 5 Review ALL instructions before beginning assembly. These instructions are provided to avoid problems that may occur from improper assembly or installation. Mayline and/or its distributor are not responsible for failure resulting from improper assembly or installation of this product. Moreover, all warranties are void for failure to follow these assembly instructions.
- Page 6 Insert Wood Dowels (D) and Cam Locks (A) into the Fixed Panel (M). Install Cam Posts (C) into threaded inserts in Legs (P and Q). Attach Fixed Panel (M) to Legs (P and Q) by turning Cam Locks (A). Attach Stickers (B) over Cams (A).
- Page 7 Install the Control Box (S) to Top (K) using Screws (R). Install the Bracket (I) to the Modesty Panel (L) and Top (K) using screws (E). Carefully rotate the Top (K) w/ Panel and place on the Legs (P and Q). TWO PEOPLE REQUIRED...
- Page 8 Install the Top (K) to the Legs (P and Q) by Screw (H) with Wrench (J); Screws pass thru Frame into Actuator Housing on Legs. Install Memory Controller (W) in desired location on front edge of top and fasten with Screws (T). Uninstall the Frame Mounting Screws, Qty 2, with Wrench (F).
- Page 9 Connect Controller (W) into the correct port, and Motor Cables from Legs into Ports M1 and M2, in Control Box (S). Connect Power Cord (U) into Control Box (S). Plug Power Cord (U) into outlet and proceed with Controller Initialization on following page. Motor Cables...
-
Page 10: Troubleshooting
Make sure no obstacles are in the desk's path. Make sure the desktop is not touching any walls. Make sure all cords are appropriate length to accommodate the change in height. IMPORTANT: You must INITIALIZE the desk prior to first use. Controller Initialization- Press and hold the Down button on the controller until the desk reaches its lowest height, slightly raises, and stops.
