CATALOG No:
C36TR
C42TR
C48TR
NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
COMPONENTS:
REF. #
QTY.
1
1
2
1
3
2
4
1
5
1
6
1
HARDWARE BAG (PART No. A7801)
REF. #
QTY
DESCRIPTION
E1
12
#10 x 3/4 SCREW
E2
6
#10-24 x 3/8 SCREW
E3
6
#10-24 KEPS NUT
E4
2
GLIDE
E5
10
#10-32 x 1/2 SCREW
E6
2
UPPER HINGE
ASSEMBLY INSTRUCTIONS
CS

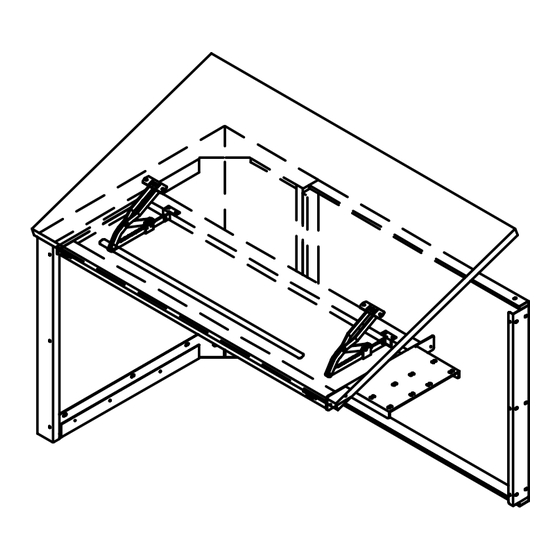

TILT TOP RETURN
II
When ordering components, specific color and/or size information may be required.
Contact a Mayline Customer Service Representative.
DESCRIPTION
WORK SURFACE
MODESTY PANEL
LEG ASSEMBLY
FRAME ASSEMBLY
PENCIL STOP
BRACKET
PART No.
X11*
X147*
T2*
Q630*
X204*
B194*
PART No.
CALL~~**
CALL~~**
** Denotes Color Code
C731**
~~Denotes Size
CALL~~**
600195
B7805**
*for individual part , order that part number
REF. #
QTY
DESCRIPTION
E7
2
LOWER HINGE
E8
2
RUBBER BUMPER
E9
1
RIVET
E10
1
CAP
E11
2
LIFT ASSEMBLY
E12
4
#10-32 x 1/2 FLAT
HEAD SCREW
(1)
1-800-822-8037
PART No.
B195*
D37*
R25*
F10*
V120A*
X191*
Advertisement
Related Manuals for Mayline CSII TILT TOP RETURN
Summary of Contents for Mayline CSII TILT TOP RETURN
- Page 1 C42TR C48TR NOTE: Please count and inspect all pieces before disposing of any carton or packing materials. When ordering components, specific color and/or size information may be required. COMPONENTS: Contact a Mayline Customer Service Representative. 1-800-822-8037 REF. # QTY. DESCRIPTION PART No.
- Page 2 1. Place the Leg (3) on a clean surface. Position the Modesty Panel (2) next to the Leg with the four slots toward the floor. Attach the Modesty panel to the Leg with three Screws (E2) and three KEPS Nuts (E3). DO NOT TIGHTEN the screws at this time.
- Page 3 7. Align the holes in the assembled Leg and Modesty Panel from Step 1 with the end panel on the previously assembled furniture. Attach using three #10-24 x 3/8 Screws (E2) and three KEPS Nuts (E3). 8. Attach the two Lift Hinges (E11) to the Frame Assembly using two Screws (E12) per Hinge.
- Page 4 12. Place the Work Surface (1) face down onto a clean surface. Position the Upper Hinge (E6) with the hinge tab toward the bottom edge. Secure with six #10 X 3/4 Screws (E1). 13. With the Pencil Stop (5) removed, insert the Rivet (E9) into the center hole in the groove.
