BYOC Large Beaver Triangle Instructions Manual page 9

Hide thumbs

Advertisement

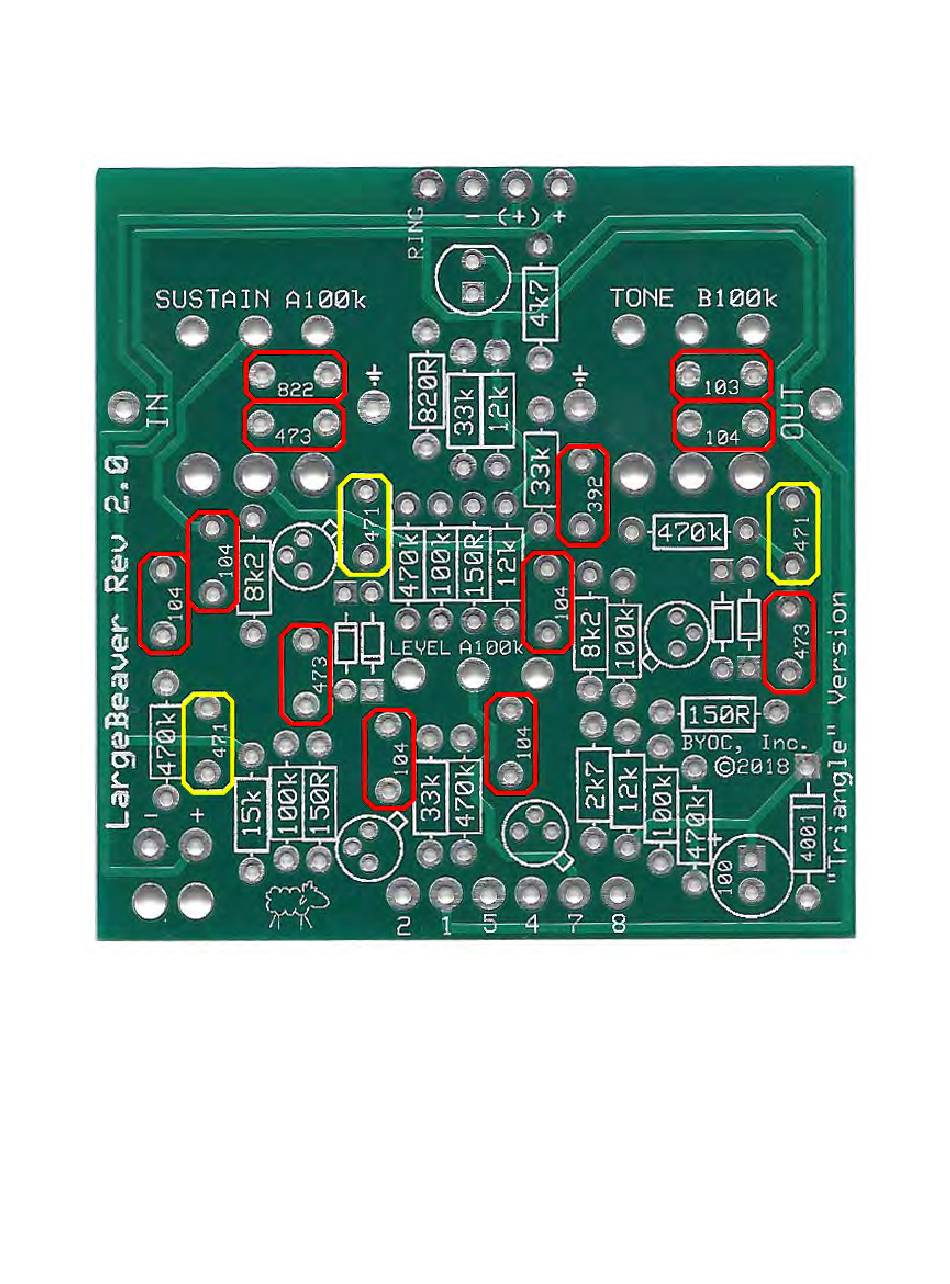

Step 3: Add the film and ceramic disc capacitors. These are not polarized
and can go in either orientation. The capacitors highlighted in yellow are the
ceramic disc capacitors.
