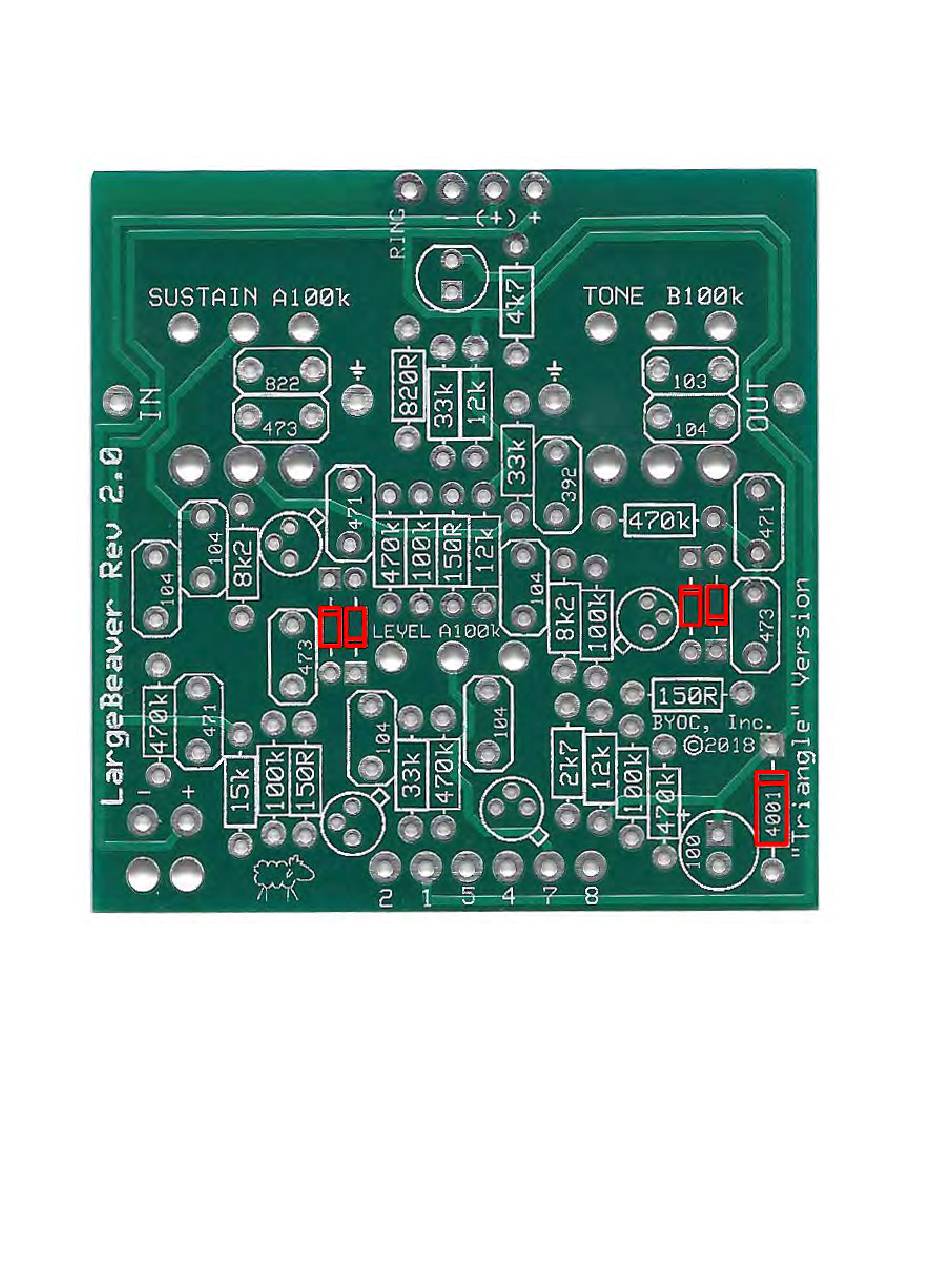

Step 2: Add the diodes. Be sure to match the end of the diodes with the
stripe to the layout on the PCB. The striped end should go in the square
solder pad.
