IFP300
iRover for Interactive Flat Panels

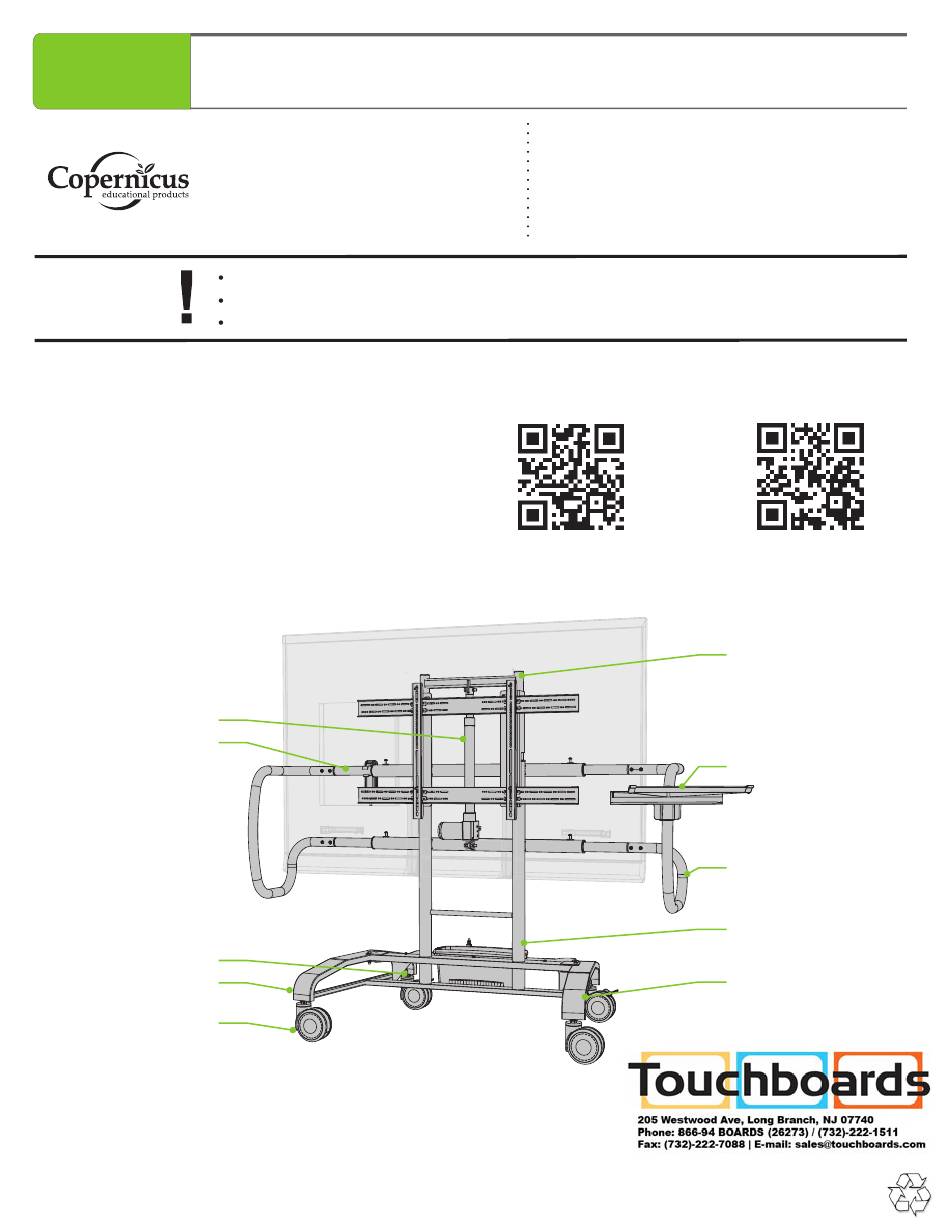

Assembly Guide
IFP300_2016_B
Check out our other products online at
www.copernicused.com
WARNING
Supported Flat Panels include
SMART E70
SMART 6065
For complete list see compatibility chart on-line
Additional parts required (sold separately):
Chief P-Series Universal Interface Bracket - PSBUB, PSBUS
Hidden Items:
Electric Lift Remote (1)
Power Strip (1)
Tub holder (1)
Electric Lift (1)
Protective Handle
Extension (4)
Small Open Tub (1)
Base Foot Right (1)
5" Caster:
Locking Twin Wheel (2)
Non-locking Twin Wheel (2)
2
This product is meant to be assembled by an adult.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
(sold separately)
:
Shown with SMART 6065 Flat Panel
IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
Check out some of our
other great products!
www.copernicused.com
Need Support?
Have a Question?
Email our Customer Support
Moving Frame (1)
Laptop Tray (1)
Protective Handles (2)
Base Frame (1)
Base Foot Left (1)
Advertisement
Related Manuals for Copernicus iRover2 IFP300
Summary of Contents for Copernicus iRover2 IFP300
- Page 1 Small Open Tub (1) Base Foot Left (1) Base Foot Right (1) 5” Caster: Locking Twin Wheel (2) Non-locking Twin Wheel (2) Shown with SMART 6065 Flat Panel IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 2 Time To validate your warranty, submit the ON-LINE form at www.copernicused.com Component Frame Enter a drawing to win a Copernicus Product for your classroom at the same time! Warranty Warranty Warranty IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 3 72 consecutive hours. Turn off power strip before unplugging. Power Strip Specifications Read the electrical specifications of any electronic equipment you are using with your Copernicus products. Failure to read these specifications and follow their instructions could result in damage to your equipment or personal injury.
- Page 4 Caster Laptop Tray Power Strip Small Tub 20 lbs Weight Limit (CC4070) 5 lbs Weight Limit Electric Lift Tub Holder (32094) ... hardware on following page IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 5 (not to scale) (not to scale) (not to scale) (700012) Metric hardware for Protective Handles M6 x 30mm Screw M6 Lock Washer M6 Barrel Nut (43230) (43273) (43272) IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 6 My Flat Panel isn’t working, who should I call? Please call the reseller that you bought the product from first Email our Tech Support Service (reseller information can be found on your packing slip). IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 7 Install locking casters on back of unit. Tighten using supplied Caster Wrench. Keep wrench with unit. Casters must be tightened every 6 months for proper maintenance. Front Back IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 8 Moving Frame faces front of unit Actual Size: You will need: (Not to Scale) Electric Lift Install Electric Lift Note orientation of the Electric Lift Tighten bolts IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 9 Handle Right Extensions Install Protective Handles Secure handles with screws after mounting your flat panel Loosen screws before and routing cables, see pg 13 installing handles IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 10 Upright Brackets. Align the Horizontal Brackets in the middle of your flat panel. Use the screws that come with your Chief mount. Use the appropriate slots based IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 11 (Not to Scale) 2-Person Task Attach Flat Panel to Cart Place the Chief Mount through the four teardrop openings and lower into place. Install safety screws and tighten. IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 12 Actual Size: You will need: (Not to Scale) Connect Electrical Lift Power Cable & Remote Use remote hook to hang remote on cart IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
- Page 13 Hook & Loop Straps Actual Size: You will need: (Not to Scale) Laptop Tray 20 lbs Weight Limit Using Laptop Tray In-use Position Stored Position IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
-
Page 14: Tips For Use
- connect the Electric Lift (see assembly step 10) - plug in the power strip and turn it on - use buttons on remote to raise and lower flat panel IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc. - Page 15 Interactive Flat Panel Cart through a door ensure that the unit is sitting at the lowest height to avoid hitting the top of the door frame. IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
-
Page 16: Care And Maintenance
For more information on your iRover & its proper use & maintenance, please visit our website at www.copernicused.com or call us at 1-800-267-8494. Check out some of our Need Support? other great products! Have a Question? www.copernicused.com Email our Customer Support IFP300 - Version B - Released August 23, 2016 - Copernicus Educational Products Inc.
