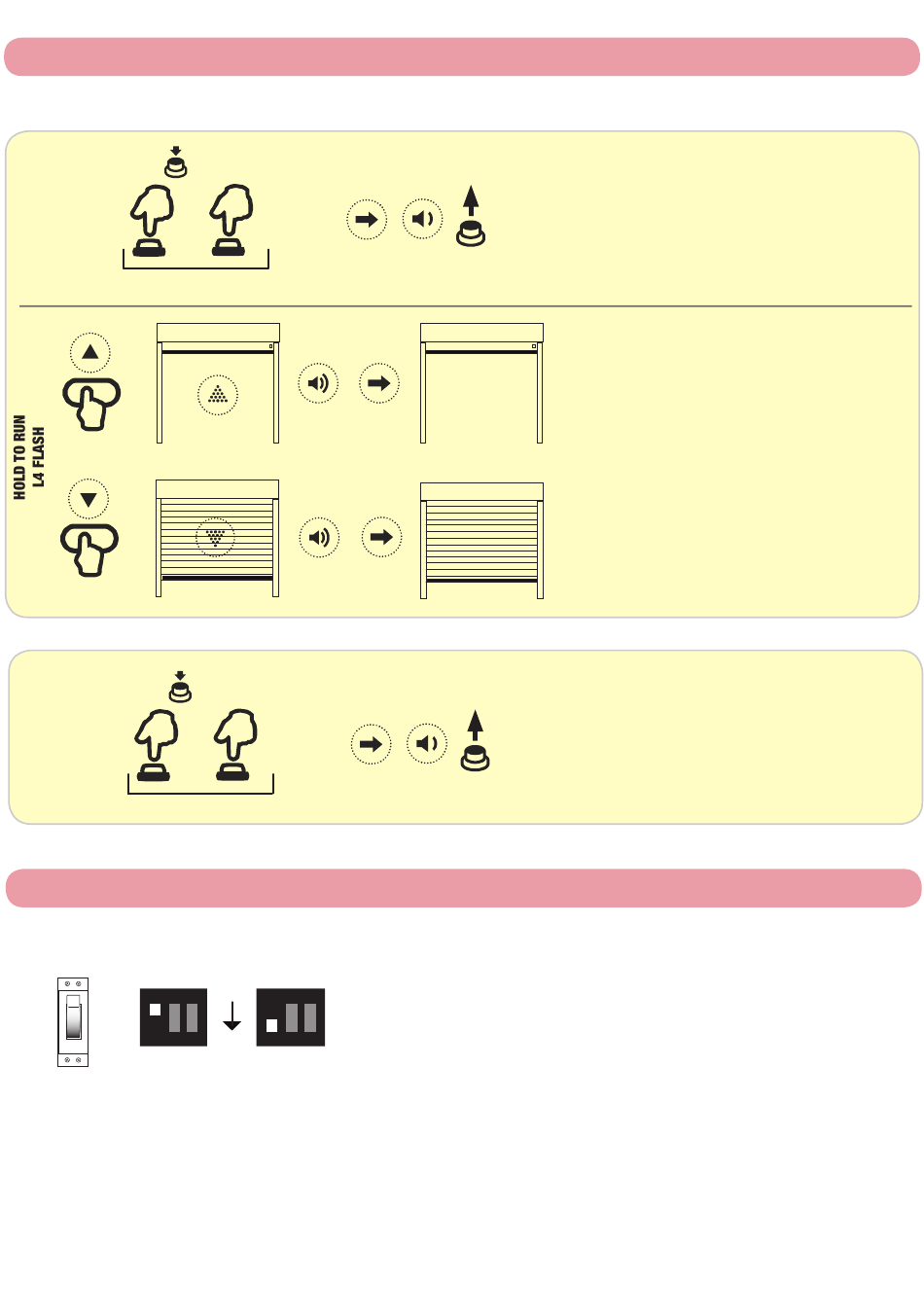

3.1 Limit switches configuration
Procedure only with hold to run commands.
ACTIVATION
P1
+
3 s
hold-to-run
hold-to-run
DEACTIVATION
P1
+
3 s
3.2 Deactivation of wireless safety system
This function is possible ONLY within 30 seconds from the power on of the control unit.
• Switch the unit on and move DIP1 to OFF within 30 seconds.
ON
ON
1
2
3
ON
• Press P1 button for 5 seconds and hold it down
The control unit will emit 6 beeps if the system has been correctly deactivated.
It is possible activate the safety system again, moving DIP1 from OFF to ON within 30 seconds from
power-on. After keeping pressed P1 button for 5 seconds, the control unit will emit 7 beeps.
keep
pressed
P2
keep
pressed
P2
ON
1
2
3
to
OFF
The safety devices are excluded!
Warning:
Press together P1 and P2 and keep them pressed
for 3s. The buzzer makes one beep.
Press together P1 and P2 and keep them pressed for
3s or wait time out time of 90s from the last button
pression. The buzzer makes one beep.
By default DIP1 is ON (system activated).
10
Factory setting: ACTIVATED
Open the door (in hold-to-run mode) in order
to set up the upper limit switch.
Close the door (in hold-to-run mode) in order
to set up the down limit switch.
