2.4.2 USB interface

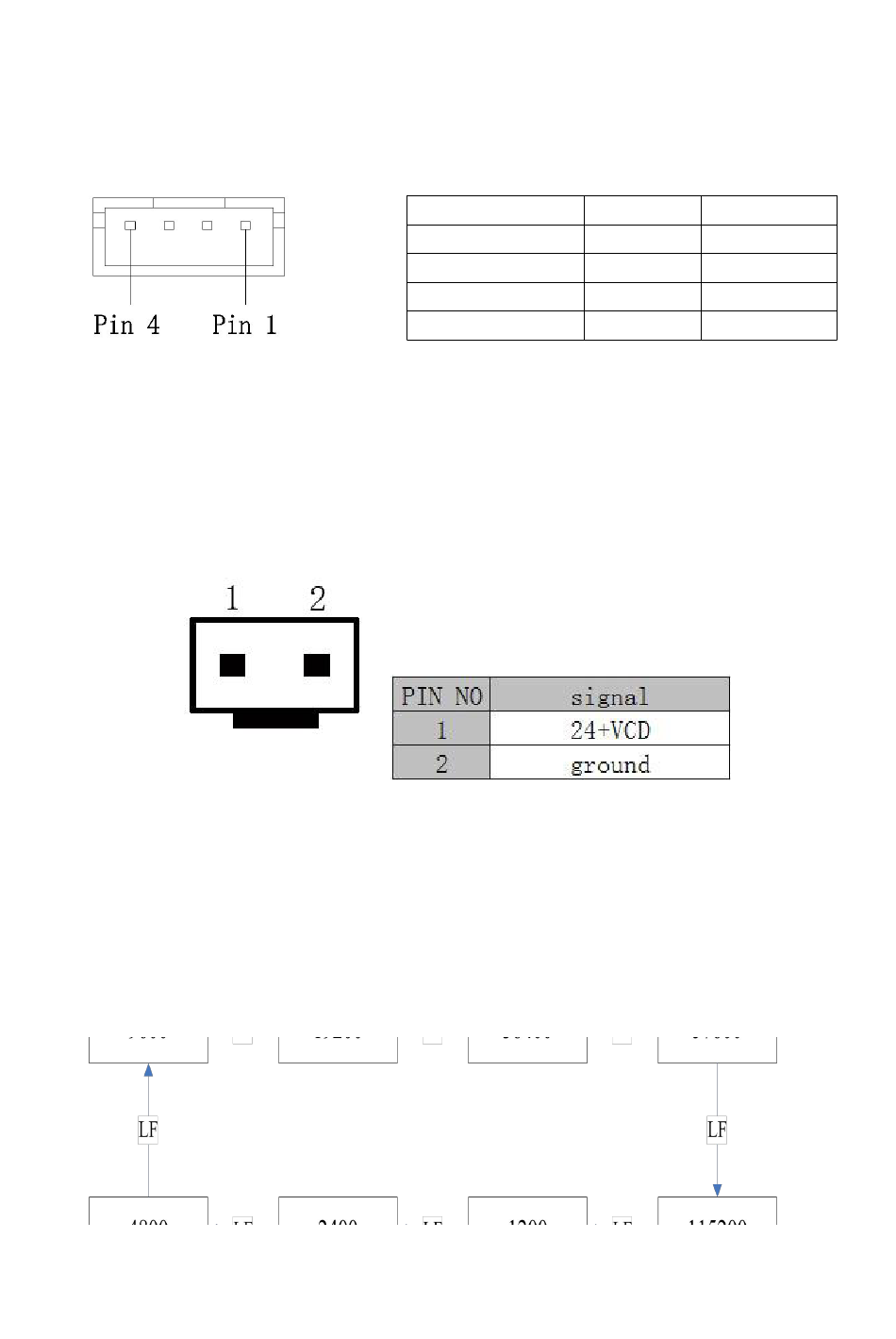

The USB interface of the SP-RME5 printer is PH-4A interface, outer

appearance and pin assignment is shown in Figure 2-6:

SP-RME5 printer uses the external power supply adopter as 24V±10％、 2A,

power socket is 2114S-02 model, as Fig. 2-7 shows:

The parallel interface of SP-RME5is compatible with CENIRONICS standard，

and the interface socket is 26-pin flat cable socket,or its substitute for connecting

with it .the pin order if parallel port is showed as below:

PIN Assignment

Figure 2-6: USB socket and pin definitions

Fig.2-7: Power Socket

Function

V BUS

Data-

Data+

GND

Reference

Power + 5V

Data -

Data +

Ground
