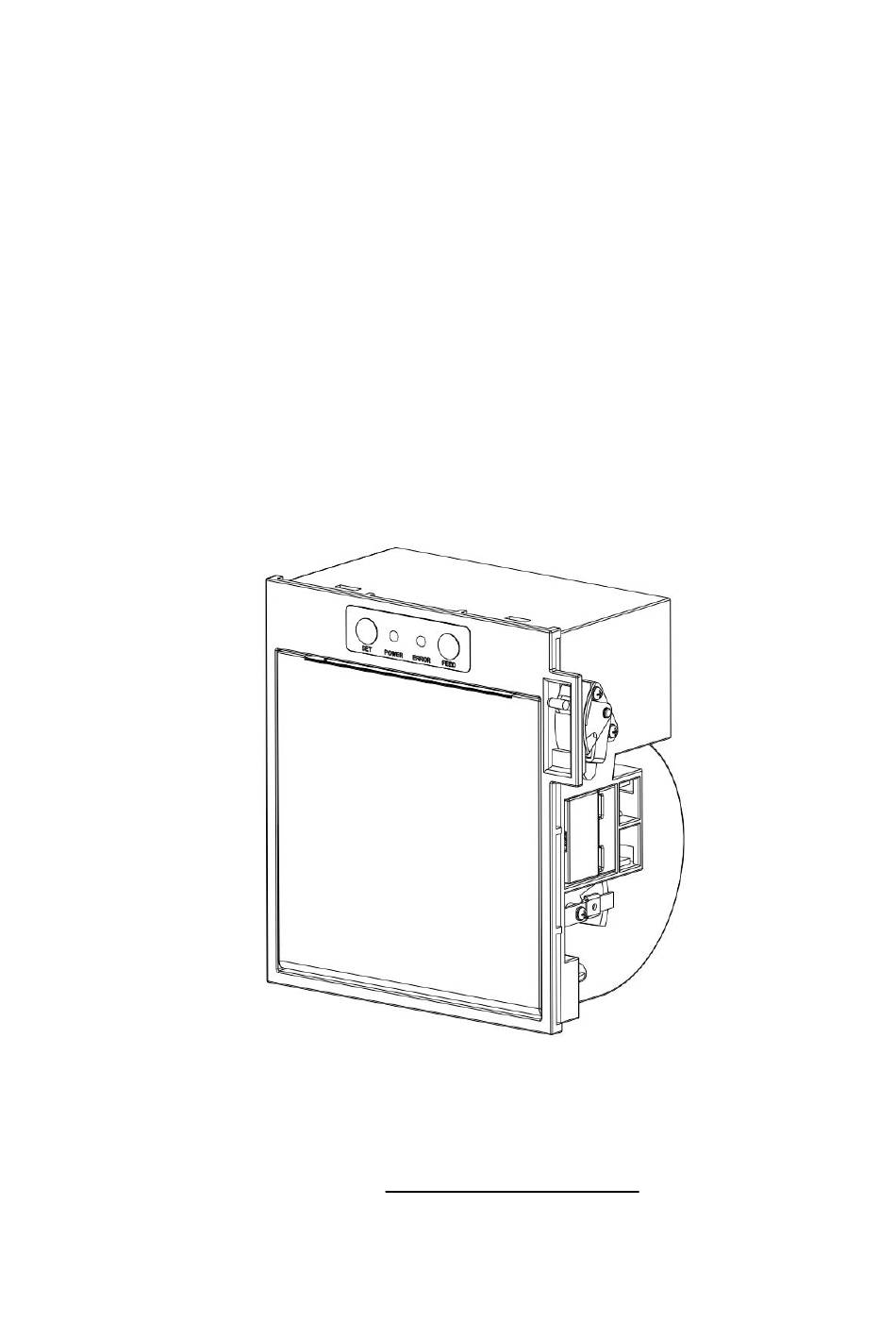

  • Page 1 SPRT ® SP-RME4 Thermal Receipt Printer User’s Manual Ver 1.04 Beijing Spirit Technology Development Co.,Ltd. www.sprt-printer.com...
  • Page 2: Table Of Contents

    Content Introduction..............................1 Chapter 1 Feature and Performance.......................2 1.1 Print Performance........................2 1.2 Print Paper............................ 2 1.3 Print Font............................2 1.4 Interface............................3 1.5 Print Control Commands......................3 1.6 Power Supply..........................3 1.7 Operation Environment....................... 3 1.8 Outline Dimension........................3 Chapter 2 Operation Specification......................6 2.1 Printer Appearance........................
  • Page 3: Introduction

    Introduction RME4 printer is a new type line thermal printer, which features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. The RME4 printer is small in size, easy to operate and widely used.
  • Page 4: Chapter 1 Feature And Performance

    Chapter 1 Feature and Performance 1.1 Print Performance ● Print method: direct thermal ● Print paper width: 79.5±0.5mm/57.5±0.5mm ● Print density: 8 dots/mm, 576 dots/line ● Print speed: max 170mm/sec. ● Reliability (1) Print head life: 100km Using condition: *Print 12 × 24 ANK characters, print 50 lines each time, intermittent print repeatedly.
  • Page 5: Interface

    24×24 dots, 3.00(W)×3.00(H)mm. 1.4 Interface ● RS-232C Serial Interface: IDC10 socket, supports XON/XOFF and DTR/DSR protocols. Baud rate:1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps adjustable. Data structure: 1start bit + (7 or 8) data bits + 1 stop bit. Parity checking: no parity or odd, even parity optional.
  • Page 6 Outline dimension: 132mm×125.5mm×87mm(L x W x H) Depth:81.5mm Please check outline dimension in the below figure 1-1: Fig.1-1 SP-RME4 Outline dimension...
  • Page 7 Installing hole dimension of customer’s panel, refer to figure 1-2: Fig.1-2 SP-RME4 Installation dimension...
  • Page 8: Chapter 2 Operation Specification

    Chapter 2 Operation Specification 2.1 Printer Appearance About the name of each part of printer, please refer to figure 2-1:...
  • Page 9: Installation Of The Printer

    Fig.2-1 Printer Appearance 2.2 Installation of the printer Embedded printer in the installing hole of customer’s panel. open the printer paper cover, clockwise to tighten the two screws to complete the installation of the printer. Please refer to Figure 2-2. Clockwise rotation...
  • Page 10: Paper Installation

    2.4 Interface 2.4.1 Serial Interface The serial interface of SP-RME4 printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses IDC10 socket. The pin order of the serial port is as Figure 2-3 shows:...
  • Page 11 Note: (1)“Source” denotes the source that signal come from; (2)Logical signal level is EIA. The baud rate and data structure in serial interface mode is 9600bps, 8-bit data bits, no parity bit and 1 stop bit. The serial interface of SP-RME4 can be...
  • Page 12: Usb Interface

    The USB interface of the RME4 printer is mini-USB interface, outer appearance and pin assignment is shown in Figure 2-5: Fig 2-5. Mini-USB socket and pin definitions 2.4.3 Power Connection SP-RME4 printer uses the external power supply adopter as 24V±10%、2A, power socket is 2114S-02 model, as Fig. 2-6 shows:...
  • Page 13: Indicator Light, Buzzer And Buttons

    Fig.2-6 Power Socket 2.5 Indicator Light, Buzzer and Buttons There are two buttons, one inner buzzer and two indicator lights for RME4. 【SET】is setting button, 【SET】is used with 【FEED】button to set parameters. For details, please refer to “2.9 Setup of printer parameter”. 【FEED】...
  • Page 14: Normally Working Status

    Error type Description Types of ERROR flashing Unrecoverabl LED flashes once : Memory read - e error write errors LED flashes twice: Over-voltage LED flashes three times: the voltage is lack LED flashes four times : CPU Execution error (wrong address ) LED flashes five times : UIB error LED flashes eight times : temperature detection of circuit is...
  • Page 15: Self Test

    2.7 Self test The self-test will check the condition of printer, if the printer prints out the self-test receipt correctly, it means the printer works normally. Otherwise it needs to be repaired. The self-test will print out: Manufacturer name, printer model, software version, interface type, default value of printer parameters, 96 ANK characters in ASCII code, content of default codepage (if language is set English) or name of Chinese character library (if the language is set Chinese), barcode type.
  • Page 16: Setup Of Printer Parameter

    Hexadecimal Dump To terminate hexadecimal dump, Press FEED button three times. This means the printer has entered hexadecimal printing mode, and under this mode,all of the input will be printed out as hexadecimal number. Paper will feed one line with single-click of “FEED” button, after 3 times, it will print out “*** Completed ***”, and exit hexadecimal printing mode.
  • Page 17: Appendix A: Parameter Setting

    APPENDIX A: Parameter Setting This appendix is the method of setting default parameters of printer by buttons. Setting instruction: Using 【SET】 button to choose setting item. Pressing this button once, the setting item will go to the next and also print out the current value of this item.
  • Page 18 Font: FEED 12×24 9×17 FEED Density: FEED FEED Middle High FEED Buzzer: FEED FEED FEED Error ON ALL ON Cut ON FEED Print lack of paper: FEED FEED Black mark: FEED FEED...
