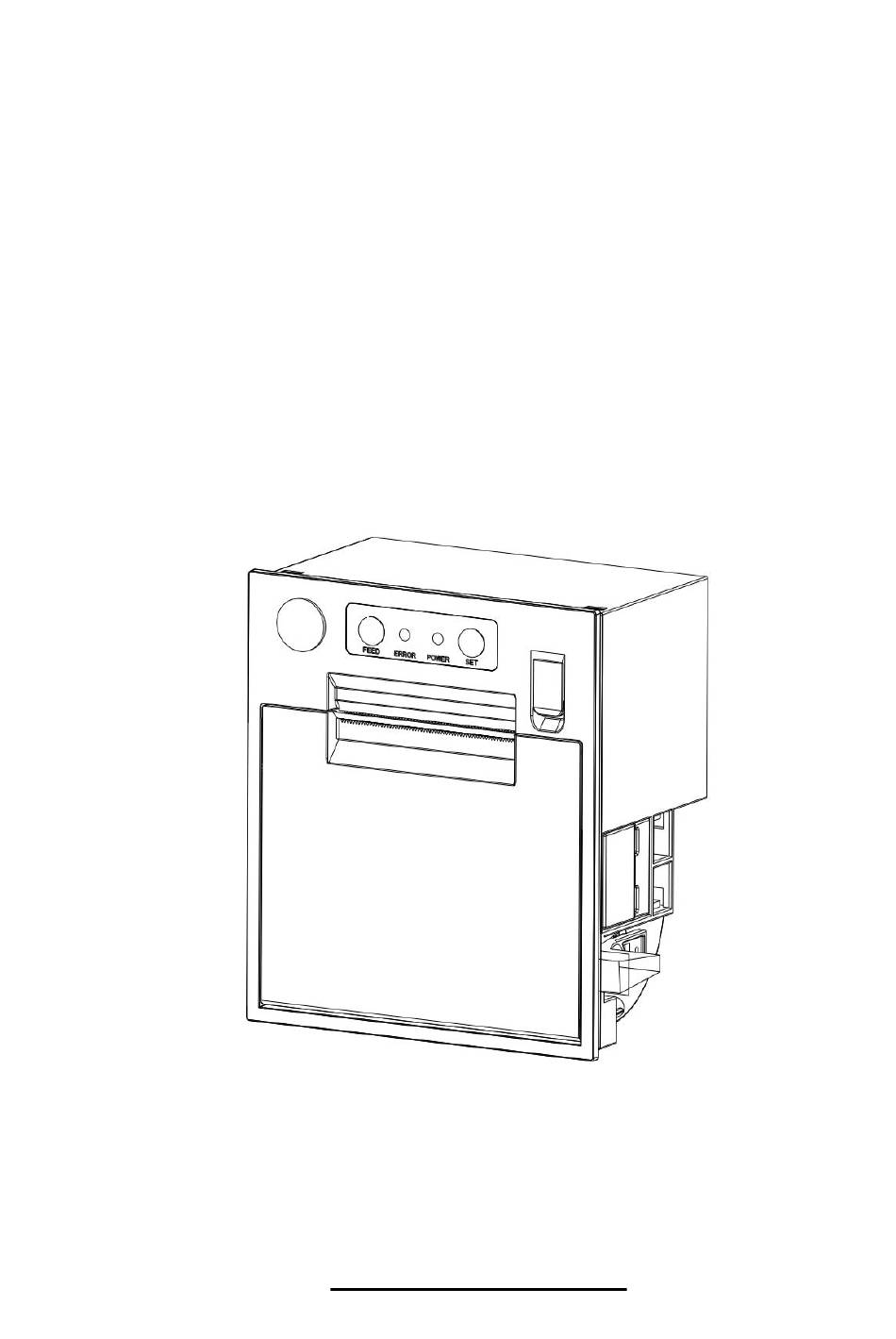

- Page 1 SPRT ® Thermal Printer User Manual (SP-RMD17) (Ver 1.04) Beijing Spirit Technology Development Co.,Ltd. www.sprt-printer.com...
-
Page 2: Table Of Contents
CONTENT Introduction..............................1 Chapter 1 Feature and Performance......................1 1.1 Print Performance...........................1 1.2 Print Paper..........................1 1.5 Print Control Commands.......................2 1.6 Power Supply.......................... 2 1.7 Operation Environment........................2 1.8 Outline Dimension and installation size..................2 Chapter 2 Operation Specification..................... 3 2.1 Printer Appearance........................ 3 2.2 Installation of the printer......................6 2.3 Paper Installation..........................6 2.3.1 Paper Loading........................ -
Page 3: Introduction
Introduction RMD17 printer is a new type line thermal printer, which features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. Chapter 1 Feature and Performance 1.1 Print Performance ●... -
Page 4: Print Control Commands
1.4 Interface ● RS－232C Serial Interface: IDC10 socket, supports XON/XOFF and DTR/DSR protocols. Baud rate:1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps adjustable. Data structure: 1 start bit + (7 or 8) data bits + 1 stop bit. Parity checking: no parity or odd, even parity optional. ●... -
Page 5: Chapter 2 Operation Specification
Pic.1-1 RMD17outline dimension drawing Chapter 2 Operation Specification 2.1 Printer Appearance About the name of each part of printer, please refer to picture 2-1:... - Page 7 Fig.2-1 Printer Appearance...
-
Page 8: Installation Of The Printer
2.2 Installation of the printer Embedded printer in the installing hole of customer’s panel. open the printer paper cover, clockwise to tighten the two screws to complete the installation of the printer . Print installation shown in Figure 2-2. Fig.2-2 Printer installation pic. 2.3 Paper Installation 2.3.1 Paper Loading RMD17 adopts 57.5mm±0.5mm width thermal paper roll. -
Page 9: Interface
2.4 Interface 2.4.1 Serial Interface The serial interface of SP-RMD17 printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses IDC10 socket. The pin order of the serial port is as Fig.2-3 shows: Fig.2-3 Pin Order of Serial Port The pin assignment of serial interface is shown in Fig. -
Page 10: Usb Interface
The baud rate and data structure in serial interface mode is 9600bps, 8-bit data bits, no parity bit and 1 stop bit. The serial interface of SP-RMD17 can be connected to standard RS-232C interface. When it is connected to IBM PC or its compatible machine, connection can accord to Fig.2-5. -
Page 11: Power Connection
2.4.3 Power Connection SP-RMD17 printer uses the external power supply adopter as 12V±10％,2A, power socket is 2114S-02 model, as Fig. 2-7 shows: Signal Fig.2-7: Power socket and pin assignment 2.4.4 Parallel interface connection The parallel interface of RMD17is compatible with CENIRONICS standard,and the interface socket is36-pin flat cable socket,or its substitute for connecting with it .the pin order if parallel port... -
Page 12: Bluetooth Connection
The initial name of the printer is D17 BT Printer, the initial password is ‘1234’; users can change the printer name and password by using<SP-RMD17 Setting Tools> software. Please see the details in help file of <SP-RMD17 Setting Tools>. -
Page 13: Cash Drawer Interface
keep green when Bluetooth disconnected. 2.4.6 Cash Drawer Interface The cash drawer interface of RMD17 printer is RJ-11, 6 pin socket, as below: Pic.2-8, cash drawer port The pin assignment of the cash drawer interface is as follows: Pin No. Signal Direction Chassis Ground... -
Page 14: Power On The Printer
is power on. The red ERROR light is error status indicator. It is off when the printer works normally; while it flashes or persistently lights when the printer has abnormal alarm. If ERROR indicator flashes or persistent lights and the buzzer sounds, it means the printer has error. -
Page 15: Self Test
the printer and the ERROR indicator flashes twice, then indicator off. The printer enters into the normal working mode. 2.7 Self test The self-test will check the condition of printer, if the printer prints out the self-test receipt correctly, it means the printer works normally except interface with host. Otherwise it needs to repair. -
Page 16: Appendix A: Parameter Setting
Notice: RMD17 only support USB interface and parallel interface can support program upgrading online. Appendix A: Parameter Setting This appendix is the method of setting default parameters of printer by buttons. Setting instruction: Using 【SET】 button to choose setting item. Pressing this button once, the setting item will go to the next and also print out the current value of this item. - Page 17 Choose black mark: FEED Closed Open FEED Printing direction: FEED Forward Reverse FEED Command set: FEED FEED FEED SPMP Other ESC/PO FEED...
