- Page 1 SPRT ® SP-RMT17 Portable Thermal Printer (Ver.1.00) User’s Manual Beijing Spirit Technology Development Co., Ltd www.sprt-printer.com...
-
Page 2: Table Of Contents
Content NOTICE........................1 Chapter 1 Outer Appearance and Model No............3 1.1 Outer Appearance..................3 1.2 Model No......................3 Chapter 2 Characteristic Specification..............4 2.1 Printing Specification .................. 4 2.2 Physical Parameters..................4 2.3 Environment Parameters................4 2.4 Other Specification..................5 Chapter 3 Operation Method..................6 3.1 Using Preparation..................6 3.1.1 Battery Installation................6 3.1.2 Paper Roll Installation.................6... -
Page 3: Notice
NOTICE Please read this manual carefully before using the printer. Notice of Safety Be sure to use the specified battery and power supply provided by our company. Otherwise it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. Don’t put battery into the fire, don’t disassemble or heat the battery, don’t be short circuit, it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. - Page 4 between -20℃ and 60℃, and the relative humidity is between 10% and 95%. If the printer will be stored for a long time, please be sure to take out the battery, otherwise may damage the battery and printer. Statement This is grade A product, which may lead to wireless radio interference.Under this circumstance, may need users to apply practical measures for this interference.
-
Page 5: Chapter 1 Outer Appearance And Model No

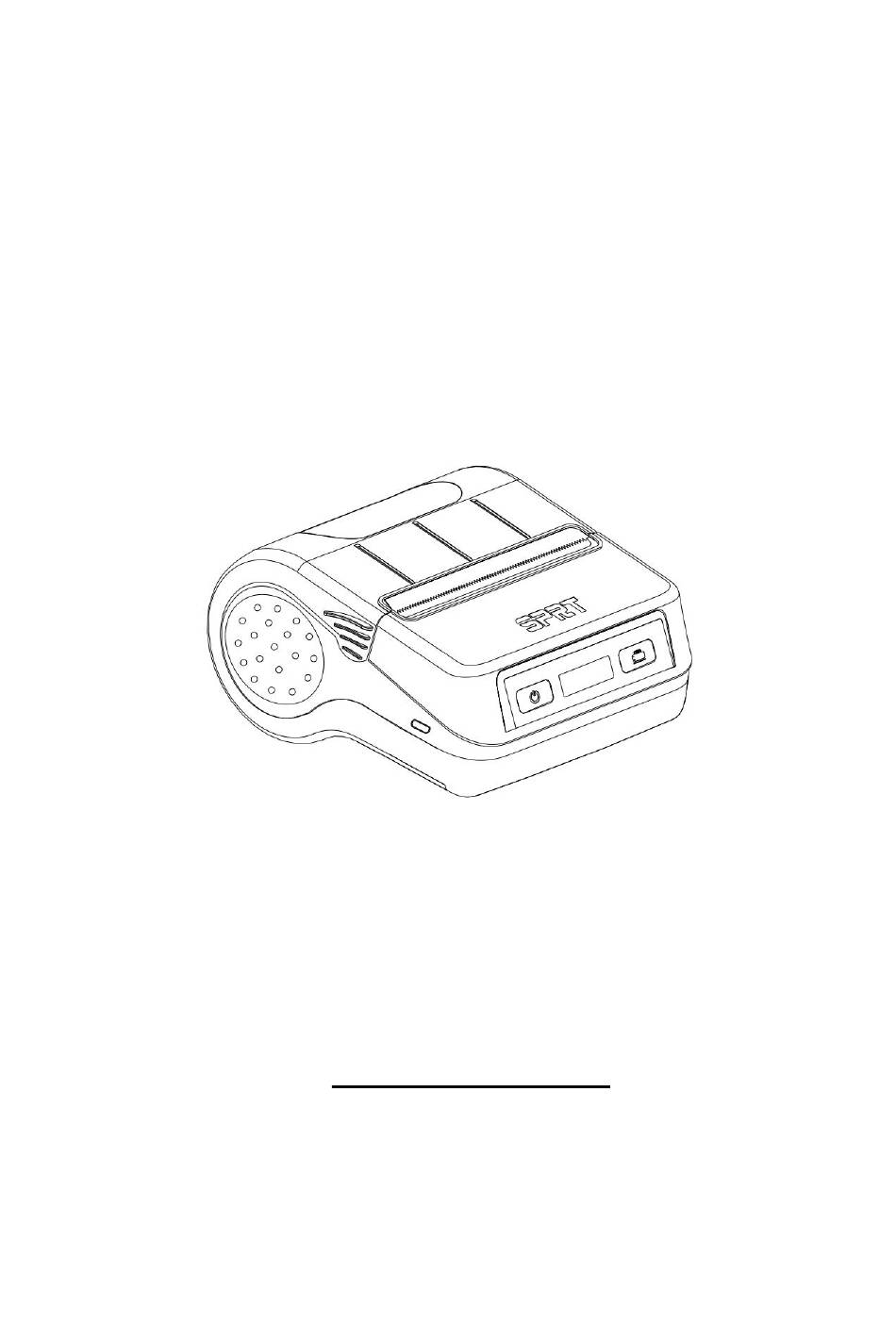

Chapter 1 Outer Appearance and Model No. 1.1 Outer Appearance 1.2 Model No. Model Ports SP-RMT17 SP-RMT17BTDM USB and Bluetooth... -
Page 6: Chapter 2 Characteristic Specification
Chapter 2 Characteristic Specification 2.1 Printing Specification Printing Method: Thermal line Paper Width: 79.5mm±0.5mm, 57.5±0.5mm, 44±0.5mm, 30±0.5mm Effective Printing Width: Paper Width Effective Printing Width 80mm 72mm 58mm 48mm 40mm 37.5mm 30mm 27mm Resolution: 8dots/mm (203dpi) Dots per line: Paper Width Dots per line 80mm 576 dots/line... -
Page 7: Other Specification
Black Mark Location: available (details please see 4.2 pre-printed black mark manual). Printing Control Command: ESC/POS compatible command set (refer to<SP-RMT17 Printer Developer Manual >). Power Supply: 7.4V 1400mAh rechargeable polymer lithium battery. Low Power Alarm: When the electric of battery will run out, the battery icon in the LCD flashes. -
Page 8: Chapter 3 Operation Method
Chapter 3 Operation Method 3.1 Using Preparation 3.1.1 Battery Installation Put the battery into the battery slot from the side with pins and press the other side into case. (as below Fig.) 3.1.2 Paper Roll Installation 1. Hold both sides of the paper case cover, and open it. (Figure 1 and 2), Keep your hands dry in case of slipping. -
Page 9: Adjustable Baffle (Change Different Paper Width)
3.1.3 Adjustable baffle (change different paper width) ① Unlock key ② Lock the slider ③ Drag hole (Figure Fig 4 ◆Press the unlock button ①, the lock slider bounces to unlock; ◆Drag buttonhole ③ with your finger to adjust the baffle to the proper position according to the paper width;... -
Page 10: Other
3.1.4 Other Switch door description: Keep left and right synchronized when opening or closing the paper compartment cover. Abnormal operation instructions: Paper jam is not allowed at the paper exit. Placement direction: It is recommended to print flat or flat when printing. 3.2 Basic function usage Support two Paper Types: Thermal paper, Black mark paper. -
Page 11: Hexadecimal Printing
printer starts to feed the paper, release the 【FEED】 button to stop the paper feed; For the black mark paper, press the 【FEED】 button to start the printer. Take the paper to the black mark and stop the paper. If it is not the black mark paper, the paper will automatically stop feeding after 30cm. -
Page 12: Printer Parameter Settings
press and hold the 【Power】 button. When you hear a short beep, quickly release the 【FEED】 button and the printer enters the program upgrade mode. At this time, the LCD displays the upgrade mode. Upgrade with the "UpdateFirmware" (PC side upgrade tool) upgrade tool. Note: Only the USB interface supports this mode of upgrade. -
Page 13: Printer Interface Connection And Printing
Bluetooth( IOS Bluetooth 4.0 and Android Bluetooth 2.0) . Power class is CLASS 2, effective communication distance is 10meters. The Bluetooth of the printer belongs to the slave device. The initial name of the printer is SP-RMT17 BT Printer, the initial password is ‘1234’; users can change the printer name... -
Page 14: Buzzer
Tools> software. Please see the details in file of <Setting Tool User Guide>. Before working, SP-RMT17 Portable Thermal Printer need to be pairing with primary device, matching begins with the host device. Usual matching course is as below: 1. - Page 15 ① When the icon is , it means there’s no Bluetooth connection; When the icon is , it means the Bluetooth is on connecting state. ② It shows the different paper type, 80mm, 58mm and 44mm and 30mm. ③ The current capacity level of printer battery icon. The different icons shows the current battery level.
-
Page 16: Chapter 4 Other Information
Chapter 4 Other Information 4.1 Command Programming Manual <SP-RMT17 Commands Manual> is a technical manual for engineer to develop printer utility, and users can claim our company for it. 4.2 Description of Black Mark Pre-print If user use pre-print black mark to locate the receipt, please be sure to abide by the following black mark pre-print regulation when print the black mark paper, if not ,it will cause that the printer can not identify the black mark. - Page 17 Appendix A Setting introduction: Open and close the paper cover to choose the setting. The setting moves to the next and shows on the LCD if the paper cover open and close once.【FEED】button used to choose the set value. When press it once , the setting moves to the next.
- Page 18 Font: Print density: Paper sensor sensitivity Setting: 80mm/58mm/44mm/30mm Paper Type Setting: Paper width setting:...
- Page 19 Power off Setting: Printing Direction Setting:...
