- Page 1 SP-RMD19 Thermal Panel Printer User’s Manual Ver 1.00 Beijing Spirit Technology Development Co., Ltd www.sprt-printer.com...
- Page 2 Statement The contents of this manual shall not be changed without the consent of SPRT. Beijing Spirit Technology Development Co., Ltd. reserves the right to change the product in terms of technology, parts, software and hardware. For further comprehensive product information related to the product, contact Beijing Spirit Technology Development Co., Ltd.
-
Page 3: Table Of Contents
Content Introduction ..............................3 Chapter 1 Characteristics and Performance Indicators ................3 1.1 Main features ..........................3 1.2 Performance indicators ........................4 Chapter 2 Installation Instructions ....................... 5 2.1 Printer Appearance .........................5 2.2 Dimension ............................ 5 2.3 Paper Roll Loading ........................5 2.4 Diagram of ear installation ......................6 Chapter 3 Operation Instructions .........................6 3.1 Power supply, communication interface and model classification ..........6 3.1.1 Power supply connection ..................... -
Page 4: Introduction
Introduction The SP-RMD19 micro printer is a panel printer developed and produced by Beijing Spirit Technology Development Co., Ltd. to meet the current market demand. The machine itself uses the latest domestic movement, with the advantages of small size, light weight, complete functions, high speed, high definition, beautiful appearance, simple operation, and convenient connection. -
Page 5: Performance Indicators
RMD19 model receiving buffer 4K Printing paper width is 57.5±0.5mm, paper type 58×φ50 (MAX) Power supply: Voltage input: 12V±5%, Current: 2A Support Windows,Android and Linux Resolution：8dots/mm（203dpi），384dots/line Installation port size：91.1mm×88.3mm（W×H） depth:58.9mm Dimension：91.9mm×91.8mm×67.4mm（W×H×D） Weight：175g（ Exclude paper roll） ... -
Page 6: Chapter 2 Installation Instructions

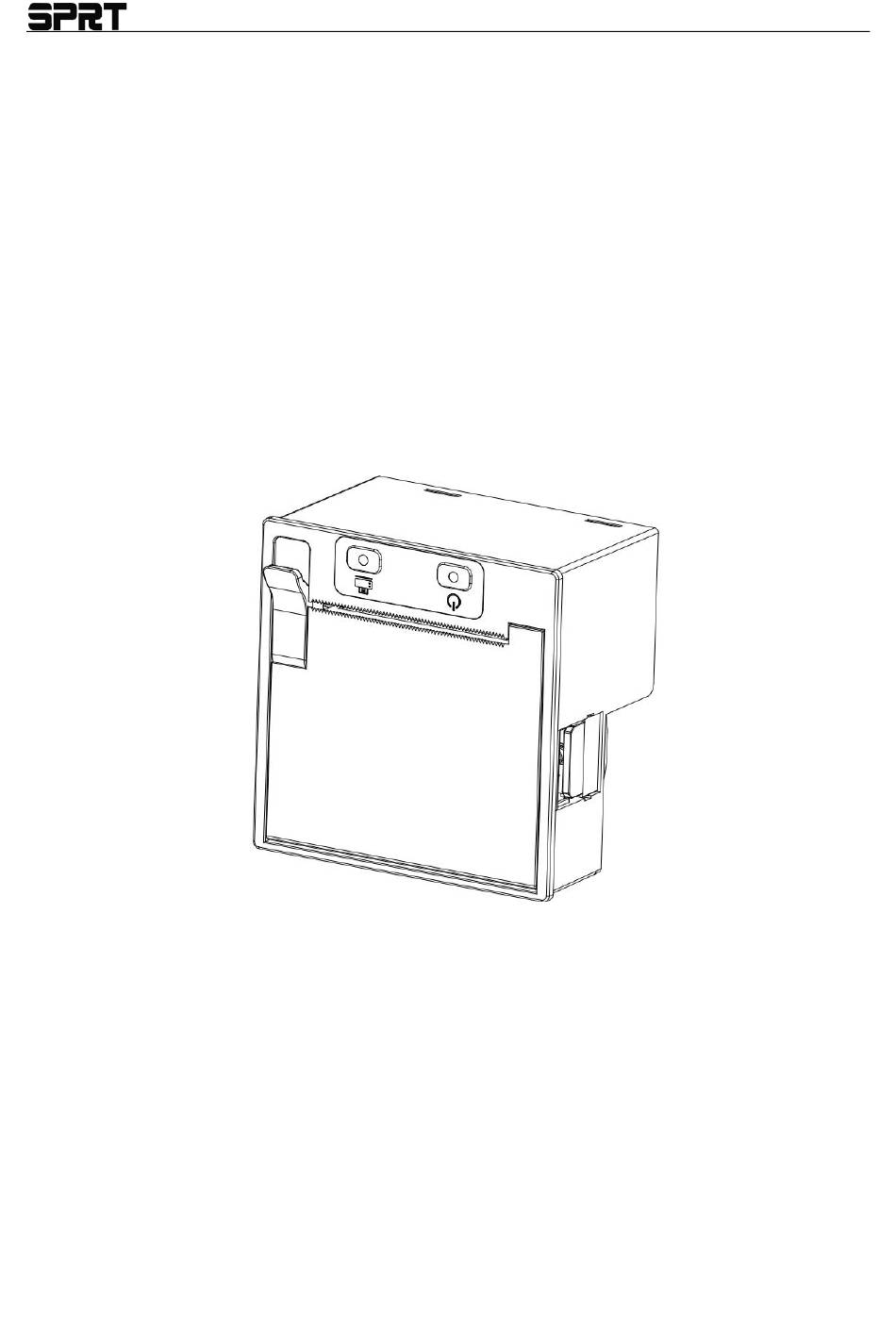

Chapter 2 Installation Instructions 2.1 Printer Appearance Figure 2-1 2.2 Dimension Figure 2-2 2.3 Paper Roll Loading Push the door opening lever outward to open the paper bin cover, install the paper roll (positive roll paper), pull the paper roll out for a distance, and close the paper bin cover, as shown in Figure 2-3. -
Page 7: Diagram Of Ear Installation
Figure 2-3 2.4 Diagram of ear installation Step 1: Embed the printer into the panel. Step 2: Open the paper bin cover and use a screwdriver to turn the screws of the mounting ears clockwise until they are tightened. Shown in Figure 2-4. (Suitable for user panel thickness: 0.5<t<6.0) Figure 2-4 Chapter 3 Operation Instructions... -
Page 8: Power Supply Connection
Serial Figure 3-1▶ Interface socket pin sequence definition 3.1.1 Power supply connection The power interface of the SP-RMD19 series thermal printer is 2.54mm-2PIN. Refer to Figure 3-1. The pin definitions are shown in the following table. Pin Number Signal name... -
Page 9: Parallel Interface
Input Host The printer receives data from the host computer When the signal is in the "MARK" state, it means that the printer is "busy" and cannot receive data. BUSY Output Printer When the signal is in the "SPACE" state, it means that the printer is "ready"... -
Page 10: Printer Parameter Settings
Select trigger, read data at the rising and falling /STB edges. DATA1 DATA2 DATA3 These signals represent the first to eighth bits of DATA4 information of the parallel data respectively. Each DATA5 signal is at a high level when its logic is "1" and at DATA6 a low level when its logic is "0". -
Page 11: Indicator Lights
Fig. 3-4 [Power Button]: Controls the power state. When the printer is off, press to turn it on; when it is on, press to turn it off. [Feed Button]: Used for function settings and paper feeding. In normal operating mode, pressing the button feeds the paper, and releasing it stops the paper feed. - Page 12 1. While the printer is turned off, press and hold the [Feed] button. 2. Then, press the [Power] button. 3. Once the green power indicator light turns on, release the [Power] button first, followed by the [Feed] button. The printer will then print out a self-test sample. 3.3.2 Hexadecimal Dump Mode To enter hexadecimal mode: 1.
-
Page 13: Restore Factory Settings
3.4 Restore Factory Settings With paper loaded and the printer powered off, press and hold the [Feed] button, then briefly press the [Power] button. Wait for the red indicator light to flash 4 times, then release the [Feed] button to enter the function settings. -
Page 14: Others
Avoid incorrect connections with the host machine. Chapter 5: Using the Printer in WINDOWS The SP-RMD19 micro thermal printer driver version is SP_POS_Printer_Driver_Win. The driver and installation instructions can be downloaded from our company’s website (https://www.sprt-printer.com/). Detailed instructions are not provided here.
