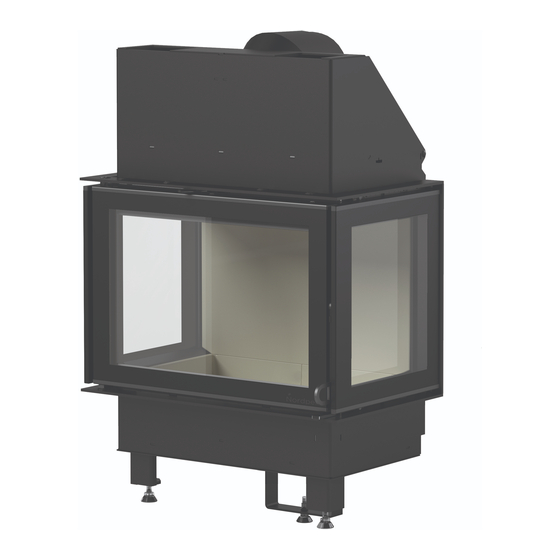

  • Page 1 N-20 U Brukerveiledning User manual Bruksanvisning Käyttöohje Product no: IN-0N20U-011 / IN-0N20U-014 / IN-0N20U-017 Test report No: SPFR 20012-20B2 Last updated: 26.03.2019...
  • Page 2 Index 1. Please follow the installation manual when 1. Prior to assembling the insert Chimney Draft Air Supply pipe to the surrounding materials. 2. Technical Information 2. Before use, please carefully read the user manual and follow the instructions. 3. Safety distances 4.

  • Page 3: Prior To Assembling The Insert

    Installation of the insert must comply with the current rules table and regulations of the country where the product is installed. Nordpeis AS is not responsible for wrongly assembled inserts. The draught increases when: • The chimney becomes warmer than the outside air Subject to errors and changes.

  • Page 4: Safety Distances

    Technical TABLE 3. Safety distances Insert N-20U Firewall Material Steel Surface treatment Heat resistant varnish (FIG 1). / Decorative chrome Weight of insert (kg) 108 kg When connecting a steel chimney to the top outlet use Draught system Ignition air vent control the security distances required by the manufacturer.

  • Page 5: Operational Control

    It is advisable to ventilate the room well when using chimney, follow the recommendations from the chimney manufacturer. release some smoke or smell. Both the smoke and smell will disappear and are not hazardous. Assembling Front Heat Shield FIG 7 Warning! 1.

  • Page 6: Maintenance

    For detailed description of the warranty conditions see the enclosed created between the side plates. warranty card or visit our website www.nordpeis.com Door and Glass The CE mark is placed on the side of the insert.
  • Page 7 Choice of fuel All types of wood, such as birch, beech, oak, elm, ash and fruit trees, can be used as fuel in the insert. Wood briquettes and dry kindling wood. Newspapers cause dense the wood is, the higher the energy value. Beech, a lot of ash and the ink is damaging for the environment.
  • Page 8 Some advice in case of combustion problems Error Explanation Solution The chimney is blocked. Contact a chimney sweeper / dealer for more information or clean No draught Downdraught in the room caused by no draught, that the must be installed in the room. Downdraught in the room –...
  • Page 10 FIG 1 =Brannmur/ Brandmur/ Palomuuri/ Firewall =Brennbart materiale/Brændbart materiale/ Brännbart material/ Tulenarka materiaali/ Combustible material 1000 450cm 450cm >15 >15 450cm 0 mm >400 300cm...
  • Page 11 Thermotte FIG 2 ®™ Montering / Assembling / Montering / Asennus Front leg assembling FIG 3 21-30006-020 x2 22-0N20A-100 x2 21-50000-022 x2 13 mm...
  • Page 12 FIG 3b Bracket leg 22-0N20U-190 x1 21-50000-022 x1 21-30006-020 x1 13 mm FIG 3c Bracket leg 13 mm...
  • Page 13 Air inlet pipe assembling FIG 4 22-00N20-180 x1 21-30011-408 x4 Torx Air inlet adapter 90 assembling - optional FIG 4a 22-00N20-280 22-00N20-180 Torx 20 21-30011-408 x4...
  • Page 14 FIG 4b 22-00N20-290 21-30011-408 x4 Torx 20 FIG 4c...
  • Page 15 FIG 4d FIG 4e...
  • Page 16 FIG 4f Smoke adapter - rear chimney connection FIG 5...
  • Page 17 FIG 5b 5 mm Lift handles - assembling 1-2 / disassembling 3-4 FIG 6 10 mm Attention...
  • Page 18 Front radiation shield - assembling FIG 7 22-0N20U-160 x1 Operational handle - primary valve usage FIG 8...
  • Page 19 Operational handle - secondary valve usage FIG 8b Operational handle - door opening usage FIG 8c...
  • Page 20 Self-closing door deactivation FIG 9 2 x 360 0 2 x 360 0 2,5 mm Kunnossapito FIG 10 LA-0N20U-040 x1 22-0N20U-200 x2 21-30011-408 x2 TORX...
  • Page 21 FIG 11 LA-0N20U-030 x1 FIG 12 22-0N20U-11L x1 22-0N20U-11R x1...
  • Page 22 FIG 13 22-0N20U-130 x1 21-40005-516 x3 LA-0N20U-060 x2 3,0 mm FIG 14 LA-0N20U-020 x1...
  • Page 23 FIG 14b LA-0N20U-010 x1 FIG 15...
  • Page 24 FIG 15b FIG 15c...
  • Page 25 FIG 16 27-0N20U-010 x1 PLASSERING AV SERIENUMMER POSITION OF THE SERIAL NUMBER SARJANUMERON SIJAINTI PLACERING AV SERIENUMMER...
  • Page 26 Nordpeis AS Gjellebekkstubben 11 3420 Lierskogen, Norway N20U-CPR-2015/09/29 EN 13229:2001 / A2:2004 N-20 Heating of living accomodation / Fire safety: Reaction to fire: Distance to non-combustible: Behind : 15mm Beside : 400 mm Emission of combustion 0,09% vol NOx: 32mg/Nm...
  • Page 27 Permanent pilot flame power requirement Pilot flame power requirement (if applicable) Contact details Name and address of the supplier: Nordpeis AS, Gjellebekkstubben 11, N-3420 LIERSKOGEN, Norway...
  • Page 28 Nordpeis AS. Nordpeis N-20A/U ENERGIA · ЕНЕРГИЯ · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE 2015/1186...
  • Page 29 Nordpeis AS, Gjellebekkstubben 11, N-3420 LIERSKOGEN, Norway www.nordpeis.no...

This manual is also suitable for:

N-20 u seriesIn-0n20u-011In-0n20u-014In-0n20u-017N-20 a
