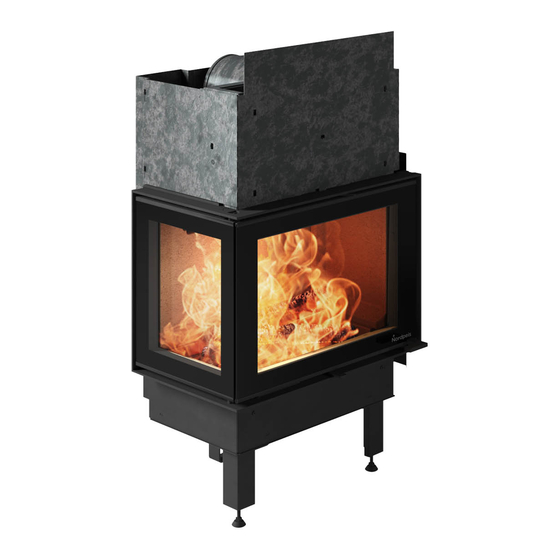

Summary of Contents for Nordpeis N-24 round

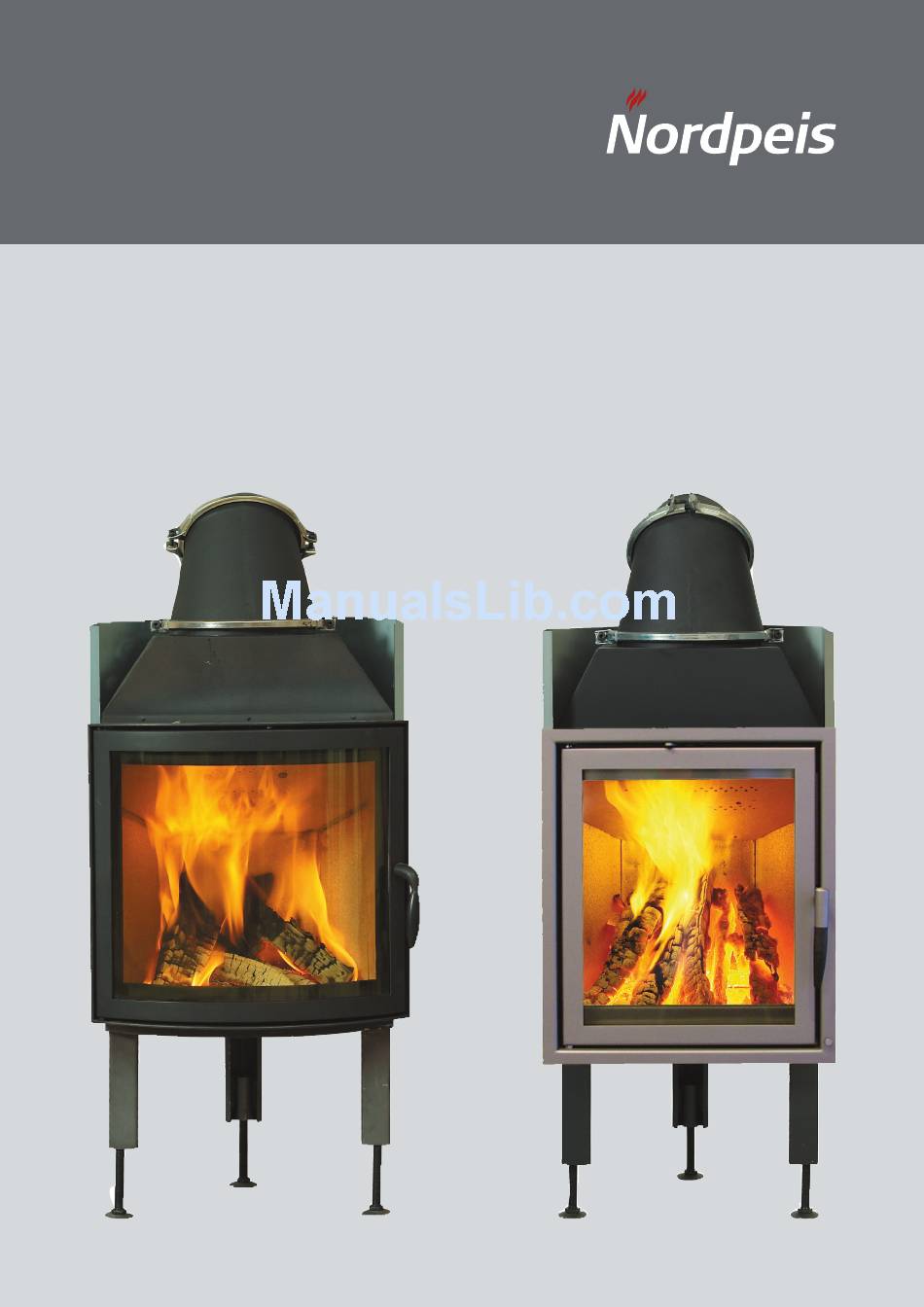

- Page 1 Installation & User Manual N-24 round N-21 flat...
- Page 2 We only introduce our products to the marketplace after several years of research and testing on our combustion techniques have taken place. We thank you for chosing a Nordpeis product and hope it will give you many years of warmth and comfort in the future.
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION 1. Before installation 2. Technical data N-21 3. Technical data N-24 4. Installation site 5. Assembling N-21/N-24 Vermiculite Function testing Using the inset as an open fireplace 6. Using the fireplace for the first time 7. -
Page 4: Important Information
IMPORTANT INFORMATION This appliance must be installed in line with current building regulations either by a registered installer or in conjunction with your local Building Inspector. If in doubt, please consult your stockist or local planning office. If installed incorrectly, this appliance could contribute towards serious accidents and / or damage to your property and could invalidate your warranty. -
Page 5: Before Installation
1. Before installation Make sure the chimney is in good working order and that the required chimney draft of between 14 – 25 Pascal negative is obtained. A minimum chimney height of 4meters is required. The chimney must be Class I – suitable for use with wood. Please ensure the chimney is swept prior to installing the appliance. -
Page 6: Technical Data
2. Technical data N-21 Fire inset: N-21 Material: Steel Door and doorframe finish: Black paint, chrome, faint chrome, anthracite paint, silver paint, golden, faint golden Fuel: Fire wood, 35 cm Effect: 2-10 kW Draught control system: Lighting draught control and firing draught control Combustion system: After burning system (pure combustion) House heating area:... - Page 7 3. Technical data N-24 Fire inset: N-24 Material: Steel Door and doorframe finish: Black paint, chrome, faint chrome, anthracite paint, silver paint, golden, faint golden Fuel: Fire wood, 40 cm Effect: 3-12 kW Draught control system: Lighting draught control and firing draught control Combustion system: After burning system (pure combustion) House heating area:...
-
Page 8: Installation Site
4. Installation site Make sure not to under exceed any safety distances. The fireplace should be sited with the appliance door no less than 1 meter away from combustial materials. When mounting steel chimney on top of the fireplace we refer to the assembly manual from the respective chimney manufacturer. Comply with the safety distances that are required when mounting a steel chimney. -
Page 9: Assembling
1 fire inset with door and vermiculite heat insulation plates inside 1 loose grip for air regulator handle N-21 flat N-24 round Figure 1 Figure 2 IMPORTANT! Be careful when touching the fire insert during it’s first firings as the paint will... - Page 10 Carefully place the inset on it’s back and start assembling the legs this way: • Fasten adjustment screws to the legs (you might want to give the screw a stroke with the hammer to get in place as shown in figure 3a). The nut should be fixed into the hexagonal hole. •...
- Page 11 Mounting upper half of smoke dome: • Put furnace cement on the part connecting to the upper dome (figure 7). • When placed on the lower half of the dome, turn the upper half of the dome to its correct position/ angle towards the chimney (figure 7a).
-
Page 12: Vermiculite
Vermiculite The vermiculite consists of 9 different parts that are ready fixed in the inset upon delivery. If you need to replace vermiculite, please contact your dealer. Disassembling of the vermiculite plates is done in reverse order according to figure 11a or 11b. Assembling order for inset N-21 (figure 11a) Assembling order for inset N-24 (figure 11b) Upper baffle plate (flange turned upwards)*... -
Page 13: Using The Inset As An Open Fireplace
Using the inset as an open fireplace How to remove the door: Remove the shipping stop clip on upper door hinge and dispose it. Open the door and carefully tighten the little hexagonal socket cap screw right above lower door hinge on the inside of the door (figure 12). -
Page 14: Maintenance
Complaints will only be dealt with if the customer has met all his obligations, including his obligation to pay. Insets from Nordpeis AS comes with five years warranty. The dealer who sold the inset handles a pos- sible claim in the warranty period. -
Page 15: Operating Advice
9. Operating advice Lighting the appliance. During the first few firings, the paint will cure. Ensure that the room is well ventilated during this period since the paint will give off fumes and a hazy smoke. Use kindling or firelighters to light the fire. Open the Lighting draft control (figure 1 page 13). Keep the door ajar until the chimney is warmed. -
Page 16: Useful Information About Firing And Fireplaces
Insets from Nordpeis perform an after burning of the flue gas. The combustive process is executed in two steps: First there is a conventional fire in the fire wood. Then there is a secondary combustion when preheated extreme hot air mixes with the flue gases from the first combustion and a new pure combustion takes place. -
Page 17: Hints And Tips On Problems With The Fireplace
Hints and tips on problems with the fireplace Problem Cause Repair suggestion Not enough Chimney is choked Clean out smoke pipe and inset. If this does not help, draught call your chimneysweeper or local dealer for further Smoke pipe is soothed and/or there is soot accumu- help lation on the baffle plate(s) Misplaced baffle plate(s) -
Page 18: Appendix
10. Appendix Sintef product documentation for N-24 Sintef product documentation for N-21... -
Page 19: Report Form
Report form CHECKLIST AND CONFIRMATION ON VERIFICATION OF FIREPLACE INNSTALLATION Residence address Land number Title number Phone House owners name Address Postal code City Installers name Address Postal code City Fireplace model and manufacturer Energy efficiency Fuel type Chimney type (e.g. brick, steel, prefabricated) Cross-section Number of fire- places on same... - Page 20 Nordpeis AS Gjellebekkstubben 9/11 3420 Lierskogen NORWAY Telefon: 32 24 47 00 Telefax: 32 24 47 08 E-post post@nordpeis.no...
