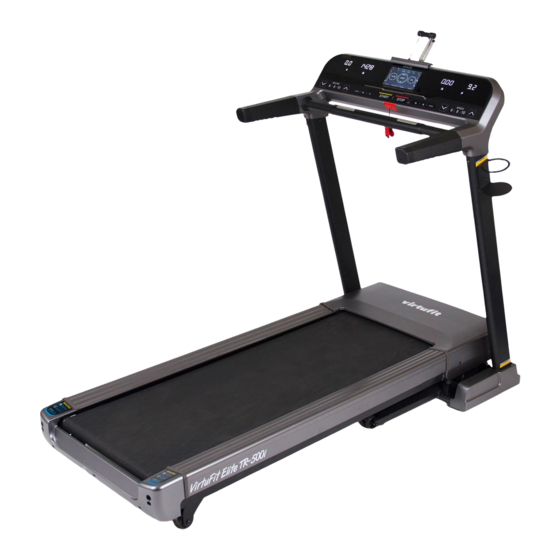

Elite TR-500i Loopband

User manual

For questions or missing parts, please contact Fitness Benelux:
Twekkelerweg 263
Fitness
7553 LZ Hengelo
Benelux
Benelux
The Netherlands
Uw partner in fitness
T
+31 (0)74-7600219
E
service@fitnessbenelux.nl
W
www.fitnessbenelux.nl
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite TR-500i and is the answer not in the manual?

Questions and answers

Summary of Contents for VIRTUFIT Elite TR-500i

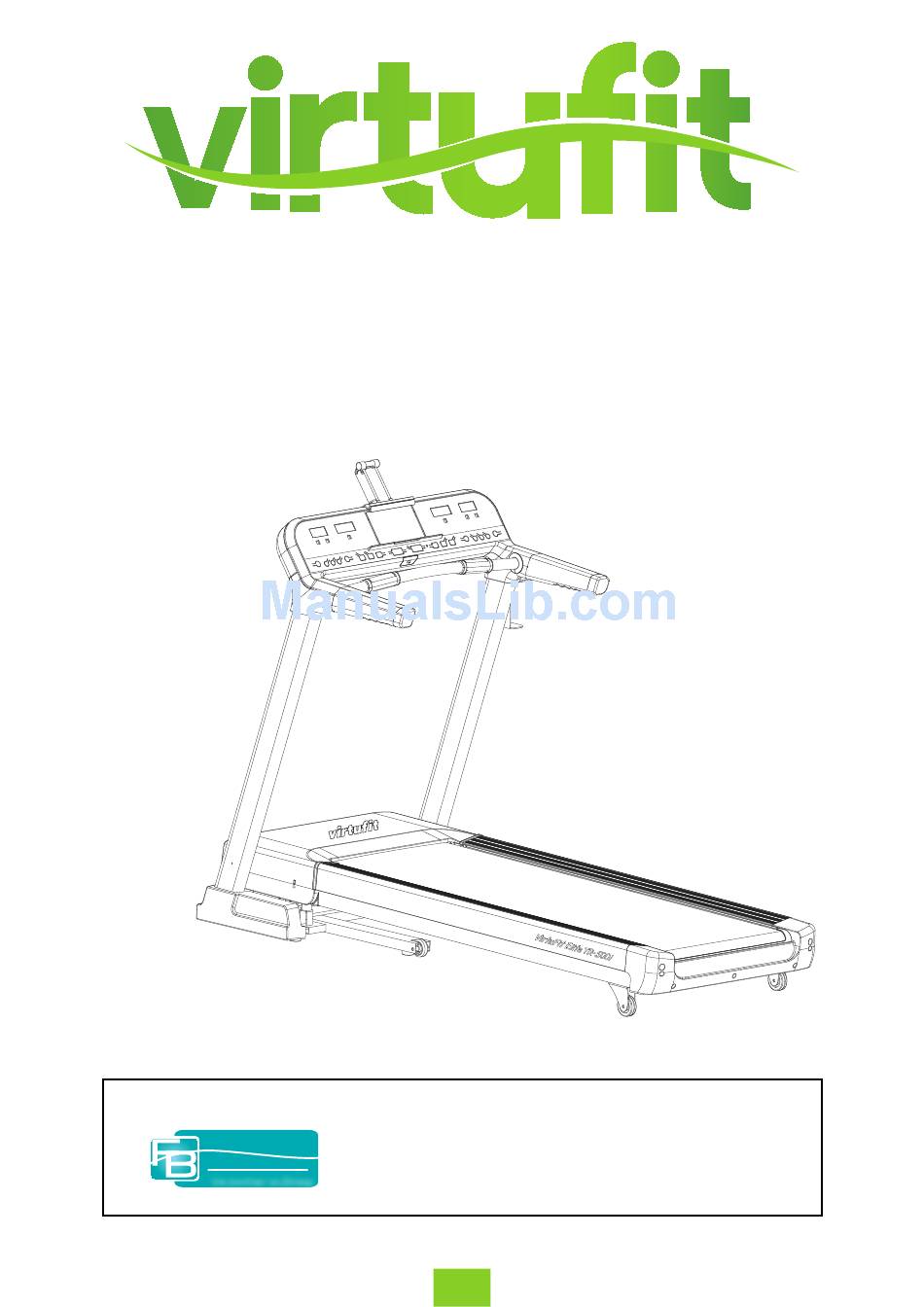

  • Page 1: User Manual

    Elite TR-500i Loopband User manual For questions or missing parts, please contact Fitness Benelux: Twekkelerweg 263 +31 (0)74-7600219 Fitness 7553 LZ Hengelo service@fitnessbenelux.nl Benelux Benelux The Netherlands www.fitnessbenelux.nl Uw partner in fitness...
  • Page 2 INDEX Index Safety Precautions Checklist Assembly Steps Folding Steps P 17 Operation Instruction P 19 App instructions P 39 Tips for Stretching P 42 Maintenance P 43 Explosive drawing P 44 Part list P 46 Elite TR-500i Treadmill...
  • Page 3: Electrical Safety Precautions

    Always check the power cable for damage prior to use. If any damage is observed, do NOT use the power cable. Never touch the power cable with wet hands. Position the power cable so that it cannot be walked on or pinched. Only the supplied power cable should be used with the treadmill. Elite TR-500i Treadmill...
  • Page 4: General Safety Precautions

    Keep children and pets away from the treadmill. The treadmill is designed for adult use only. Wear suitable clothing whilst using the treadmill. Avoid wearing loose clothing which may get caught in the treadmill or clothing that may restrict or prevent movement.aerobic schoenen met rubberen zolen. Elite TR-500i Treadmill...
  • Page 5 Supervised children using the treadmill must not be allowed to play with the treadmill. This machine must be well earthed. It can decrease the danger of electric shock . Elite TR-500i Treadmill...
  • Page 6 Left bottom cover Right bottom cover Bolt M8*15 Bolt M5812 Lock washer Big flat washer Φ5*φ13*1.0 Assembly tools: 5# Inner hex wrench Cross solid wrench S=13 14 15 Solid wrench 19mm Attention: please don`t switch on before finish assembling. Elite TR-500i Treadmill...
  • Page 7: Assembly Steps

    ASSEMBLY STEPS STEP 1 Open the package and put the mainframe A on the floor. Attention: Don’t open the packing belt (P) before set up of the treadmill Elite TR-500i Treadmill...
  • Page 8 Fix the column A06 to the mainframe A with bolt E13 and lock washer E32 by 5# Allen wrench B09 . Fix the column A07 to the mainframe according to the steps above. ATTENTION: Support the column with hand to avoid falling down. Elite TR-500i Treadmill...
  • Page 9 Connect the monitor cable D03 with D04. Fix the monitor B to the left and right column A06\A07 with bolt E13 and lock washer E32 by 5# Allen wrench B09. Attention: Please make sure cables are well connected before fasten. Elite TR-500i Treadmill...
  • Page 10 Attach the tablet holder (C) to the console (B) using the wrench (B15). The tablet holder is optional and can be omitted if you wish. Note: First, manually confirm the screw holder (B12) of the tablet holder in the console (B) and then tighten it with nut B13 and wrench B15. Elite TR-500i Treadmill...
  • Page 11 ASSEMBLY STEPS STEP 5 Fix the left and right foam handlebar C05\C06 to the monitor B with bolt E22 and big washer E39 by cross solid wrench B08 Elite TR-500i Treadmill...
  • Page 12 ASSEMBLY STEPS STEP 6 Attach the left and right cover (C14 / C15) to the frame. Make sure everything is well confirmed. Elite TR-500i Treadmill...
  • Page 13 ASSEMBLY STEPS STEP 7 Fix the bottle holder B01 to the right column A07 with bolt E22 by solid cross solid wrench B08. Elite TR-500i Treadmill...
  • Page 14 ASSEMBLY STEPS STEP 8 Before running, please nip the safety key clip D07 with your cloth. For any emergency, please pull the safety key rope , and the machine will stop. Elite TR-500i Treadmill...
  • Page 15 ASSEMBLY STEPS STEP 9 Remove bolt M8 * 15 (E13) at the bottom of the steel cable (E) with 5 # inner wrench lock B09. Elite TR-500i Treadmill...
  • Page 16 ASSEMBLY STEPS STEP 10 Take apart the bolt M8*15 ( E13) in the bottom side of the steel cable (E) with 5# Allen wrench B09. Elite TR-500i Treadmill...
  • Page 17: Folding Steps

    Attention: it is forbidden to fold up when the machine is in running or incline mode. Support place F with hand , kick the place E of air pressure bar, then the base frame will fall down automatically. Elite TR-500i Treadmill...
  • Page 18 Once the Main Frame “F” reaches a low enough point, the wheels of the treadmill will become active. To transport, hold the treadmill from position “F” and tilt until the wheels are able to move on the ground. Elite TR-500i Treadmill...
  • Page 19: Console Functions

    Speed/Pulse window: usually it shows your current speed from 0.8-20.0km/h; if you hold the pulse sensor for several seconds it shows your current pulse from 50-200/min. (the date just for reference, cannot be used as the medical purpose). Elite TR-500i Treadmill...
  • Page 20 Speed adjustment key. Under initial situation, set the data with this button. When the machine is running, press the button to adjust the speed, 0.1 KM at each press, when press the button over 0.5 seconds, the speed will be up or down continuely Elite TR-500i Treadmill...
  • Page 21: Quick Start

    There are four function modules in the homepage. They are mode, program, music and video. There are 3 kind of countdown modes, contest mode and manual mode under mode function. There are 24 preset programs, 3 manual programs, 2 HRC programs (optional) and 1 FAT test program under program function. Elite TR-500i Treadmill...
  • Page 22 - Now you’ll see the word ‘search’ & click on it - Now bluetooth will search for the treadmill - Click on connect now - Now you’re connected to the treadmill. Count/countdown timer Distance/distance countdown calculator Calorie/calorie countdown calculator Elite TR-500i Treadmill...
  • Page 23: Function Description

    Press the “START” key and then the machine will work at a speed of 0.8km/h and all other windows will count from 0. Press the “-SPEED+” key to change the speed and the “-INCLINE+” key to change the incline. Elite TR-500i Treadmill...
  • Page 24 “50.0” will be fl ashed displaying on the screen. Press the “-INCLINE+” or “-SPEED+” key to change the distance from 10.0 to 999.0. After fi nish exercising the system will display your running data automatically. Wedstrijd modus Elite TR-500i Treadmill...
  • Page 25 At last press START key to begin exercise. Race distance Auto Time 18:00 30:00 10km 01:00:00 15km 01:30:00 21.10km 02:06:35 42.19km 04:13:10 After finish exercising the system will judge your running performance automatically. Elite TR-500i Treadmill...
  • Page 26: Preset Program

    After finish each program, the system will give you a score. Program introduction Each program is divided into 10 stages and each stage has its own speed and incline. Elite TR-500i Treadmill...
  • Page 27: Program Table

    INCLINE 2 10 6 SPEED P24 SPEED 10 11 12 10 10 8 INCLINE 4 INCLINE 3 10 12 9 SPEED 10 6 INCLINE 1 10 7 SPEED INCLINE 3 12 9 11 11 6 SPEED INCLINE 5 Elite TR-500i Treadmill...
  • Page 28: Manual Mode

    Repeat the above steps to set the data for the rest 8 stages. When finish setting, all data will be kept for you only if you reset again. After set data, please press START key to begin exercise. Elite TR-500i Treadmill...
  • Page 29 0.50 - 99.00 0.00 - 99.99 Heart rate (time/min) 50 - 200 Calorie (K) 50.0 10.0 - 999 0.0 - 999 HRC program(optional function, as per order request) Press MODE key continuously until “Heart program1”or “Heart program2” appeared. Elite TR-500i Treadmill...
  • Page 30 0.5km and incline 1 section every 10 seconds until reducing to the lowest data. Note: Heart rate control program can only be available when chest belt is used, and chest belt must stick closely to chest and skin. Elite TR-500i Treadmill...
  • Page 31 183 116 143 90 182 115 142 90 181 115 141 90 181 114 140 90 180 113 139 90 179 113 138 90 178 112 137 90 177 112 136 90 135 90 134 90 133 90 Elite TR-500i Treadmill...
  • Page 32 30 it means that you are too fat (the following data is only for reference and cannot be used as medical purpose). 01-male (man) 10-99 Height 100-200 Weight 20-150 ≤19 Thin =(20---25) Normal =(26---29) A little weight ≥30 Too fat Elite TR-500i Treadmill...
  • Page 33: Local Music

    The data stands for the total time of the music The icon stands for the progress of the playing music. Local Video Press the key to change the mode of music and video. When playing video, press this button will make the video full screen. Elite TR-500i Treadmill...
  • Page 34: Safety Key Function

    ENERGY SAVING MODE If there is not any operation in 10 munities, the machine will enter into energy saving mode. And do not show anything. You can wake the system by pressing any key. Elite TR-500i Treadmill...
  • Page 35: Power Off

    Please check whether the speed sensor is connected well or not. In addition please check whether the sensor is broken or not. The sensor wire on the PCB board is broken, please replace the PCB board. Elite TR-500i Treadmill...
  • Page 36: Stall Protection

    Stall protection Incline learn fail Check motor wire Check incline wire Check motor Check incline motor Check driver Check driver Current overfl ow protect: Motor break Decrease load Check motor wire Change transmission Check motor Change motor Elite TR-500i Treadmill...
  • Page 37: Pause Function

    Press STOP button twice, the system will stop and go back to standby mode and list your running date automatically at the same time. Elite TR-500i Treadmill...
  • Page 38 After finish oil please press the START key lasts for 3 seconds and the tip will be swept off automatically. And then system will display will give you a treadmill work report. Press the START key shortly and then the treadmill will enter into standby mode. Elite TR-500i Treadmill...
  • Page 39: App Instruction

    APP INSTRUCTION Elite TR-500i Treadmill...
  • Page 40 APP INSTRUCTION Elite TR-500i Treadmill...
  • Page 41 APP INSTRUCTION Elite TR-500i Treadmill...
  • Page 42: Tips For Stretching

    - Hold for about 10 seconds. feet toward your groin - Repeat for other leg. area as far as possible. Note: Keep your back and - Hold for about 10 seconds. rear leg straight when performing this exercise. Elite TR-500i Treadmill...
  • Page 43: Maintenance

    So keep a suitable tightness is very important. We suggest you grasp the running belt and pull it up to a certain distance until you cannot pull it up anymore. If the distance is between 50-75mm, we think the tightness of the running belt is suitable. Elite TR-500i Treadmill...
  • Page 44: Explosive Drawing

    EXPLOSIVE DRAWING Elite TR-500i Treadmill...
  • Page 45 EXPLOSIVE DRAWING Elite TR-500i Treadmill...
  • Page 46: Part List

    End cover IPAD O ring O ring Motor top cover ST4.2*13 Motor bottom cover Left bottom cover Right bottom cover ST4.2*20 Rear protection cover Side rail Left side rail cap Right side rail cap Foam Running belt Elite TR-500i Treadmill...
  • Page 47 D11 AC single wire blue 350mm D12 Earth wire D13 DC motor D14 Incline motor D15 Running board D16 Square Switch D17 Socket D18 Over load protector D19 Magnet ring D20 Magnet core D21 Power cable Non-locked nut Elite TR-500i Treadmill...
  • Page 48 Twekkelerweg 263 Fitness Big flat washer φ5*φ13*1.0 7553 LZ Hengelo Benelux Benelux Filter optional The Netherlands Uw partner in fitness Inductance optional +31 (0)74-7600219 AC single wire L500 optional service@fitnessbenelux.nl Grounding wire L350 optional www.fitnessbenelux.nl Screw ST4.2*12 optional Elite TR-500i Treadmill...
