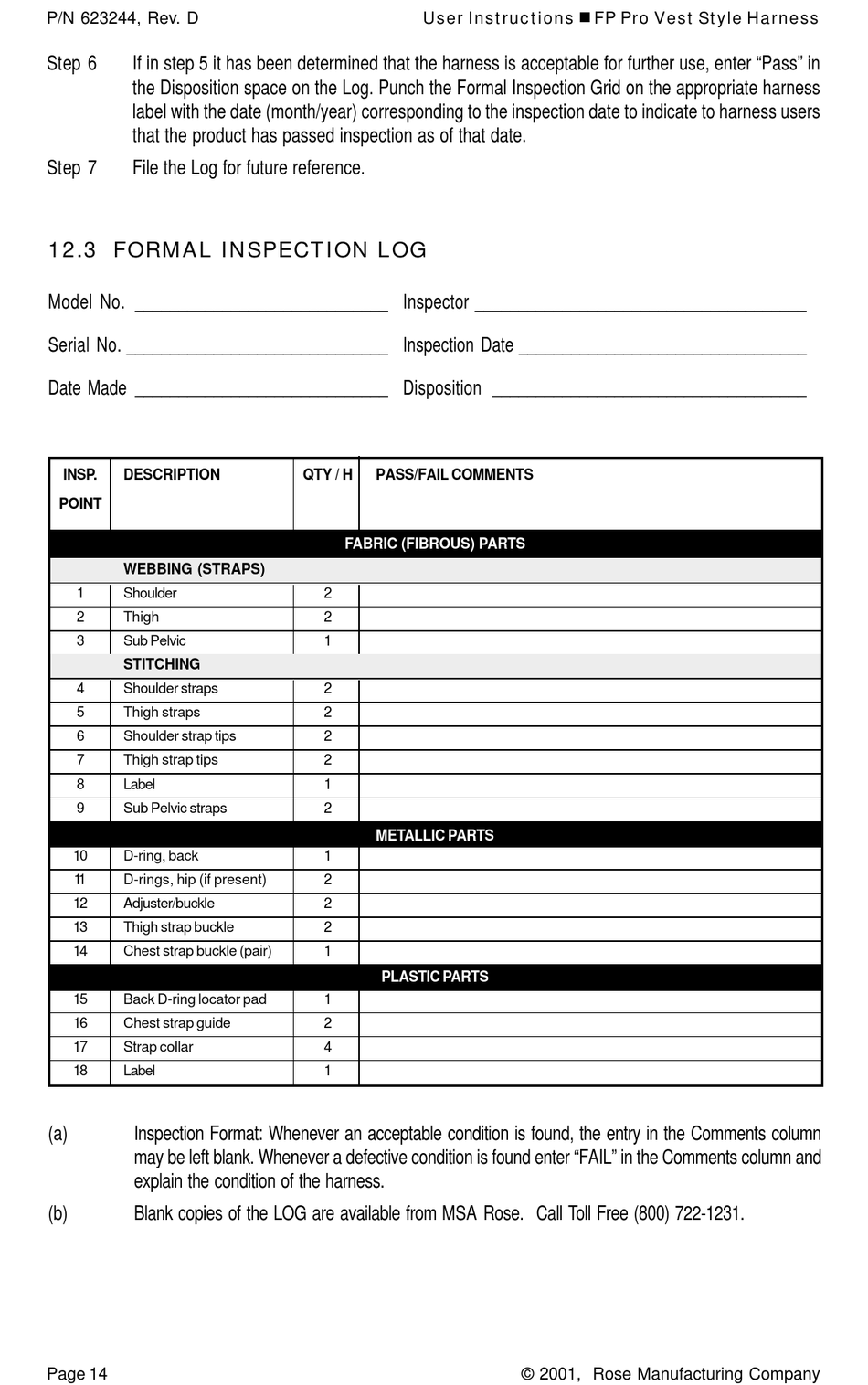

MSA FP Pro User Instructions page 14

P/N 623244, Rev. D
Step 6 If in step 5 it has been determined that the harness is acceptable for further use, enter "Pass" in
the Disposition space on the Log. Punch the Formal Inspection Grid on the appropriate harness
label with the date (month/year) corresponding to the inspection date to indicate to harness users
that the product has passed inspection as of that date.
Step 7 File the Log for future reference.
12.3 FORMAL INSPECTION LOG
Model No. _____________________________ Inspector ______________________________________
Serial No. ______________________________ Inspection Date _________________________________
Date Made _____________________________ Disposition ____________________________________
INSP. DESCRIPTION
POINT
WEBBING (STRAPS)
1 Shoulder
2 Thigh
3 Sub Pelvic
STITCHING
4 Shoulder straps
5 Thigh straps
6 Shoulder strap tips
7 Thigh strap tips
8 Label
9 Sub Pelvic straps
10 D-ring, back
1 1 D-rings, hip (if present)
12 Adjuster/buckle
13 Thigh strap buckle
14 Chest strap buckle (pair)
15 Back D-ring locator pad
16 Chest strap guide
17 Strap collar
18 Label
(a) Inspection Format: Whenever an acceptable condition is found, the entry in the Comments column
may be left blank. Whenever a defective condition is found enter "FAIL" in the Comments column and
explain the condition of the harness.
(b) Blank copies of the LOG are available from MSA Rose. Call Toll Free (800) 722-1231.
Page 14
User Instructions ! FP Pro Vest Style Harness
QTY / H PASS/FAIL COMMENTS
FABRIC (FIBROUS) PARTS
2
2
1
2
2
2
2
1
2
METALLIC PARTS
1
2
2
2
1
PLASTIC PARTS
1
2
4
1
© 2001, Rose Manufacturing Company
