User Instructions ! FP Pro Vest Style Harness
4.0

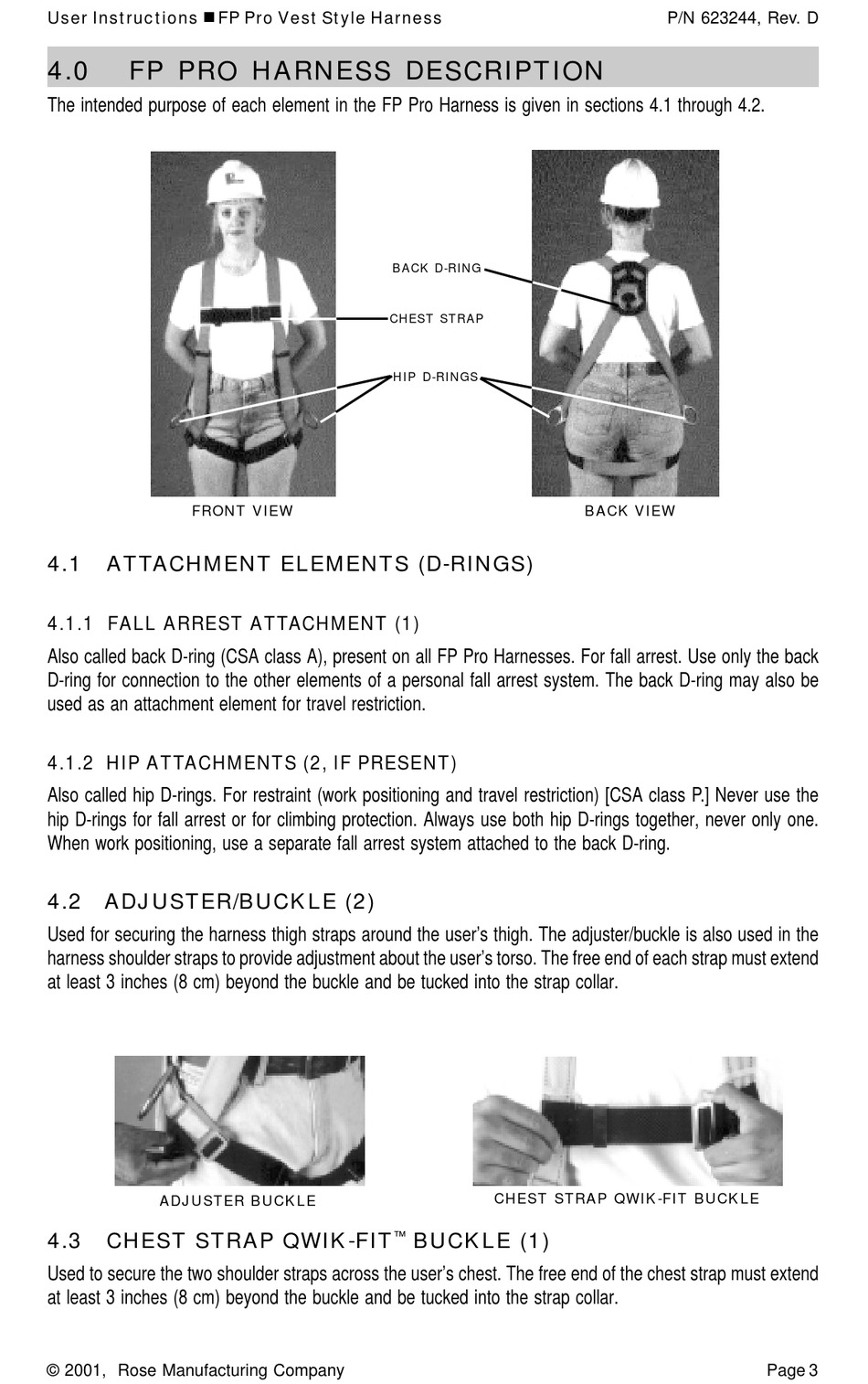

FP PRO HARNESS DESCRIPTION
The intended purpose of each element in the FP Pro Harness is given in sections 4.1 through 4.2.
FRONT VIEW
4.1
ATTACHMENT ELEMENTS (D-RINGS)
4.1.1 FALL ARREST ATTACHMENT (1)
Also called back D-ring (CSA class A), present on all FP Pro Harnesses. For fall arrest. Use only the back
D-ring for connection to the other elements of a personal fall arrest system. The back D-ring may also be
used as an attachment element for travel restriction.
4.1.2 HIP ATTACHMENTS (2, IF PRESENT)
Also called hip D-rings. For restraint (work positioning and travel restriction) [CSA class P.] Never use the
hip D-rings for fall arrest or for climbing protection. Always use both hip D-rings together, never only one.
When work positioning, use a separate fall arrest system attached to the back D-ring.
4.2 ADJUSTER/BUCKLE (2)
Used for securing the harness thigh straps around the user's thigh. The adjuster/buckle is also used in the
harness shoulder straps to provide adjustment about the user's torso. The free end of each strap must extend
at least 3 inches (8 cm) beyond the buckle and be tucked into the strap collar.
ADJUSTER BUCKLE
4.3
CHEST STRAP QWIK-FIT
Used to secure the two shoulder straps across the user's chest. The free end of the chest strap must extend
at least 3 inches (8 cm) beyond the buckle and be tucked into the strap collar.
© 2001, Rose Manufacturing Company
BACK D-RING
CHEST STRAP
HIP D-RINGS
CHEST STRAP QWIK-FIT BUCKLE
BUCKLE (1)
P/N 623244, Rev. D
BACK VIEW
Page 3
