Operation

Release Steps

1.
Disengage transport lock (Fig. 1).
2.
Firmly grasp and pull out the vertically stored SolidStep and firmly rest it on the ground.
3. Adjust leg extensions as needed, see Leg Extension Adjustment section.

Storage of Steps

1. Retract leg extensions, if desired.
2.
Lift up SolidStep to its stored position and make sure the transport lock has been engaged.

Adjust Leg Extension

The leg extension is secured with a quick release clevis pin. Adjustments can be made to the leg extensions
in 1" increments by moving the inner leg up or down for the optimal angle and to adjust for the ground
surface angle.
1.
To extend the inner leg (Fig. 2B):
A. Remove the quick release clevis pin (Fig. 2A) from the tube and the slot in the angle.
B. Extend the inner leg to the ground and at an angle so the steps are parallel to the ground and are
level.
C. Replace the quick release clevis pin in the tube and slot and into the closest inner leg hole that
intersects with the outer leg's slot to where the inner leg and the outer leg (Fig. 2C) meet.
Rev: 11.08.19
Moving parts can pinch, crush or cut. Keep clear and use caution.

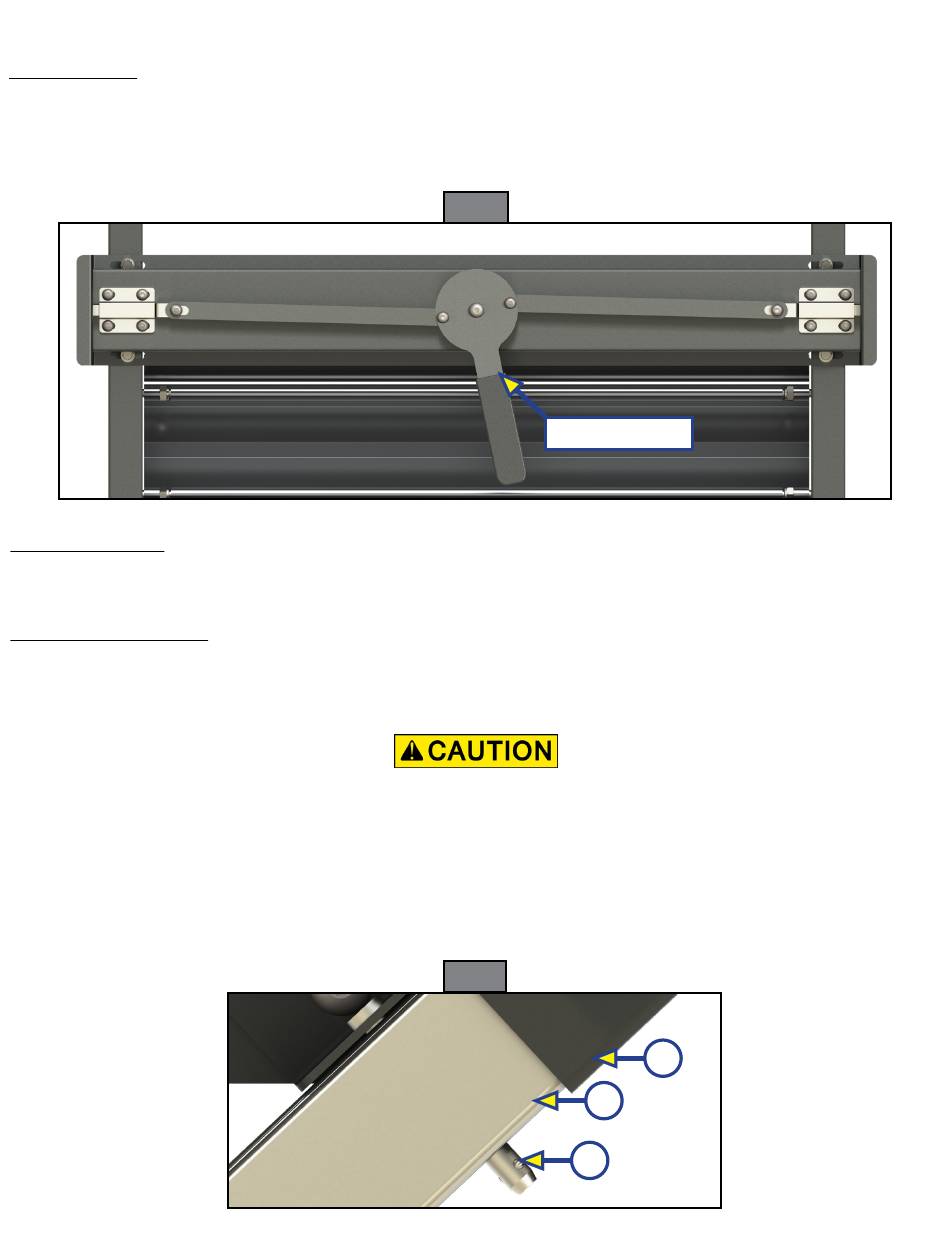

Fig. 1
