Handrail (if equipped)

Installation

1.

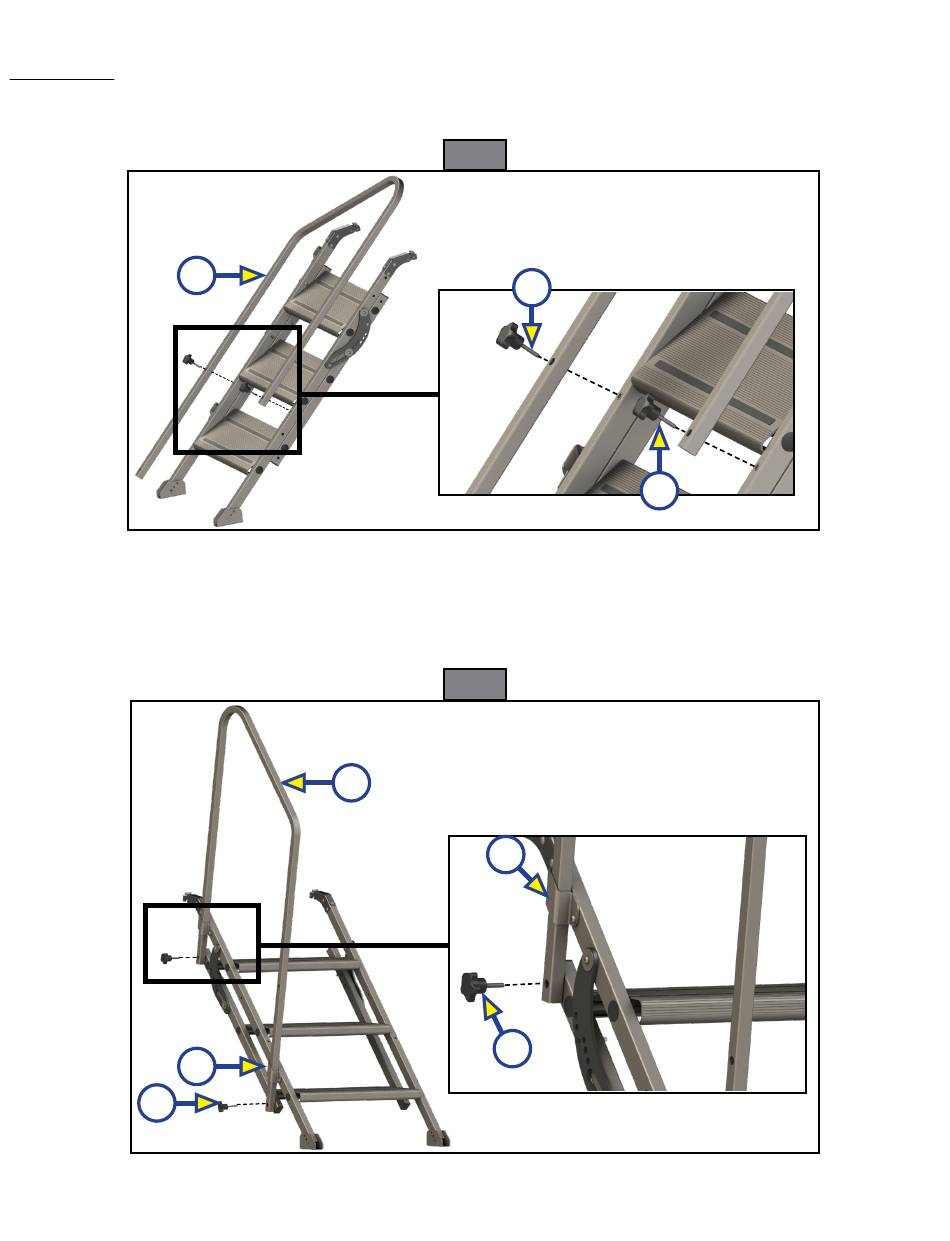

To remove the handrail (Fig. 6A) for installation, unscrew the fastening knobs (Fig. 6B). The knobs will
be used for installation of the handrail.
2.
To install the handrail, align the short end of the handrail tube with the top bracket (Fig. 7A) on
the left side of the Victory Step and the long end of the handrail tube (Fig. 7B) with the bottom bracket (Fig. 7C).
3.
Slide both ends of the handrail tube through the brackets and align with the holes in the back tube.
Screw the fastening knob (Fig. 7D) through the top hole in the handrail and into the back tube. Repeat
for the bottom hole. Hand tighten both knobs.
D
Rev: 11.08.19
A
B
C
Fig. 6
B
Fig. 7
A
D
Page 15
B
CCD-0001573-11
