Kit# 281314
One side - Equa-Flex
Triple Axle 3-6K

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
lci1.com
Kit# 279689
One side - Equa-Flex
Triple Axle 5-8K
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
574-537-8900

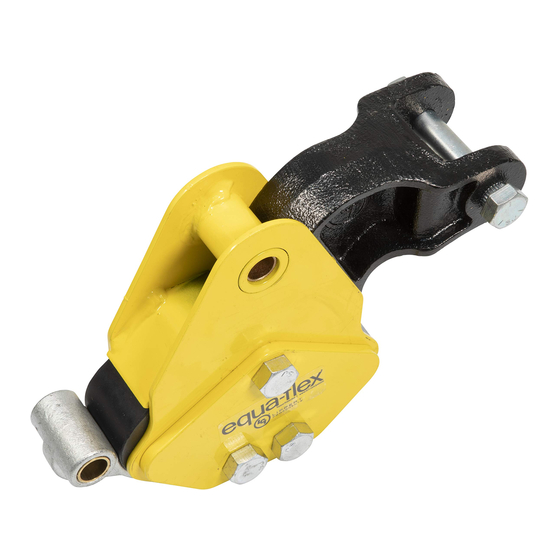

Equa-Flex

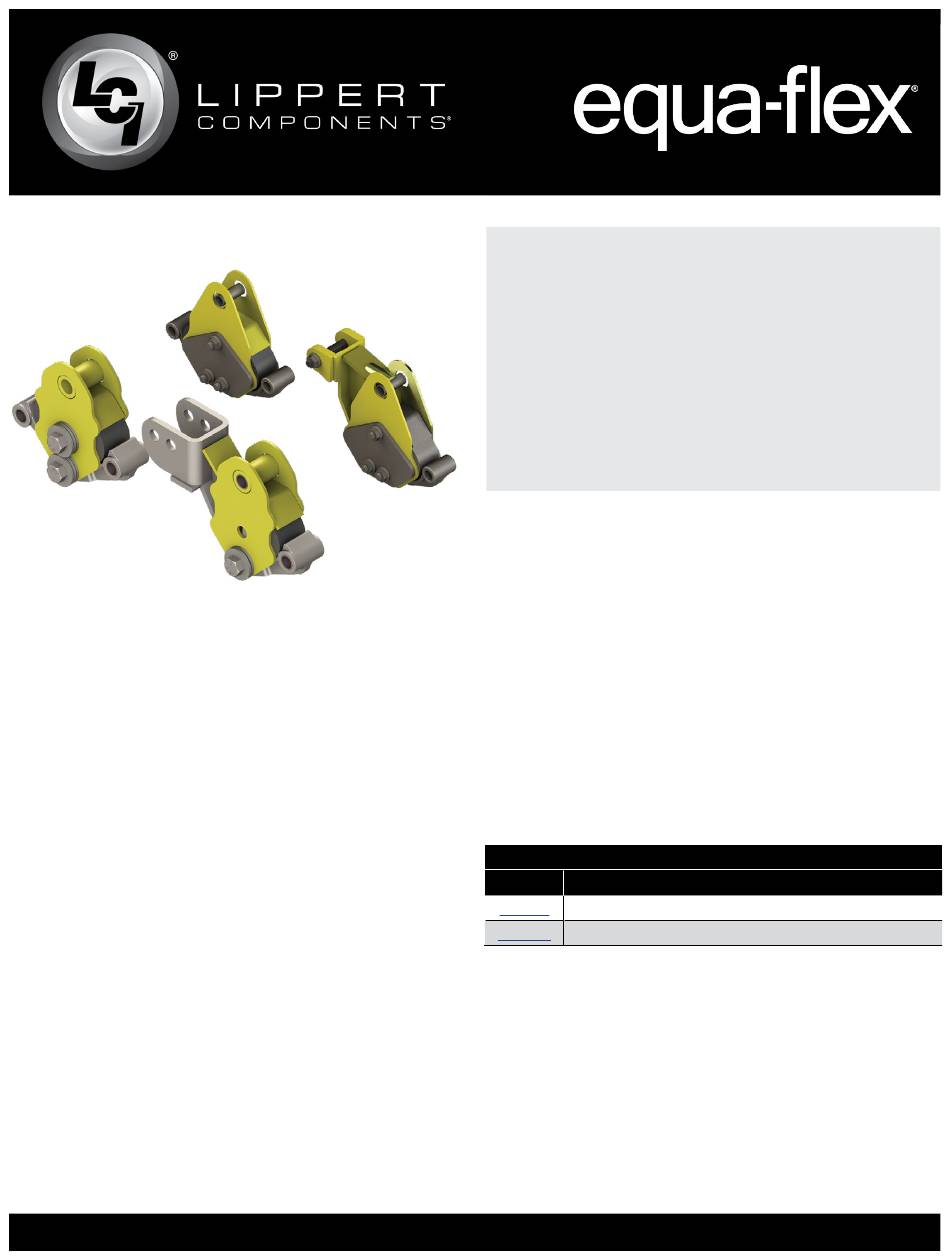

Installation and Owner's Manual
(For Aftermarket Applications)
Equa-Flex
Triple Axle
Installation and
Owner's Manual
(For Aftermarket Applications)
Equa-Flex Triple Axle Aftermarket Kits
Equa-Flex Triple Axle Aftermarket Kits
2
Part #
Part #
Description
Description
2
281314
Equa-Flex® Triple Axle, 3-6K
3
279689
Equa-Flex® Triple Axle, 5-8K
3
3
4
4
5
6
6
7
9
1
CCD-0003474
Triple Axle
®
®
Rev: 09.21.20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Equa-Flex Triple Axle and is the answer not in the manual?

Questions and answers

Related Manuals for Lippert Components Equa-Flex Triple Axle

Summary of Contents for Lippert Components Equa-Flex Triple Axle

  • Page 1: Table Of Contents

    ..........Equa-Flex Triple Axle 3-6K Aftermarket Kit .

  • Page 2: Introduction

    (For Aftermarket Applications) Introduction Failure to correctly follow the provided instructions may The Equa-Flex Triple Axle 3-6K kits are used for triple-axle result in death, serious personal injury, severe product and/ trailers with double-eye leaf springs and weight capacity or property damage, including voiding of the LCI limited from 3,000 to 6,000 lbs.

  • Page 3: Parts List

    Equa-Flex Triple Axle 3-6K Aftermarket Kit Equa-Flex Triple Axle 5-8K Aftermarket Kit *front spring eye location Equa-Flex Triple Axle 3-6K Aftermarket Kit # Equa-Flex Triple Axle 3-6K Aftermarket Kit # Equa-Flex Triple Axle 5-8K Aftermarket Kit # Equa-Flex Triple Axle 5-8K Aftermarket Kit #...

  • Page 4: Parts Available For Purchase

    Equa-Flex Triple Axle ® Installation and Owner’s Manual (For Aftermarket Applications) Parts Available for Purchase Parts Available for Purchase Parts Available for Purchase Shackle Links and Assemblies Shackle Links and Assemblies The parts listed are NOT part of the Equa-Flex Triple Letter Letter Description...

  • Page 5: Prior To Installation

    Equa-Flex Triple Axle ® Installation and Owner’s Manual (For Aftermarket Applications) Prior to Installation MAKE SURE ANY POINTS OF CONTACT FOR JACK STANDS DO NOT RESULT IN DAMAGE TO ANY PANELS OR LINES UNDER THE TRAILER. IMPROPER RAISING OR LOWERING OF THE TRAILER COULD RESULT IN DEATH, SERIOUS INJURY OR SEVERE PRODUCT OR PROPERTY DAMAGE.

  • Page 6: Installation

    Equa-Flex Triple Axle ® Installation and Owner’s Manual (For Aftermarket Applications) Installation 3. Both the shackle bolts and equalizer bolt must be installed from the outside-in towards the center of the trailer chassis. This ensures that the bolt threads do not THE TRAILER MUST BE SUPPORTED PER interfere with any other assemblies.

  • Page 7: Front Axles

    Equa-Flex Triple Axle ® Installation and Owner’s Manual (For Aftermarket Applications) Front Axles NOTE: The equalizer bolt must be installed from the outside in toward the center of the trailer chassis. This ensures the 1. Install the triple axle equalizer on the roadside frame bolt threads do not interfere with any other assemblies.
  • Page 8 Equa-Flex Triple Axle ® Installation and Owner’s Manual (For Aftermarket Applications) 6. For Axle #1 and Axle #3, attach the leaf springs to the 9. Torque all nuts until they bottom out on the shoulder bolt hangers with shoulder bolts and nuts (Figs.5 and 6). at 30-50 ft-lbs.

  • Page 9: Notes

    Equa-Flex Triple Axle ® Installation and Owner’s Manual (For Aftermarket Applications) Notes lci1.com 574-537-8900 CCD-0003474 Rev: 09.21.20...
  • Page 10 Equa-Flex Triple Axle ® Installation and Owner’s Manual (For Aftermarket Applications) lci1.com 574-537-8900 CCD-0003474 Rev: 09.21.20...
  • Page 11 Equa-Flex Triple Axle ® Installation and Owner’s Manual (For Aftermarket Applications) lci1.com 574-537-8900 CCD-0003474 Rev: 09.21.20...
  • Page 12 Installation and Owner’s Manual (For Aftermarket Applications) Manual information may be distributed as a complete document only, unless Lippert Components provides explicit consent to distribute individual parts. All manual information is subject to change without notice. Revised editions will be available for free download at .
