Lippert Components SolidStep 3.0 Oem Installation Manual
Hide thumbs
Also See for SolidStep 3.0:
- Master owner's manual (18 pages) ,
- Owner's manual (8 pages) ,
- Installation and owner's manual (8 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Lippert Components SolidStep 3.0
Summary of Contents for Lippert Components SolidStep 3.0

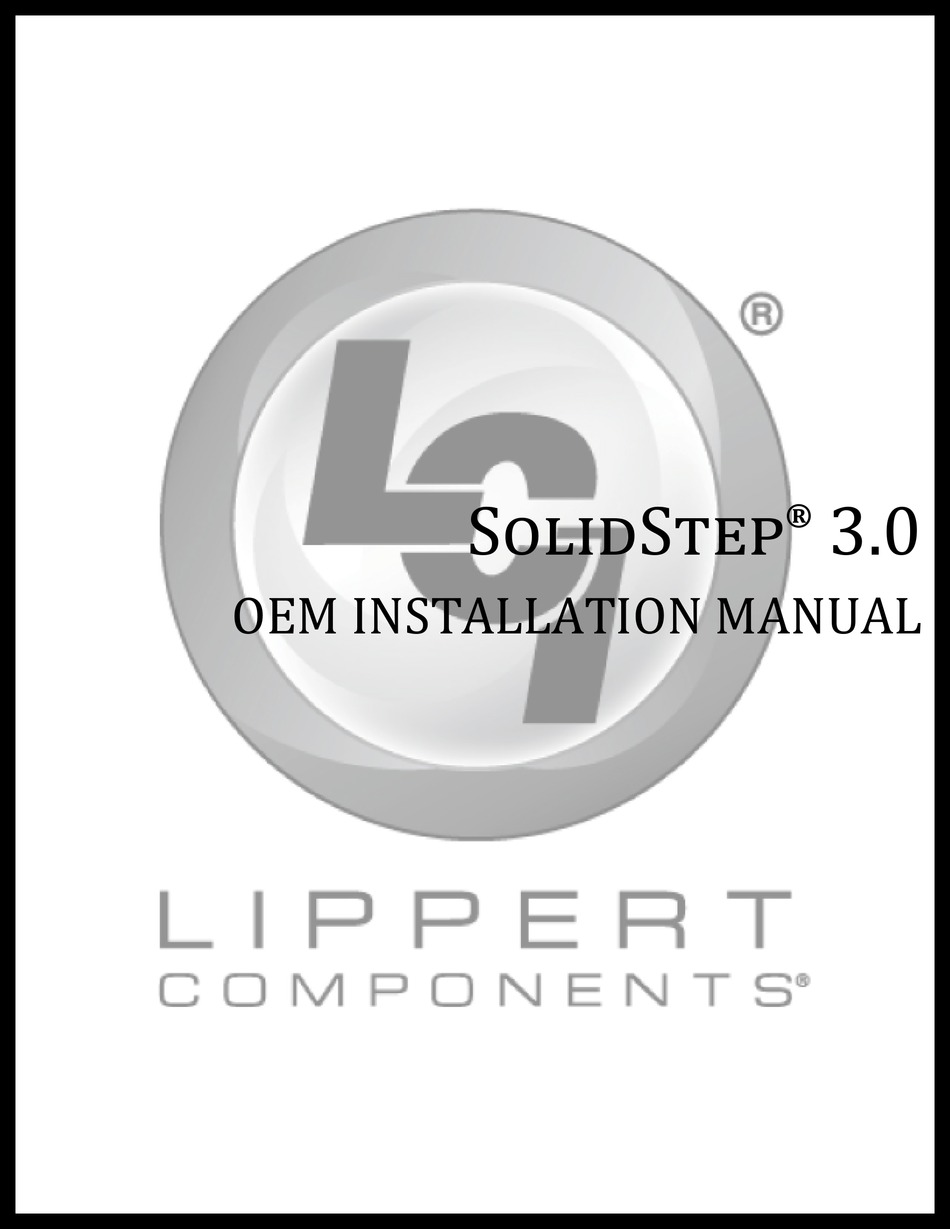

- Page 1 SolidStep OEM INSTALLATION MANUAL ®...

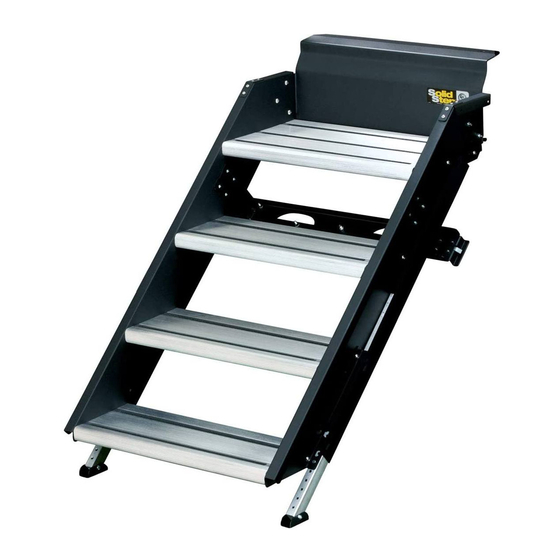

- Page 2 TABLE OF CONTENTS Information Safety Preparation Resources Required Prior to Installation Installation Place Assembly Inside Doorframe Adjust Transport Lock Operation Release Steps Secure Steps Leg Extension Adjustment Information The SolidStep® 3.0 is a trailer entry step assembly that can be mounted to the side of any trailer, providing an ease of entry, regardless of level ground.
- Page 3 SolidStep® Tread Count Part # Floor Height Range (Min-Max) Double Premium 676460, 690836, 690837, 690838 19" - 28" Double Economy 688043, 690833, 690834, 690835 22" - 28" Triple 693808, 693809, 693810, 693811 27" - 36" Quad 693802, 693803, 693804, 693805 35"...
- Page 4 Adjust Transport Lock Do not attempt to lock the step in place, as the latching mechanism may need to be adjusted to the proper left-right orientation and tightened in position before using the transport lock. Attempting to engage the transport lock without proper adjustment may cause damage to the doorframe or step assembly. If adjustment is required, loosen the two bolts (Fig.
- Page 5 Fig. 4 Operation Release Steps Disengage transport lock. Firmly grasp and pull out the vertically stored SolidStep® and firmly rest it on the ground. Adjust leg extensions as needed, see Leg Extension Adjustment section. Secure Steps Retract leg extensions, if desired, see Leg Extension Adjustment section. Lift up SolidStep®...
- Page 6 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
