SWF EMBROIDERY MACHINE
1EH-M-23
[K] [HEAD]
A. Subject
B. Procedure
C. Instruction

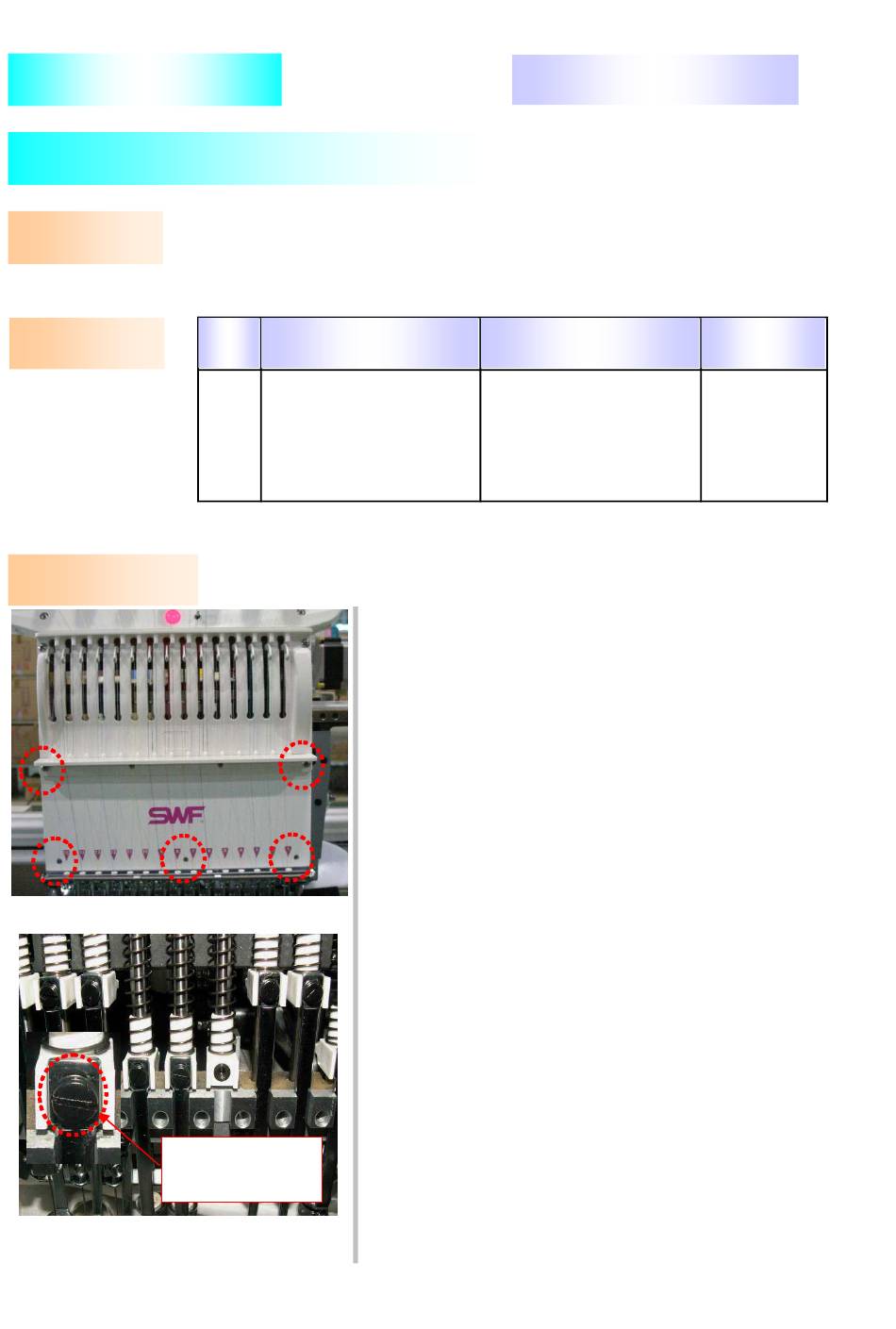

[Picture 1-1]
노루발홀더죔나사
(presser foot holder
screw)
[Picture 1-2]
── Ver. 2009 1st
How to adjust height of presser foot
No.
work order
1
Disassemble HEAD FACE PLATE
2
Release screw of presser foot holder
Adjust presser foot
3
4
Fasten screw of presser foot holder
────────────────────── SunStar Co., Ltd ─
CD CODE No:
+ screw driver
- screw driver
- screw driver
1. Adjusting height of presser foot
1) Disassemble "Head Face Plate"
(Release five screws of head face plate.)
Refer to [Picture 1-1]
2) Release screw of presser foot holder.
(just a little bit)
Refer to [Picture 1-2]
equipment
JIG
Advertisement
Table of Contents
Related Manuals for SunStar 1EH-M-23
Summary of Contents for SunStar 1EH-M-23
- Page 1 (Release five screws of head face plate.) Refer to [Picture 1-1] [Picture 1-1] 2) Release screw of presser foot holder. (just a little bit) Refer to [Picture 1-2] 노루발홀더죔나사 (presser foot holder screw) [Picture 1-2] ── Ver. 2009 1st ────────────────────── SunStar Co., Ltd ─...
- Page 2 4) Fasten screw of presser foot holder to use presser foot he presser foot height jig. Refer to [Picture1-4] [Picture 1-4] 1.0m Presser foot height Jig ※Height of presser foot depends on Fabric. Initial setting:1mm, Light fabric:under 0.7mm, Thick fabric:over 1mm ── Ver. 2009 1st ────────────────────── SunStar Co., Ltd ─...
