The inverter must not be disposed of with the household waste.
1.5 Glossary
AC
Abbreviation for "Alternating Current"
DC
Abbreviation for "Direct Current"
Energy
Energy is measured in Wh (watt hours), kWh (kilowatt hours) or MWh (megawatt hours).
The energy is the power calculated over time. IF,for example, your inverter operates at a
constant power of 4600 W for half an hour and then at a constant power of 2300 W for
another half an hour, it has fed 3450Wh of energy into the power distribution grid within
that hour.
Power
Power is measured in W (watts), kW (kilowatts) or MW (megawatts). Power is an
instantaneous value. It displays the power your inverter is currently feeding into the
power distribution grid.
Power rate
Power rate is the radio of current power feeding into the power distribution grid and the
maximum power of the inverter that can feed into the power distribution grid.
Power factor
Power factor is the ratio of true power or watts to apparent power or volt amps. They are
identical only when current and voltage are in phase than the power factor is 1.0. The
power in an ac circuit is very seldom equal to the direct product of the volts and amperes.
In order to find the power of a single phase ac circuit the product of volts and amperes
must be multiplied by the power factor.
PV
Abbreviation for photovoltaic.
Wireless communication
The external wireless communication technology is a radio technology that allows the
inverter and other communication products to communicate with each other. The
external wireless communication does not require line of sight between the devices and
it is selective purchasing.
2 Safety

2.1 Intended Use

The unit converts the DC current generated by the photovoltaic (PV) modules to grid-
compliant alternating current and performs single-phase feed-in into the electricity
grid.MIN 2500TL-XH/XE,MIN 3000TL-XH/XE,MIN 3600TL-XH/XE,MIN 4200TL-XH/XE,MIN
4600TL-XH/XE,MIN 5000TL-XH/XE ,MIN 6000TL-XH/XE inverters are built according to all
required safety rules. Nevertheless, improper use may cause lethal hazards for the
operator or third parties, or may result in damage to the units and other property.

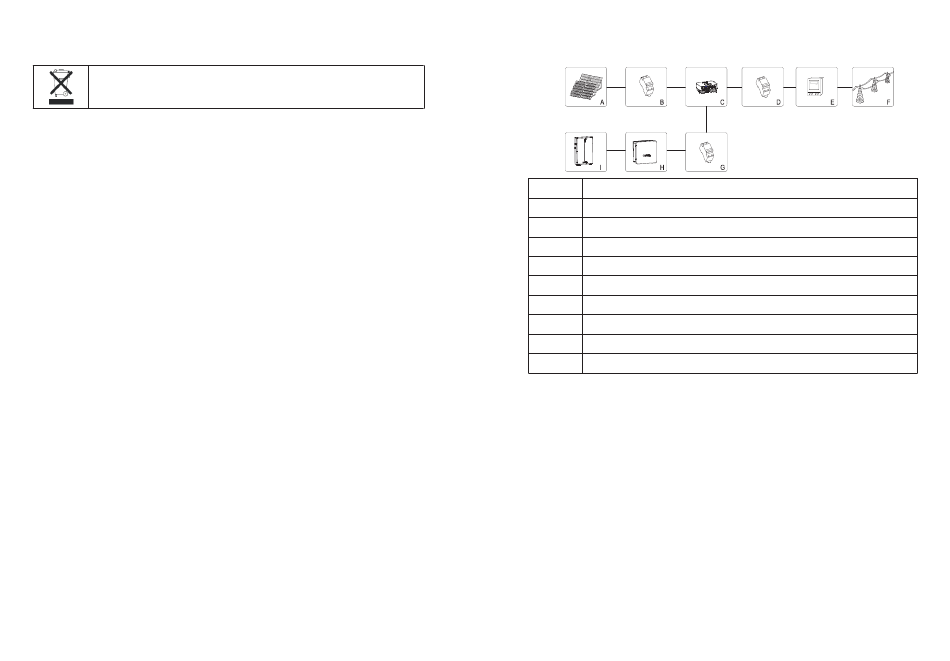

Principle of a PV plant with this MIN TL-XH/XE single-phase inverter
3
Position
A
PV modules
B DC load circuit breaker
Inverter
C
D AC load circuit breaker
E Energy meter
F Utility grid
*
G DC load circuit breaker
*
H Bidirectional DC/DC Box
*
I
The inverter may only be operated with a permanent connection to the public power
grid. The inverter is not intended for mobile use. Any other or additional use is not
considered the intended use. The manufacturer/supplier is not liable for damage caused
by such unintended use. Damage caused by such unintended use is at the sole risk of the
operator.
PV modules Capacitive Discharge Currents
PV modules with large capacities relative to earth, such as thin-film PV modules with
cells on a metallic substrate, may only be used if their coupling capacity does not exceed
1uF. During feed-in operation, a leakage current flows from the cells to earth, the size of
which depends on the manner in which the PV modules are installed (e.g. foil on metal
roof) and on the weather (rain, snow). This "normal" leakage current may not exceed
50mA due to the fact that the inverter would otherwise automatically disconnect from
the electricity grid as a protective measure.

2.2 Qualification of skilled person

This inverter system operates only when properly connected to the AC distribution
network. Before connecting the MIN TL-XH to the power distribution grid, contact the
local power distribution grid company. This connection must be made only by qualified
technical personnel to connect, and only after receiving appropriate approvals, as
required by the local authority having jurisdiction.
Description
Battery Park
4
