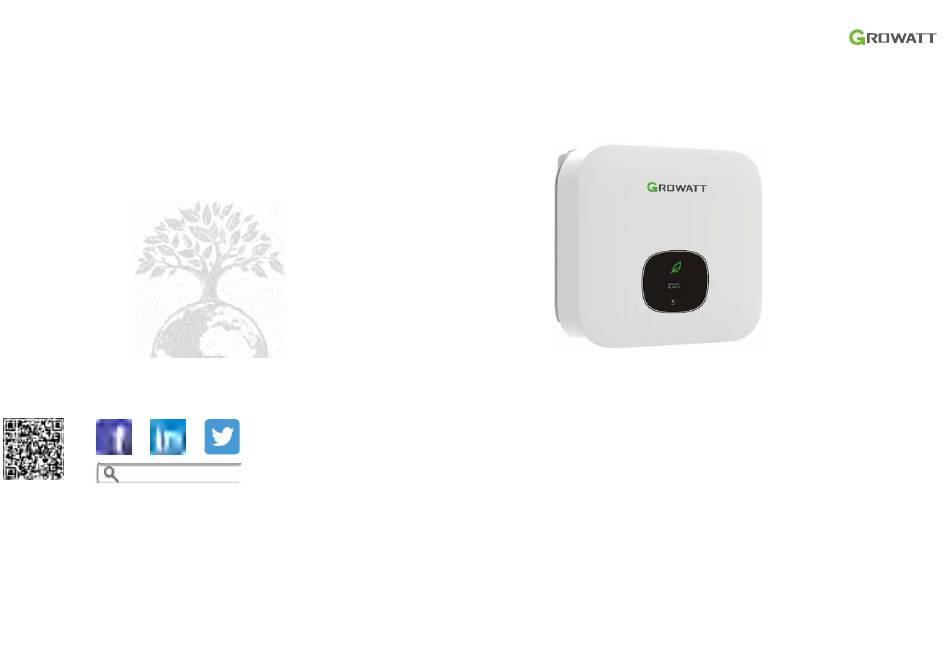

  • Page 1 MIN 2500TL-XH MIN 3000TL-XH MIN 3600TL-XH MIN 4200TL-XH MIN 4600TL-XH MIN 5000TL-XH MIN 6000TL-XH Installation & Operation Manual Growatt New Energy Download Manual Growatt New Energy CO.,LTD 4-13/F,Building A,Sino-German (Europe) Industrial Park,Hangcheng Ave,Bao’an District,Shenzhen,P.R.China +86 0755 2747 1942 service@ginverter.com www.ginverter.com GR-UM-171-A-02...
  • Page 2 Index Notes on this manual Validity Target group Additional information Symbols in this document Glossary Safety Intended use Qualification of skilled person Safety instruction Assembly warnings Electrical connection warnings Operation warnings Product introduction TL-XH overview Type label Size and weight Storage of inverter The advantage of the unit Unpacking and inspection...
  • Page 3 Electrical connection Trouble shooting Safety Error messages displayed on OLED Wiring AC output System fault Connecting the second protective Inverter warning conductor Inverter fault Connecting the PV array Connecting the Battery Connecting signal cable Grounding the inverter Active power control with smart meter ,ripple control signal Manufacturer warranty receiver...

  • Page 4: Notes On This Manual

    Alternating Current (AC) practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the Growatt equipment and/or other equipment connected to the Growatt equipment or personal injury. The inverter has no transformer.

  • Page 5: Intended Use

    1.5 Glossary Abbreviation for "Alternating Current" Abbreviation for "Direct Current" Energy Energy is measured in Wh (watt hours), kWh (kilowatt hours) or MWh (megawatt hours). The energy is the power calculated over time. For example, your inverter operates at a constant power of 4600 W for half an hour and then at a constant power of 2300 W for another half an hour, it has fed 3450Wh of energy into the power distribution grid within that hour.
  • Page 6 Growatt inverter. Must keep the Growatt inverter away from this inverter. Read and follow all instructions, cautions and warnings in this installation children. manual. If questions arise, please contact Growatt's technical services at +86 (0)755 2747  1942. Make all electrical connections (e.g. conductor termination, fuses, PE connection, etc.) in accordance with prevailing...

  • Page 7: Product Description

    3 Product description 3.2 Type label 3.1 TL-XH Overview The type labels provide a unique identification of the inverter (The type of product, Device- specific characteristics, Certificates and approvals). The type labels are on the left-hand side of the enclosure. Position Description Position...

  • Page 8: Size And Weight

     carton is four. 400V DC nominal input voltage  After long term storage, local installer or service department of GROWATT should  perform a comprehensive test before installation. 350V~550V DC input voltage range 3.5 The advantage of the unit...

  • Page 9: Unpacking And Inspection

     Do not stay closer than 20 cm to the inverter for any length of time unless it is absolutely necessary.  Growatt assumes no responsibility for compliance to EMC regulations for the complete system.  All electrical installations shall be done in accordance with the local and national electrical codes.

  • Page 10: Selecting The Installation Location

    5.2 Selecting the installation location  This is guidance for installer to choose a suitable installation location, to avoid  potential damages to device and operators.  The installation location must be suitable for the inverter's weight and dimensions  for a long period time.

  • Page 11: Fixed The Inverter On The Wall

    5.3.2 Fixed the inverter on the wall  Please make sure the inverter is installed at the right place.The inverter can't install  close to trunk. Falling equipment can cause serious or even fatal injury, never mount the inverter on the bracket unless you are sure that the mounting frame is really firmly mounted on the wall after carefully checking.

  • Page 12: Electrical Connection

    You must install a separate single-phase circuit-breaker or other load disconnection unit for each inverter in order to ensure that the inverter can be safely disconnected under load. We suggest you choice the AC breaker rating current in this table: MIN 2500TL-XH 16A/230V MIN 3000TL-XH...
  • Page 13 Finally, Push or screw the threaded sleeve to connection terminal until both are locked tightly on the inverter. Push the threaded sleeve into the socket, Tighten up the cap on the terminal.
  • Page 14 To remove the AC connector, press the bayonet out of the slot with a small screwdriver and pull it out,or unscrew the threaded sleeve,then pull it out. Wire suggestion length Max. cable length Conductor cross section MIN 2500 TL-XH MIN 3000 TL-XH MIN 3600 TL-XH 4 mm²...
  • Page 15 6.3 Connecting the second protective conductor If the inverter is not equipped with a DC switch but this is mandatory in the In some installation countries, a second protective conductor is required to prevent a touch country of installation, install an external DC switch. current in the event of a malfunction in the original protective conductor.For installation The following limit values at the DC input of the inverter must not be countries falling within the scope of validity of the IEC standard 62109, you must install the...

  • Page 16: Connecting The Battery

    6.5.2 Connecting the Battery Danger to life due to lethal voltages! Before connecting the Battery, ensure that it does not connect any power supply. NEVER connect or disconnect the Battery. Forbidden to reverse the positive and negative poles of the Battery and the inverter.

  • Page 17: Connecting Signal Cable

    6.5.3 Connecting to Battery Pack Procedure This series inverter support to connect lithium ion battery pack, the lithium ion battery pack Step 1 Insert the stripped and bared cable through pressure screw, seal ring, threaded has its own battery management system, the bidirectional DC/DC box connect to battery pack by RS485 or CAN,the XH series inverters connect to DC-DC box by RS485.

  • Page 18: Grounding The Inverter

    Uninstall signal connector Step 3 Push the threaded sleeve to connection terminal until both are locked tightly on the inverter. The inverter side 6.8 Active power control with smart meter , ripple control signal receiver The position of export limitation Meter must between the Inverter & Load and gird.
  • Page 19 Active power control with a Radio Ripple Control Receiver(RRCR). General Specifications Voltage AC (Un) 230V Voltage Range 176~276V AC Base Current (Ib) 0.1V AC Power consumption <2W/10VA Frequency 50/ 60Hz(±10%) AC voltage withstand 4KV for 1 minute Impulse voltage withstand 6KV-1.2uS waveform Overcurrent withstand 20Imax for 0.5s...
  • Page 20 Information DRMS application description  Only applicable to AS/NZS4777.2:2015.  DRM0-DRM8 are available. Damage to the inverter due to moisture and dust penetration  Make sure the cable gland has been tightened firmly.  If the cable gland are not mounted properly, the inverter can CAUTION be destroyed due to moisture and dust penetration.
  • Page 21 6.9.2 Inverter demand response modes-Power Control Interface(PCI) for EU This series inverter has the function of demand response modes, We use 8Pin COM PORT DRMS application description  as Power Control Interface(PCI) for European models. Only applicable to AS/NZS4777.2:2015.  DRM0-DRM8 are available.
  • Page 22 Pin7 the system, repeat step1 to step3.If the AFCI self-test continues to fail,cut off all power supply connection of the inverter,and contact Growatt to solve this problem Active power control and reactive power control are enabled separately 6.10 Electric arc hazards 6.11...
  • Page 23 When inverter powered on, OLED will light automatically. Once the PV power is sufficient, OLED displays 7 Commissioning the following: Growatt Country/Aera PV inverter XXXX Press the touch key once a second to scroll through the different Country, showing on the screen will Do not disconnect the PV&BAT connectors under load.

  • Page 24: General Setting

    7.1.4 Check firmware version,Region,Country/Area and Power Quality Response Modes Single touch to switch display Double touch to enter next stage menu. Model:S03B00D 00T00P00U00M0 Power XXXXw XXXvXXXXw FW Ver:AK X.X Etoday XXXkWh XXXvXXXXw Country/Aera Australia Etotal Set parameter XXXXw Region: A/B/C/NZ Grid More Info XXXvXXXHz...
  • Page 25 7.2.1 Set inverter COM address Single touch make the number up.Double touch to confirm the setting. Set inverter date as described below: The default COM address is 1.We can change COM address as described below:Single touch to 20NN-NN-18 switch display or make the number + 1.Double touch to confirm the setting. Set inverter COM address as described below: Address Address...
  • Page 26 7.3 Advanced setting 7.3.1 Reset Country,Region and Power Quality Response Modes（PQRM） Reset PQRM Single touch to switch display or make the number +1. Double touch to confirm you setting. General Password Input right password,you can change Country/Area,Region and PQRM settings. Set parameter Advanced Reset Country...
  • Page 27 7.3.4 Backup mode setting the OLED, Single touch to switch display or make the number + 1.Double touch to confirm the setting, as described below: When the –XH series inverter is used with the Battery and the Backup Interface box,the Grid is abnormal,the inverter can work in backup mode to provide energy to the off-grid ExportLimit ExportLimit...

  • Page 28: Communication Interfaces

    7.4 Communication interfaces Double Double touch Double touch Double touch touch LoadFirst 00-01 LoadFirst 00-01 LoadFirst 00-01 LoadFirst 00-01 TimePeriod Set Time1: Disable Time1: Disable Time1: Disable Time1: Disable 7.4.1 SYS COM Port Multiple single Multiple single Multiple single touch touch touch Single touch...

  • Page 29: Startup And Shutdown The Inverter

    regular intervals.If there is any visible damage to the DC Disconnect, or visible discoloration or 8 Startup and Shutdown the inverter damage to the cables, contact the installer.  Once a year, turn the rotary switch of the DC Disconnect from the On position to the Off position 5 times in succession.

  • Page 30: Eu Declaration Of Conformity

    An error message will be displayed on the OLED screen when a fault occurs. The faults consist of system fault and inverter fault. You may be advised to contact Growatt in some situation, please provide the following information. Information concerning the inverter: ...

  • Page 31: System Fault

    2.Restart the inverter. If the warning Warning 203 Check the impedance of PV (+) & PV1 or PV2 Circuit short still exist, please contact Growatt Insulation problem customer service to replace the PV (-) between ground (must be Error: 203 more than 25 KΩ...

  • Page 32: Manufacturer Warranty

    1.If the ambient temperature of inverter is 2. Remove all connection cables from the inverter. Error: 408 Over Temperature lower than 60° C, restart inverter, if error message still exists, contact Growatt. 1.Restart inverter, if problem still Error: 409 Bus over voltage Wait 20 minutes before disassembling until the housing has cooled down.

  • Page 33: Technical Data

    14 Technical Data 14.1 Specification 45-55Hz/55-65Hz AC grid frequency range Rated output current 10.9A 15.7A 18.3A Model MIN 2500 MIN 3000 MIN 3600 MIN 4200 TL-XH TL-XH TL-XH TL-XH Max. output current 11.3A 13.6A Specifications Max. inrush current ＜10A/5ms PV input quantities (Peak value/duration time) Max.
  • Page 34 General data Dimensions (W / H / D) in mm Weight 10.8 kg –25 ° C ... +60 ° C Operating temperature range MIN 4600 MIN 5000 MIN 6000 Noise emission (typical) ≤25 dB(A) TL-XH TL-XH TL-XH Specifications 4000m PV input quantities <5W@storage mode Max.
  • Page 35 Rated output current 21.7A 4000m Nominal output current 20.9A 22.7A 27.2A <5W@storage mode Inrush current ＜10A/5ms Topology Non-isolated ＜62A/20us M a x . o u t p u t o v e r l o a d Overvoltage category PV:II AC:III BAT:II Others:I protection Cooling Natural convection...

  • Page 36: Compliance Certificates

    Shine Master Shine master for inverter Shipped to a Growatt service centre for repair, or repaired on-site, or exchanged for a replacement device of equivalent value according to model and age. The warranty shall not cover transportation costs in connection with the return of defective GROWATT NEW ENERGY Co.,LTD...
