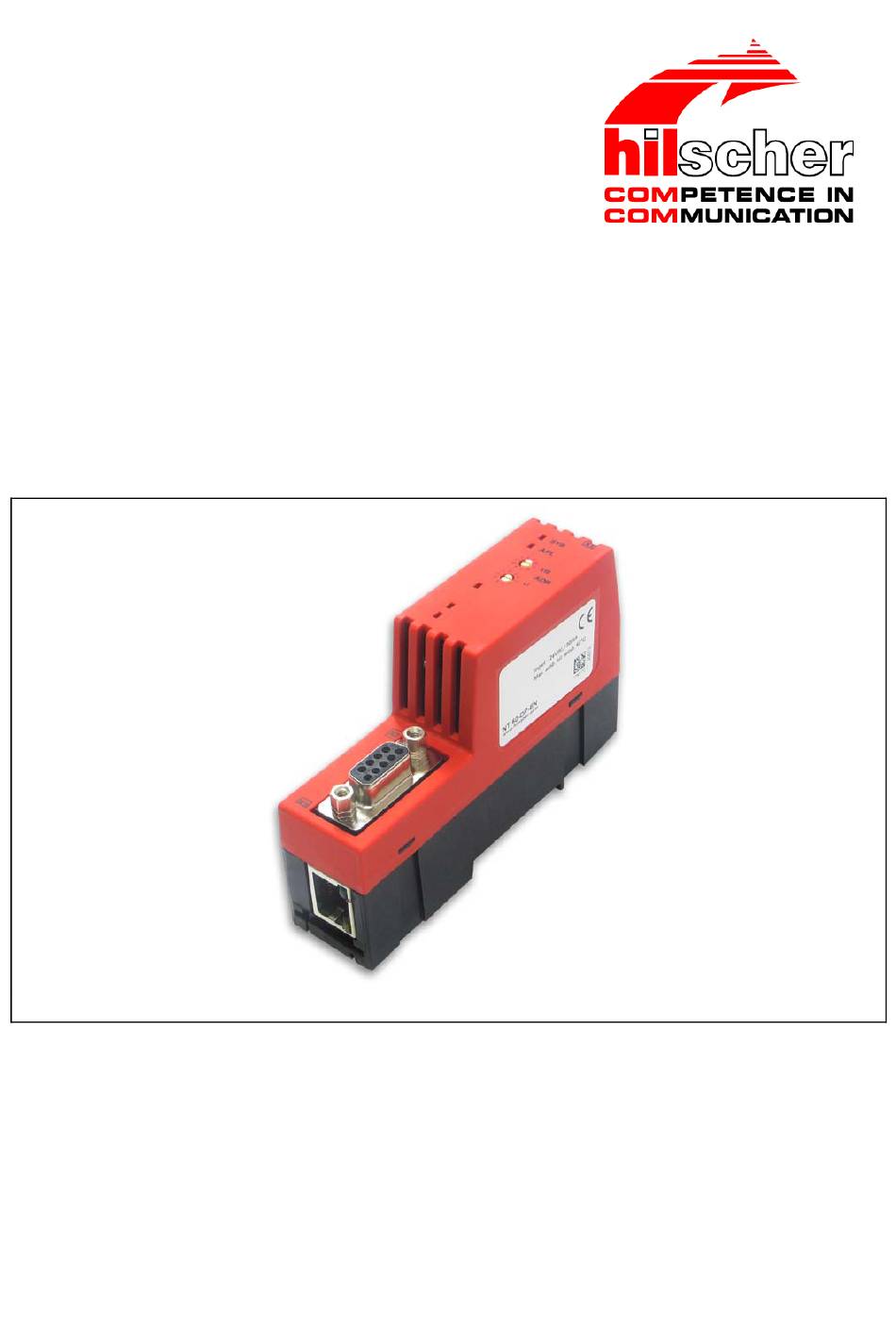

- Page 1 User Manual netTAP NT 50 Gateway Devices Hilscher Gesellschaft für Systemautomation mbH www.hilscher.com DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public...
-
Page 2: Table Of Contents
Range of Values for the Address Switches............24 Connections......................25 4.3.1 X1 Top Connection.....................25 4.3.2 X2 Front Connection...................25 4.3.3 X3 Bottom Connection ..................28 netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... - Page 3 PROFINET IO-RT-Device ..................58 Technical Data Fieldbus Protocols ................59 9.3.1 CANopen Master Link ..................59 9.3.2 CANopen Slave ....................60 9.3.3 CC-Link Slave.....................61 netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
- Page 4 Disposal of Waste Electronic Equipment ..............83 APPENDIX ........................84 12.1 List of Figures ......................84 12.2 List of Tables ......................84 12.3 Contacts........................86 netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
-
Page 5: Introduction
5/86 1 Introduction About the User Manual This user manual describes the hardware, installation, commissioning, and operation of the netTAP NT 50 series of gateways. 1.1.1 Obligation to read and understand the Manual Important! ! To avoid personal injury and to avoid property damage to your system... -
Page 6: List Of Revisions
24 modules when using manual setting, - Address switch added. 2013-02-04 1.3.3 Section Documentation for netTAP NT 50 updated. Table 1: List of Revisions netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 7: Conventions In This Manual
NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 8: Reference To Hardware, Software And Firmware
1.351.x.x or higher Table 3: Reference to Software Firmware Firmware for the protocol conversion see section Protocol Conversions on page 21. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 9: Contents Of The Product Dvd
Video Tutorial in AVI Format Tutorials Workshop not relevant for NT 50 Table 4: Directory Structure of the gateway solution DVD netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 10: Device Description Files
NT50_CC_CCS_IO.csp (for one Remote IO Station) CANopen Slave NT50_CO_COS.EDS DeviceNet Slave NT50_DN_DNS.EDS EtherNet/IP Adapter HILSCHER NT 50-EN EIS V1.1.EDS PROFIBUS-DP Slave HIL_0C99.GSD PROFINET IO Device GSDML-V2.2-HILSCHER-NT 50-EN PNS-20120806- 143000.xml Table 5: Device Description Files for netTAP NT 50 on the DVD The device description files are for the configuration of the used master. -
Page 11: Documentation For Nettap Nt 50
EtherNetIP Generic Adapter DTM OI xx EN.pdf tion Manual Table 7: Additional Documentation for netTAP NT 50 with EtherNet/IP Scanner/Master Link netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... - Page 12 ASCII Handshake Mechanism ASCII – Handshake Mechanism UM xx EN.pdf Table 12: Additional Documentation for netTAP NT 50 with ASCII netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
-
Page 13: Legal Notes
There is no entitlement to revisions of delivered documents. The manual delivered with the product applies. Hilscher Gesellschaft für Systemautomation mbH is not liable under any circumstances for direct, indirect, incidental or follow-on damage or loss of earnings resulting from the use of the information contained in this publica- tion. -
Page 14: Exclusion Of Liability
1.4.3 Exclusion of Liability The software was produced and tested with utmost care by Hilscher Ge- sellschaft für Systemautomation mbH and is made available as is. No war- ranty can be assumed for the performance and flawlessness of the soft- ware for all usage conditions and cases and for the results produced when utilized by the user. -
Page 15: Export Regulations
PROFIBUS and PROFINET are registered trademarks of PROFIBUS Inter- national, Karlsruhe. All other mentioned trademarks are property of their respective legal own- ers. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 16: Safety
(IEC 60950-1:2005, modified); German Edition EN 60950-1:2006 EN 61340-5-1 and EN 61340-5-2 as well as IEC 61340-5-1 and IEC 61340-5-2 netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 17: Safety Instructions To Avoid Personal Injury
To prevent property damage, do not remove this device under runtime con- ditions before you can not guarantee further a safe and secure operation of the plant. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 18: Labeling Of Safety Messages
ANSI Z535 standard, refer to reference safety [S1]. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 19: Description And Requirements
Information about the configuration of the device with SYCON.net soft- ware is in the manual „netGateway_DTM_en.pdf“ on the product DVD in the directory „Documentation“. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 20: Device Types And Protocol Conversions
Supported Communication System Ethernet (1* RJ45) Serial (Modbus RTU or ASCII) (RJ45) Table 16: Network on port X3 (Secondary Network) netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 21: Protocol Conversions
PROFINET IO Controller (1) N5MBRPNM.NXF Open Modbus/TCP N5MBROMB.NXF Table 17: List of Protocol Conversion and NT 50 Device Type netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 22: System Requirements
Note: If the project file is saved and opened again or it is used on another PC, the system requirements need to match. Particularly the DTMs need to be installed on the used PC. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 23: Device Drawings And Connections
In the drawing above: Connector for Power Supply X2 and X3 Communication interfaces Dimensions of the power supply plug X1 in mm netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 24: Positions Of Leds And Control Elements
1 … 63 configuration 1 … 62 1 … 61 Figure 4: Range of Values for the Address Switches netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 25: Connections
Socket, female Table 20: CC-Link Pin Assignment Please note the wiring instructions in section CC-Link on page 76. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... - Page 26 A pull down resistor of 100 kΩ is connected device internally at “Rx / Tx -“. Please note the wiring instructions in section PROFIBUS on page 71. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
- Page 27 A pull down resistor of 10 kΩ is connected device internally at “RxD/TxD -“. Please note the wiring instructions in section RS-485 on page 81. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
-
Page 28: X3 Bottom Connection
If you transfer these signal via an Ethernet cable to the connected device (e. g. to a switch) this may cause a device damage of the used devices. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... - Page 29 NT 50 device. Diagnostic is not possible while the RS-232 interface is used with the cable shown at the right. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
- Page 30 NT 50 device. Diagnostic is not possible while the RS-422 interface is used with the cable shown at the right. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
- Page 31 NT 50 device. Diagnostic is not possible while the RS-485 interface is used with the cable shown at the right. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
-
Page 32: Schematic Diagram - Galvanic Isolation
6 * 75 Ω, 1 nF / 2000 V nection of RJ 45 sockets Table 30: Coupling NT 50-xx-EN Devices netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 33: Galvanic Isolation Of Nt 50-Xx-Rs
Directly via the metal connection of RJ 45 RS422 X3 Teil sockets RS485 Table 31: Coupling NT 50-xx-RS Devices netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 34: Galvanic Isolation Of Nt 50-Rs-En
6 * 75Ω + 10 nF / 2000 V connection of RJ 45 sockets Table 32: Coupling NT 50-RS-EN Devices netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 35: Nt 50 Mounting And Dismounting
Figure 9: Removing the NT 50 device from the Top-Hat Rail netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 36: Commissioning
Then the device has to be send back for repair to the manufacturer. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 37: Potential Differences For Device Types Nt 50-Xx-Rs
This process can take several sec- onds (appr. 4 seconds) depending on the size of the configuration data. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 38: Troubleshooting
For some protocols it is necessary to synchronize data via a handshake be- tween the gateway and the superordinated PLC. Please make sure that the handshake mechanism is kept. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 39: Failure In 10 Mbit/S Half Duplex Mode And Workaround
‘Y’ at position 5 (nnnnYnnnn). Reference “Summary of 10BT problem on EthernetPHY”, RenesasElectronics Europe, April 27, 2010 netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 40: Leds
Missing configuration, error in con- (red) figuration or internal error Figure 10: LEDs netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 41: Leds Real Time Ethernet Protocols
LED yellow Number in Flashing The device sends/receives Ethernet frames (yellow) the device drawing Table 34: LEDs EtherNet/IP Scanner (Master) netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 42: Leds Ethernet/Ip Adapter (Slave)
LED yellow Number in Flashing The device sends/receives Ethernet frames (yellow) the device drawing: Table 35: LEDs EtherNet/IP Adapter (Slave) netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 43: Leds Open Modbus/Tcp
LED yellow Number Flashing The device sends/receives Ethernet frames (yellow) in the device drawing: Table 36: LEDs Open Modbus/TCP netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 44: Leds Profinet Io Controller
(off) RX/TX LED yellow RJ45 Flashing The device sends/receives Ethernet frames (yel- low) Table 37: LEDs PROFINET IO-RT Controller netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 45: Leds Profinet Io-Rt-Device
The device has no connection to the Ethernet (off) RX/TX/RJ45 LED yellow Flashing The device sends/receives Ethernet frames (yel- low) Table 38: LEDs PROFINET IO-RT-Device netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 46: Leds Fieldbus Protocols
Flashing cy- STOP, no communication, connection error. (red) clic Flashing Not configured. (red) acyclic Table 40: LEDs PROFIBUS DP Slave netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 47: Led Canopen Master
(200 ms). The sequence is finished by a long off phase (1,000 ms). Table 42: LED State Definition for CANopen Master for the CAN LED netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 48: Led Canopen Slave
(200 ms). The sequence is finished by a long off phase (1,000 ms). Table 44: LED State Definition for CANopen Slave for the CAN LED netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 49: Led Devicenet Master
Connection timeout (red) After start of the device and during duplicate MAC-ID check (off) Table 46: LEDs DeviceNet Slave netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 50: Led Cc-Link Slave
3. Baud rate switch setting error during cancellation of reset (5 or greater) Table 47: LEDs CC-Link Slave X2 netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 51: Leds Serial Protocols
The device is not configured (red) with 1 Hz During initialisation or missing power supply (off) Table 49: LEDs ASCII Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 52: Technical Data
Emission CISPR 11 Class A Immunity EN 61131-2:2003 Configuration Software SYCON.net Table 50: Technical Data NT 50 (Part 1) netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... - Page 53 NT 50-xx-RS Ethernet and serial interface to- gether in one connector Table 51: Technical Data NT 50 (Part 2) netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
-
Page 54: Technical Data Of Real-Time Ethernet Communication Protocols
CIP Sync Services are not implemented TAGs are not supported Reference to firmware/stack version V2.4.x.x Table 52: Technical Data EtherNet/IP Scanner (Master) Link Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 55: Ethernet/Ip Adapter (Slave)
ACD (Address Conflict Detection) not supported DLR not supported (ring topology) Reference to firmware/stack version V2.1.x.x Table 53: Technical Data EtherNet/IP Adapter (Slave) Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 56: Open Modbus/Tcp
Data transport layer Ethernet II, IEEE 802.3 Reference to stack version V2.5.x.x Table 54: Technical Data Open Modbus/TCP Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 57: Profinet Io-Rt-Controller Link
WriteMultiple-Record service is not supported Reference to firmware/stack version V2.5.x.x Table 55: Technical Data PROFINET IO RT Controller Link Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 58: Profinet Io-Rt-Device
Multiple WriteRequests are not supported Reference to stack version V3.4.x.x Table 56: Technical Data PROFINET IO RT Device Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 59: Technical Data Fieldbus Protocols
SDO-Upload/Download for user data transfer not supported Reference to firmware/stack version V2.2.x.x Table 57: Technical Data CANopen Master Link Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 60: Canopen Slave
The address switches can be activated with SYCON.net version 1.351 (or higher) and can be used with firmware version 1.1 (or higher). netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 61: Cc-Link Slave
The address switches can be activated with SYCON.net version 1.351 (or higher) and can be used with firmware version 1.1 (or higher). netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 62: Devicenet Master Link
User data transfer through the gateway only via IO connections Reference to firmware/stack version V2.2.x.x Table 60: Technical Data DeviceNet Master Link Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 63: Devicenet Slave
The address switches can be activated with SYCON.net version 1.351 (or higher) and can be used with firmware version 1.1 (or higher). netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 64: Profibus-Dp Master Link
DP V2 services are not implemented Reference to firmware/stack version V2.3.x.x Table 62: Technical Data PROFIBUS DP Master Link Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 65: Profibus Dp Slave
The address switches can be activated with SYCON.net version 1.351 (or higher) and can be used with firmware version 1.1 (or higher). netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 66: Technical Data Serial Protocols
Character(s) without meaning (fix length) Checksum methods CRC8, CRC16, CRC32, Exor Reference to stack version V1.0.x.x Table 64: Technical Data ASCII Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 67: Modbus Rtu Master/Slave
None, even, odd Limitations Broadcast not supported Reference to stack version V1.3.x.x Table 65: Technical Data Modbus RTU Protocol netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 68: Wiring Instructions
EMC influence caused by switching operation from cables transfer- ring energy. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 69: Assembly Of D-Sub Connectors
Shrinking tube or nozzle to cover the shielding and for bend protec- tion Cable shielding pulled back over the cable sheathing Metallic or metallized connector housing netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 70: Ethernet
100 MBit/s and in full-duplex mode. For further information refer to section Failure in 10 MBit/s Half Duplex Mode and Workaround on page 39. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 71: Profibus
If the Hilscher device is linked with only one other device on the bus, they must be at the ends of the bus line. The reason is that these devices must deliver the power supply for the termination resistors. - Page 72 Capacity < 30 pF/m Loop resistance 110 Ω/km Wire gauge 0,64 mm Table 68: Characteristics of PROFIBUS certified Cable netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
-
Page 73: Canopen
Table 70: CAN Segment Length in dependence of the Baud rate or corresponding Loop Re- sistance and Wire Gauge netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 74: Devicenet
Further devices can be connected via T-stubs to the bus cable. The maxi- mum length of all T-stubs is 6 m. The whole length of the bus cable and all netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... - Page 75 Table 74: DeviceNet Segment Length in dependence of the Baud rate The DeviceNet cable contains the data line cables and the power supply cables. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
-
Page 76: Cc-Link
July 2004. Also further details are contained there. The document is ready for download on http://www.cc-link.org. Note: For CC-Link V2.00 the cable specification V1.10 has not been changed. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... - Page 77 1 m or more 0.2 m or more ter and/or intelligent device Table 77: Minimum distance between two devices netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
- Page 78 115.200 <2 m Higher length can be achieved with cables of extraordinarily low capaci- tance. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
- Page 79 The pull-up and pull-down resistors should have a resistance of 390 Ω up to 650 Ω. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
- Page 80 600 m 500 kBit/s 0,6 m 1200 m 100 kBit/s 1,5 m Table 79: RS-422 Conductor Length and Transmission Rates netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
- Page 81 MBit/s. The maximum useable transmission rate depends on the technical data of the used devices. The following illustration shows wiring for RS-485: Figure 18: RS-485 Wiring netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
- Page 82 0,3 m 600 m 500 kBit/s 0,6 m 1200 m 100 kBit/s 1,5 m Table 81: RS-485 Cable Lengths netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
-
Page 83: Decommissioning/Disposal
As a consumer you are legally obliged to dispose all Waste electronic equipment professionally, as to the public collection. netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... -
Page 84: Appendix
Table 29: RJ45 Ethernet / RS-485 Pin Assignment Table 30: Coupling NT 50-xx-EN Devices Table 31: Coupling NT 50-xx-RS Devices Table 32: Coupling NT 50-RS-EN Devices netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013... - Page 85 Table 79: RS-422 Conductor Length and Transmission Rates Table 80: Electric Requirements to RS-485 Cables Table 81: RS-485 Cable Lengths netTAP NT 50 | Gateway Devices DOC091202UM09EN | Revision 9 | English | 2013-02 | Released | Public © Hilscher, 2010-2013...
-
Page 86: Contacts
+49 (0) 6190 9907-50 E-Mail: info@hilscher.com Support Phone: +49 (0) 6190 9907-99 E-Mail: de.support@hilscher.com Subsidiaries China Japan Hilscher Systemautomation (Shanghai) Co. Ltd. Hilscher Japan KK 200010 Shanghai Tokyo, 160-0022 Phone: +86 (0) 21-6355-5161 Phone: +81 (0) 3-5362-0521 E-Mail: info@hilscher.cn E-Mail: info@hilscher.jp...
