- Page 1 Component replacement instructions Hilscher Gateway NT50 CO-EN BW_netTAP50_Gateway_00_en Document ID: EMGDES-00011484...
- Page 2 Table of contents Hilscher Gateway NT50 CO-EN Table of contents Component replacement instructions Unpacking the new gateway Removing the old gateway Installing the new gateway Configuring the new NT50-gateway BW_netTAP50_Gateway_00_en EMG Automation GmbH...
- Page 3 Cordon-off access routes during repair work (for example, red/white tape)! Tools required: ▪ Screwdriver (5 mm blade width) ▪ Ethernet standard cable ▪ PC with Hilscher software – SYCON.NET – Ethernet Device Configuration Unpacking the new gateway Examine the device for visible damage or contamination.

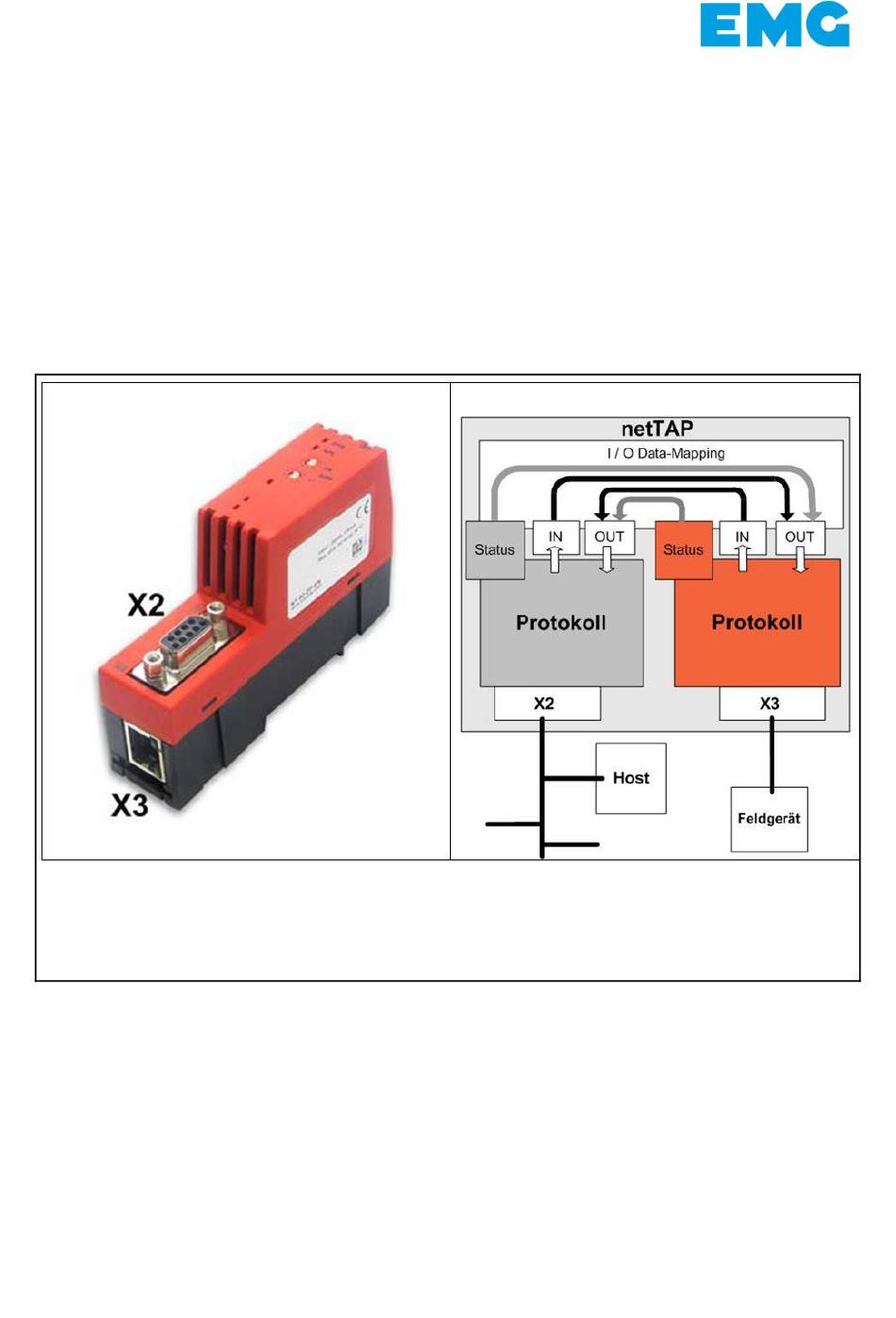

- Page 4 The NT50-gateway transfers the I/O data in both directions, thereby enabling data exchange between two networks. The NT50-gateway is configured using the tool "SYCON.NET". (see: www.hilscher.com) This software can also be found on the CD in the control cabinet. Before starting the software please connect the PC to the gateway via CAT5 cable (RJ45) and set the network interface card on the PC to IP address: 192.168.0.1.
- Page 5 Component replacement instructions Hilscher Gateway NT50 CO-EN Basic configuration for the gateway Select the gateway with the right mouse button Now search for the gateway for basic configuration, then apply the settings for the search process. The gateway is searched for in the set IP address range.
- Page 6 Component replacement instructions Hilscher Gateway NT50 CO-EN The temporary IP address is deleted again after every download process (restart of the gateway). An error message is displayed. CAUTION The IP address will now need to be re-entered ("Ether- net Device Configuration" programme, see point 1 - 5), after which the device will need to be located again under SYCON.net.
- Page 7 Component replacement instructions Hilscher Gateway NT50 CO-EN The configured data must be ultimately connected (mapped) between X2 and X3. This can be implement- ed manually or automatically (recommended). To do this, select the entry "From Port3 to Port2" from the selection field underneath the list.
