Step 5 - Remove the Housing
(optional)
•

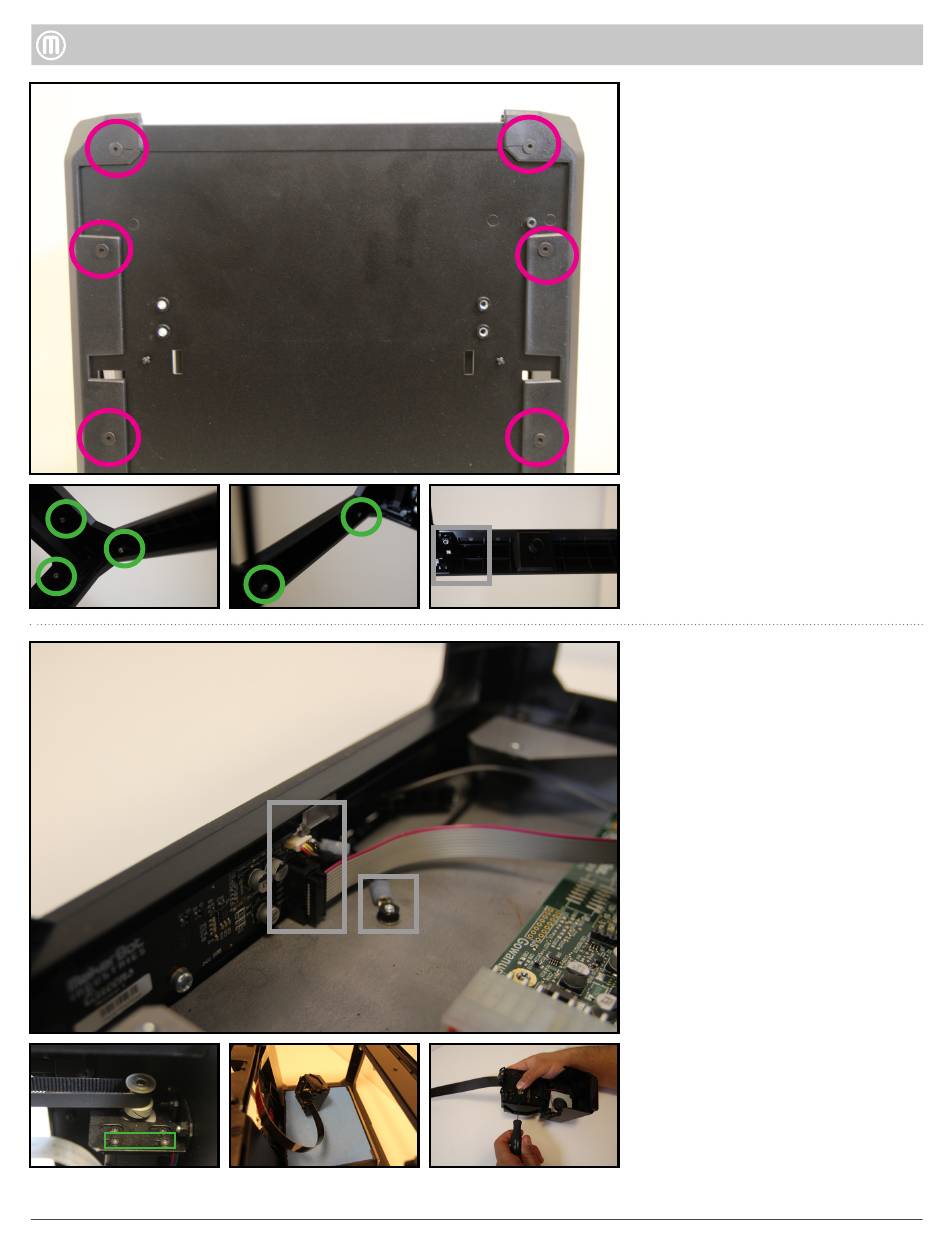

Remove the following Screws:
•
eight (8) flathead bolts using a
2.5mm hex driver from the edges
of the Back Panel
•
one (1) tension bolt by using a
2.5mm hex driver from the Back
Panel.
•
three (3) button head Torx bolts
by using a T20 driver from the
Side Panels via the inside of the
printer.
•
two (2) button head Torx bolts by
using a T20 driver from the front
left and middle of the Inside Base.
•
two (2) button head Torx bolts by
using a T20 driver from the front
left and middle of the Inside Base.
•
one (1) lock washer nut and the
ground wire using a 7mm nut
drivert
•
four (4) button head Torx bolts by
using a T15 driver located on the
upper Inside Panels.
•
Unplug the Camera Wire at the
bottom of the Base from the
Queens PCB.
•
Unplug Ribbon Cable at the
bottom of the base from the
Queens PCB.
•
Loosen two (2) button head bolts
located on the left Gantry Motor
Mount (frame side).
•
Remove the Gantry Belts from the
Gantry Pulley.
