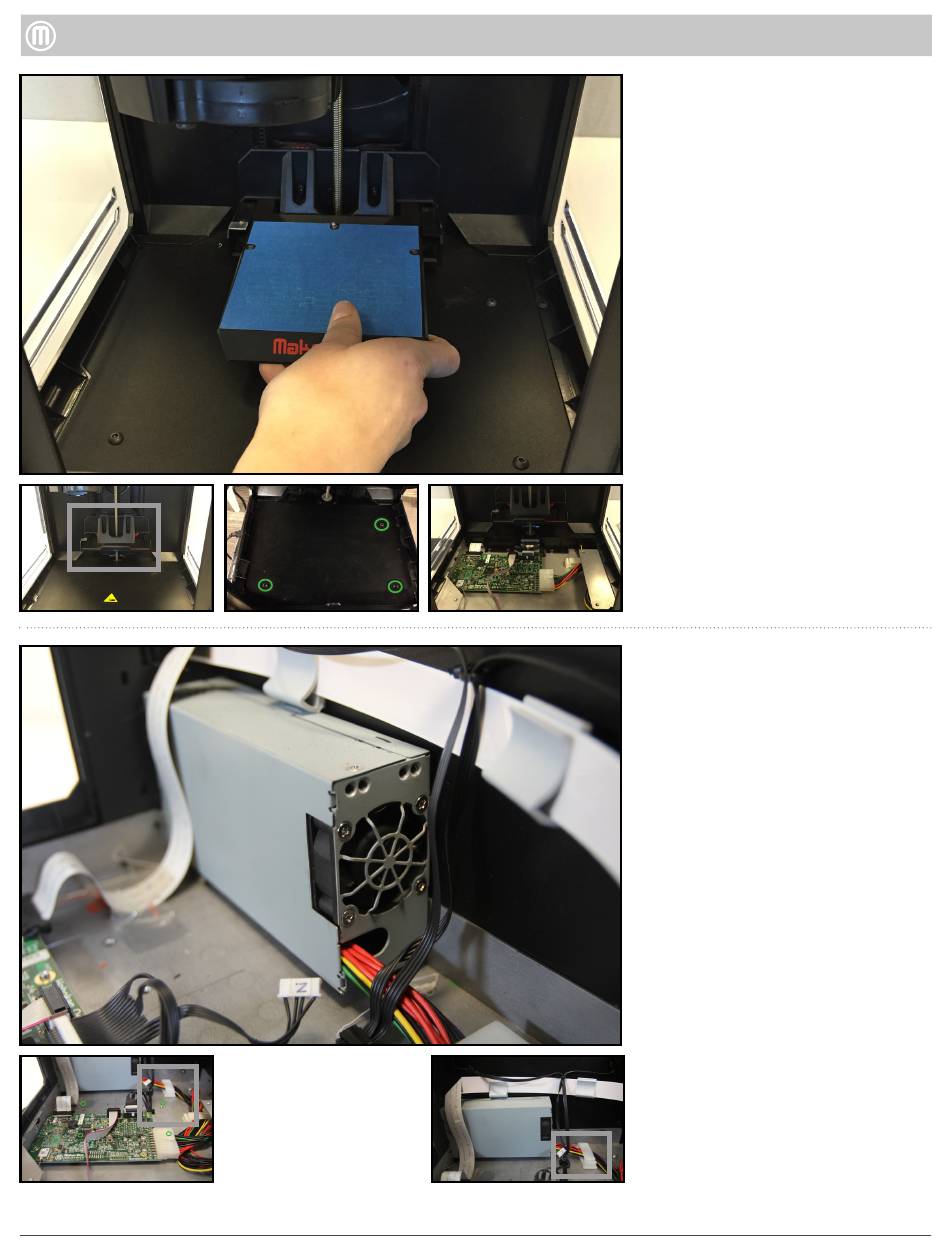

Step 2 - Removing the Floor
Plate
•
Manually rotate the threaded
z-axis threaded rod clockwise to
raise the Build Plate Holder half
way from the Floor Plate. Pull
the Build Plate forward to remove
from the Build Plate Holder.
•
Remove the three (3) button head
Torx bolts by using a T20 driver.
Lift up the Floor Plate from the
printer to remove.
Step 4 - Remove the Power
Supply
•
Remove three (3) button head
Torx bolts from the rear left side of
the Mini.
•
Unclip connector from plastic
clips.
•
Disconnect the twenty-pin
connector from the Brooklyn PCB.
•
Pull Power Supply toward you to
remove it out of the slot.
