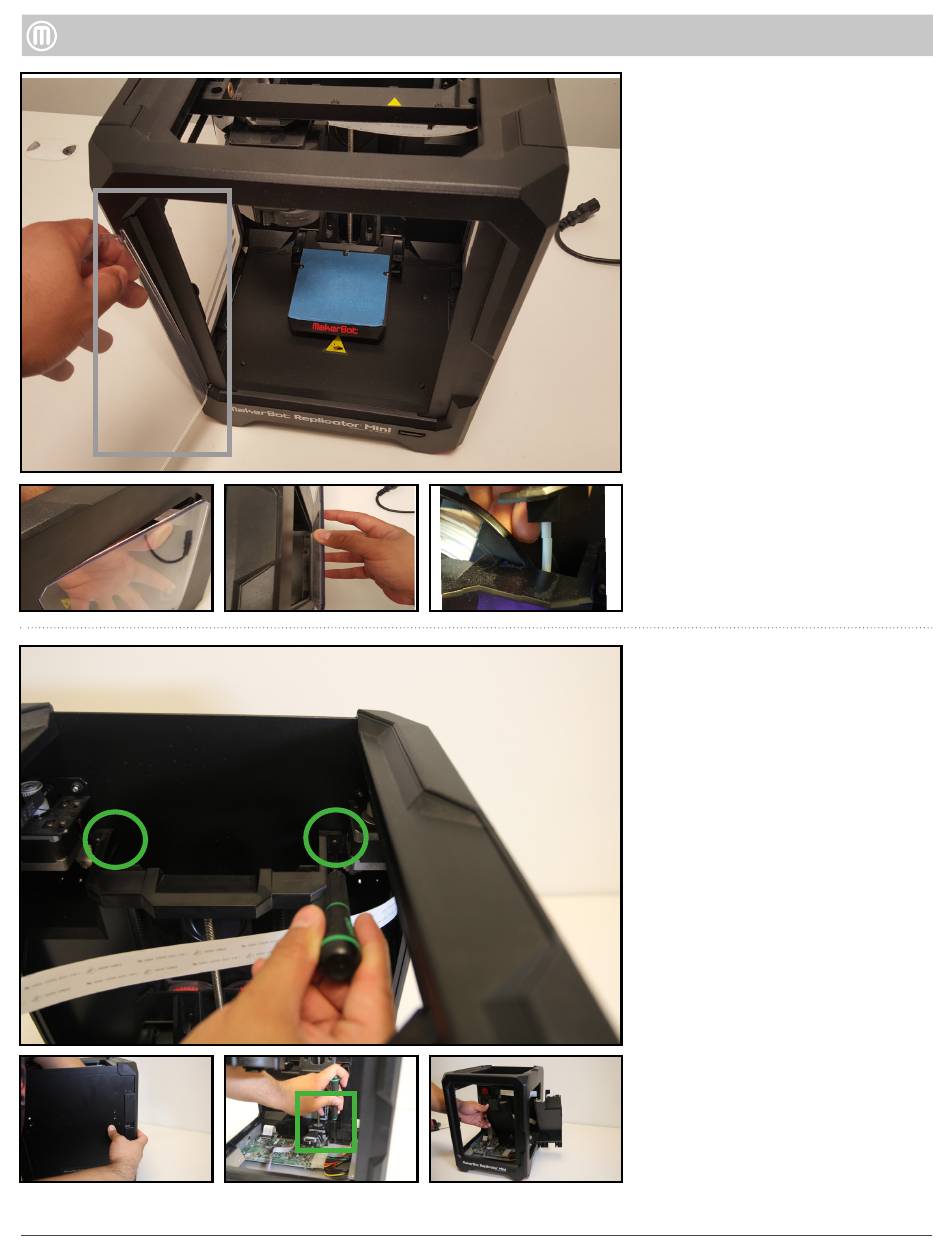

Step 1 - Remove the Door,
Windows and Filament Guide
•
To remove the Door, pull from top
downward and away from the
Minis body.
•
To remove side Windows, from the
inside of the printer, apply pressure
to pop out of the slot.
•
To remove the Filament Guide
Tube, pull upward.

Step 3 - Remove the Z-Stage

•
Remove four (4) button head Torx
•
Unplug the z-wire from the
Motor Wire Harness connected
to the Z-stage Motor.
•
Remove four (4) button head
Torx bolts by using a T20 driver
located in the back of the Inside
Base
•
Unclip the black clips on the
outer Back Panel by pushing
inward (using a 2.0mm hex
driver can help assist).
•
Lean the Z-stage Assembly
forward and pull up to remove.
