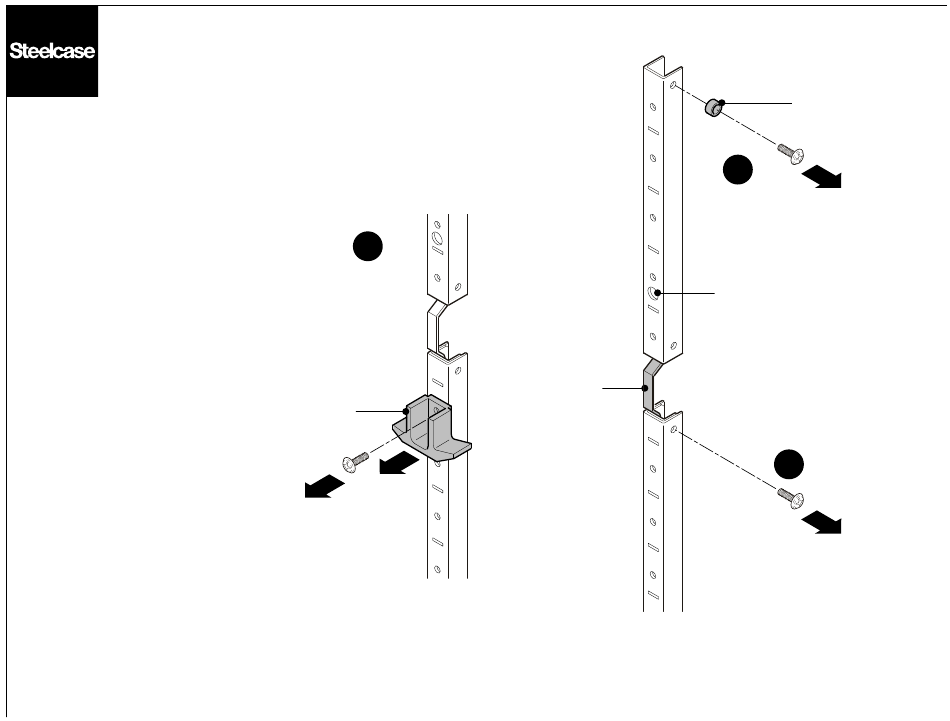

If Replacing the Lock Bar
1.
Remove lock tabs.
2.
Remove lock bar connector if needed.
3.
Remove cup washer from the top most
unit of the case.
1
LOCK TAB
NOTE: Remember placement
of lock tab. Tab must be
re-assembled in the same
location for unit to lock properly.
LOCK BAR
CONNECTOR
CUP WASHER
3
NOTE: Large hole located
towards the bottom of the case.
2
Page 9 of 12
