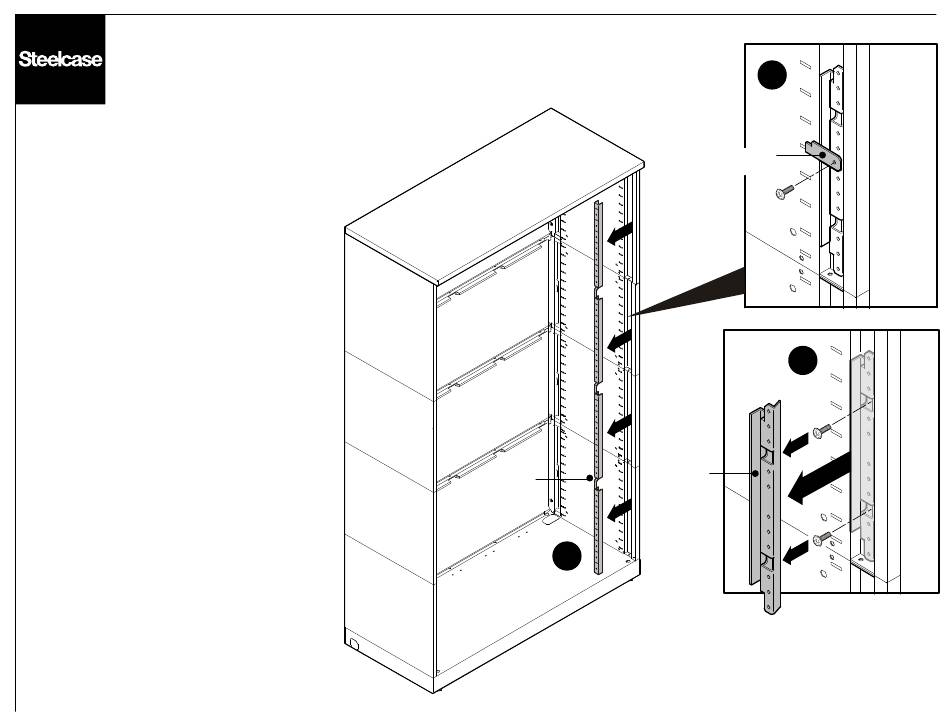

Removing the Lock Bar
Bracket
1.
Remove the lock bar bracket on both
sides of case in all positions.
2.
Remove screws from lock bar holder
(2a). Remove lock bar holder on both sides
of case (only if replacing this part, otherwise
leave it in) (2b).
3.
Remove lock bar assembly from both
sides of case.
LOCK BAR
LOCK BAR
ASSEMBLY
3
1
LOCK BAR
BRACKET
2
HOLDER
939501628 Rev E
