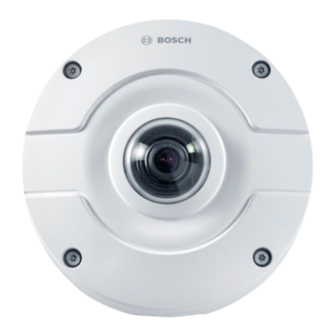

- Page 1 FLEXIDOME IP panoramic 6000/7000 ‑ outdoor NDS‑6004‑F180E | NDS‑6004‑F360E | NDS‑7004‑F180E | NDS‑7004‑F360E Installation manual...
-
Page 3: Table Of Contents
Protected network Bosch Video Client Video Security Client Troubleshooting Resolving problems Testing the network Customer service Maintenance Cleaning Repair Reset Decommissioning Transfer Disposal Technical data 10.1 Specifications 10.2 Dimensions Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC... -
Page 4: Safety
Protect all connection cables from possible damage, particularly at connection points. Data security This device has been tested with Bosch IP cameras and the Project Assistant app by Bosch. Performance and functionality in other configurations cannot be guaranteed. 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V. -
Page 5: Notices
Notice! Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. - Page 6 IP66 camera F01U359670 NDS-7004-F360E Fixed dome 12 MP 180º IVA IP66 camera Responsible party Bosch Security Systems Inc 130 Perinton Parkway 14450 Fairport, NY, USA www.boschsecurity.us IC statement (Canada) This device complies with Industry Canada licence-exempt RSS standard(s). Operation is...
- Page 7 KC (South Korea) Applicant name: Bosch Security Systems B.V. Product name: FLEXIDOME IP panoramic 6000 outdoor / FLEXIDOME IP panoramic 7000 outdoor Model name: FLEXIDOME IP panoramic 6000 outdoor / FLEXIDOME IP panoramic 7000 outdoor Manufacturer name: Bosch Security Systems B.V.
-
Page 8: Short Information
Bosch Security Systems accepts no liability for damage resulting directly or indirectly from faults, incompleteness or discrepancies between this manual and the product described. Copyright This manual is the intellectual property of Bosch Security Systems and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 9: System Overview
Integration with the many Bosch recording solutions is seamless. Operation with external systems The web browser is the most direct way of using the camera, however, the Bosch download store provides several other free applications (listed below) for viewing and controlling the camera. -
Page 10: Larger Surveillance Systems
It offers a user-friendly interface for easy live viewing of multiple cameras, playback, forensic search and export. IP Helper The IP Helper tool is a free PC application that makes it easy to detect Bosch cameras and devices on your network. 3.3.1... -
Page 11: Planning
This equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the shipper immediately. Verify that all parts are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. -
Page 12: Preparation
To guarantee the IK10 standard, 4 screws M5 and mounting plugs M5 are necessary. For installation with conduit, 5 screws M5 and mounting plugs M5 are necessary. – Appropriate size power drill. – Screwdriver and bit holder for TR20 bit. 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V. -
Page 13: System Requirements
Planning | en – Standard SD card (optional) Note: Bosch recommends the use of industrial SD cards with health monitoring. System requirements To enjoy the full benefits of megapixel resolutions, ensure that the computer, the graphic adapter, the display connections, and the monitor are sufficiently powerful to view our camera images at their best. -
Page 14: Installation
Notice! Use full size SD cards for maximum reliability, and to eliminate the risk of bad connections in a microSD to full size SD adapter. Bosch recommends the use of industrial SD cards with health monitoring. Installation/Removal of the SD card On the top of the camera module, put the SD card in the correct position in the SD slot of the camera module. - Page 15 Put the PoE cable through the hole on the camera base. Attach the grommet to the PoE cable. Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC...
- Page 16 12. Push the camera base against the mounting plate and turn the camera base clockwise until a click is heard. Make sure that the camera base is secured. 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V.
- Page 17 10 min. 14. Remove the protective cover from the desiccant and stick the desiccant on the camera base. 15. Connect the PoE cable to the camera module. Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC...
- Page 18 17. Attach the camera module to the camera base with the three screws. Tighten the screws with 1.5 Nm (1.1 lbfft). 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V.
- Page 19 19. Attach the top cover to the camera base with the four screws. Make sure that the arrow is on the same side as the arrow of the camera module. Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC...
-
Page 20: Installation With Conduit
Use the mounting template supplied to mark the position of the five holes. Make sure that the final position is correct. Note: Make sure that the cable duct opening is facing the conduit plate installation area. 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V. - Page 21 Put the conduit plate in position on the surface and attach it with the washer and screw. Put the conduit cover on the conduit plate and attach it with the screw. Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC...
- Page 22 Remove the screw from the camera base to remove the side cover. 10. Put the PoE cable through the hole on the camera base. 11. Attach the grommet to the PoE cable. 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V.
- Page 23 17. Remove the desiccant from the bag. Note: After the desiccant is removed from the bag, the installation of the device must be done in less than 10 min. Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC...
- Page 24 20. Pre-fix the camera module to the camera base with the spring hooks. Make sure that the arrow on the camera module points in the same direction as the arrow on the camera base. 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V.
- Page 25 23. Attach the top cover to the camera base with the four screws. Make sure that the arrow is on the same side as the arrow of the camera module. Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC...
-
Page 26: Optional Universal Accessories
Description NDA-8000-PIPW Pendant interface plate including weather protector for outdoor use. NDA-8000-PIP Pendant interface plate for indoor use. NDA-U-PSMB Surface mount box (SMB) for wall mount or pipe mount. 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V. - Page 27 Installation | en Description NDA-U-PMT Universal pipe mount for dome cameras, 31 cm, white NDA-U-PMTE Extension for universal pipe mount, 50 cm, white NDA-U-WMT Universal wall mount for dome cameras, white Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC...
- Page 28 PoE enabled cameras; 15.4 W, 1- port NPD-5004-POE Power-over-Ethernet midspan injectors for use with PoE enabled cameras; 15.4 W, 4- ports NPD-3001-WAP Bosch camera portable and wireless installation tool 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V.
-
Page 29: Configuration
Enter the IP address of the unit as the URL. During initial installation, confirm any security questions that appear. IP Helper The IP Helper tool is a free PC application that makes it easy to detect Bosch cameras and devices on your network. 6.1.2 Protected network If a RADIUS server is used for network access control (802.1x authentication), the unit must... -
Page 30: Troubleshooting
The ping command can be used to check the connection between two IP addresses. This allows testing whether a device is active in the network. Open the DOS command prompt. Type ping followed by the IP address of the device. 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V. -
Page 31: Customer Service
Customer service If a fault cannot be resolved, please contact your supplier or system integrator, or go directly to Bosch Security Systems Customer Service. The version numbers of the internal firmware can be viewed on a service page. Please note this information before contacting Customer Service. -
Page 32: Maintenance
Dry the bubble thoroughly with a dry nonabrasive cloth to prevent water spots. Never scrub the bubble with any abrasive material or cleaners. Bosch recommends cleaning the exterior of the bubble with NOVUS “No. 1” Plastic Clean & Shine (or equivalent), according to manufacturer’s instructions. Refer to www.novuspolish.com... - Page 33 FLEXIDOME IP panoramic 6000/7000 - outdoor Maintenance | en Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC...
-
Page 34: Decommissioning
The unit should only be passed on together with this installation guide. Disposal Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical appliances, which have reached the end of their working life, must be collected and disposed of separately from household waste material. -
Page 35: Technical Data
Encoding interval 1 to 25 [30] ips Encoder regions Eight independent areas for setting encoder quality to optimize bitrate. Video resolution (H x V) – 180° version Video 1 channel Image circle 3640 x 2160 Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC... - Page 36 Eight independent areas, fully programmable Scene modes 9 default modes with scheduler Video Content Analysis MOTION+, Essential Video Analytics (for 6000 series) and Intelligent Video Analytics (for 7000 series) Pre-positions Six independent sectors 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V.
- Page 37 NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox™, CHAP, digest authentication, Stratocast™ Genetec Encryption TLS1.0/1.2, AES128, AES256 Ethernet 10/100 Base-T, auto-sensing, half/full duplex Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC...
-
Page 38: Dimensions
Operating Humidity 5% to 93% RH non-condensing 5% to 100% RH condensing Storage Humidity Up to 98% RH Impact Protection IK10 Ingress Protection IP66 Sustainability PVC free 10.2 Dimensions 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V. - Page 39 FLEXIDOME IP panoramic 6000/7000 - outdoor Technical data | en Bosch Security Systems B.V. Installation manual 2019-07 | V01 | DOC...
- Page 40 | Technical data FLEXIDOME IP panoramic 6000/7000 - outdoor 2019-07 | V01 | DOC Installation manual Bosch Security Systems B.V.
