1609755
5/16-18 x 2" SHCS
Tools required
Cordless drill
Allen wrenches
ofs.com
imagine a place®
Obeya assembly instructions
Obeya runoff worksurface assembly
5/ 3 2"
3/ 1 6"
1/4"
Note: sitting height runoff worksurfaces will not use the foot ring and should bypass those steps in
the assembly process.

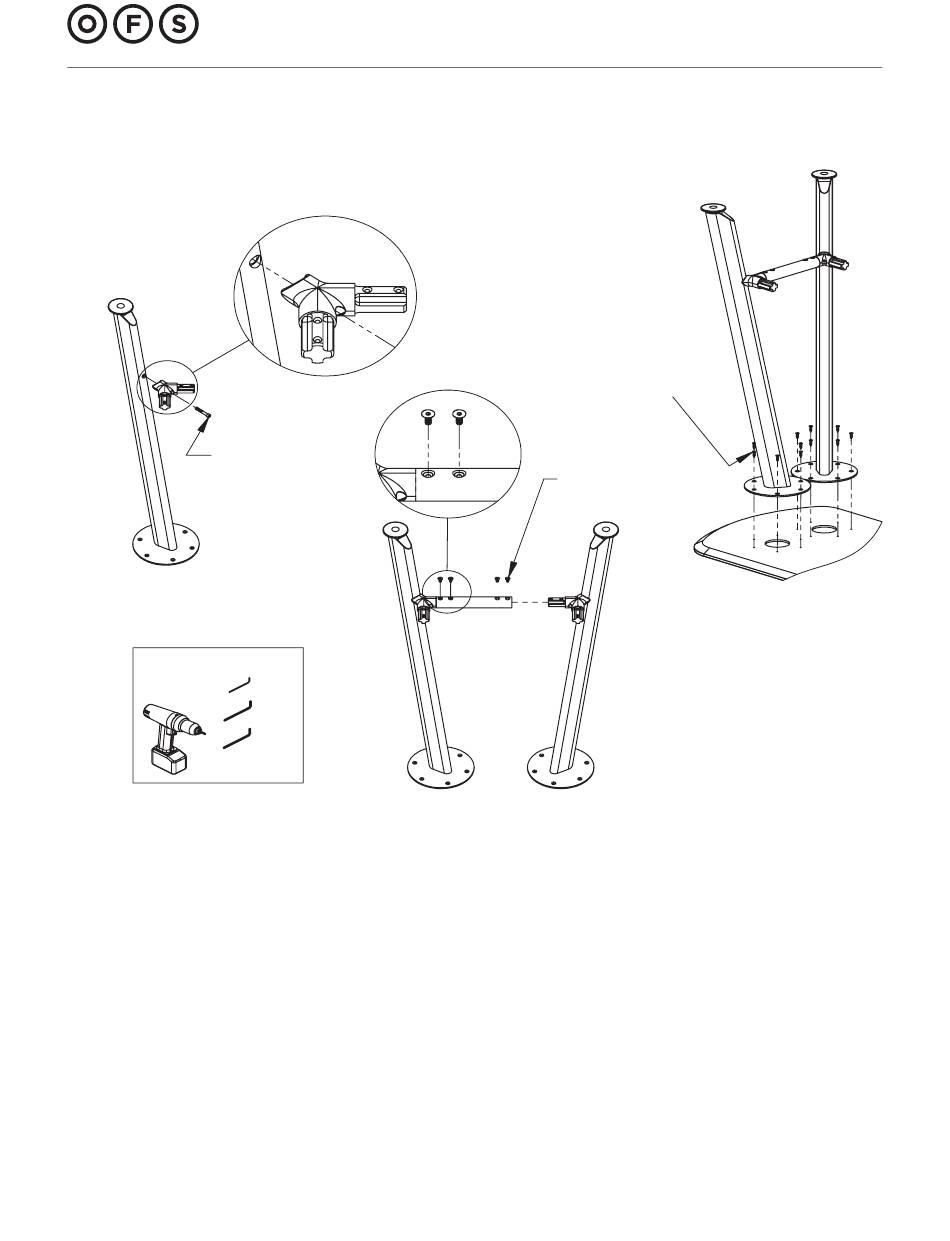

1. Begin by inserting the (1 609755) 5/16-18 x 2" screw into the foot rail knuckle and threading into
the table leg, making sure the knuckle has been mounted in the same orientation as shown in
the view above. Repeat this step for the remaining table leg.
2. Next, slip the shortest length foot rail over one end of the knuckle, align the mounting holes
between the knuckle and foot rail and fasten the (1 609077) 1/4-20 x 5/8" screws down. Slip the
remaining open end of the foot rail over the end of the knuckle on another table leg and fasten
down completely as shown in the view above.
3. Position the legs onto the worksurface in the orientation shown making sure the holes on the
mount plates align with the pre-drilled holes on the worksurface. Fasten the mount plates to the
worksurface using the supplied (1 608904) # 12 x 7/8" screws.
800.521.5381
1608904 #12 x 7/8"
flat head wood screw
1609077
1/4-20 x 5/8" FCHS
Assembly instructions
35
