Summary of Contents for Ofs Edward Jones Pecan
- Page 1 Edward Jones Pecan assembly...
- Page 2 Edward Jones Pecan assembly Table of contents FA modern assembly L unit assembly EJ1-BOA reception assembly ofs.com imagine a place® 800.521.5381 Assembly instructions...
- Page 3 Edward Jones Pecan assembly Materials HK-71 #8 x 1.5" Quad pan head screws FA modern assembly Before installation, make sure you have the right amount of cartons of furniture Install height adjustable leg, control box and control panel. There are pre-drilled holes to locate.

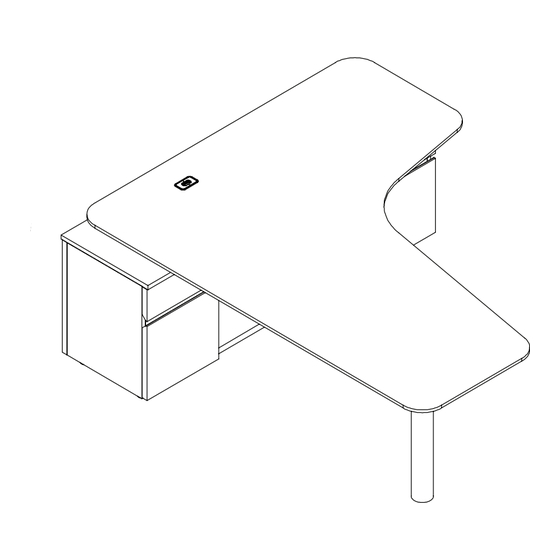

- Page 4 Edward Jones Pecan assembly Materials HK-27 Screws HK-6 Clamp plates HK-110 Screws L unit assembly Before installation, make sure you have the right amount of cartons of furniture Place items together and connect both worksurfaces together with the support rail (use screws from HK-27) and one of the clamp plates (HK-6).
- Page 5 Edward Jones Pecan assembly Materials HK-108 Mini-fix bolts EJ1-BOA reception assembly Before installation, make sure you have the right amount of cartons of furniture Part 1: Install transaction shelves (Figure A) Note: Main desk will already be built. Make sure the head of the bolt (Detail A) for the transaction shelf bracket is facing towards the worksurface side of the wall panel.
- Page 6 Edward Jones Pecan assembly EJ1-BOA Reception Assembly Before installation, make sure you have the right amount of cartons of furniture Part 2: Install additional panels Make sure all hardware is installed into the routes of the wall panels. (Figure A) Make sure the main reception desk is leveled.
- Page 7 Edward Jones Pecan assembly EJ1-BOA Reception Assembly Before installation, make sure you have the right amount of cartons of furniture Part 3: Install single pedestal, optional depending on set-up. Attach pedestal brackets to the back panel of the pedestal. (Figure A) Make sure the pedestal bracket is oriented correctly so that it can be easily accessed to install to the wall panel.
- Page 8 Edward Jones Pecan assembly Materials HK-102 #8 x 2” quadrex washer head screw EJ1-BOA Reception Assembly Before installation, make sure you have the right amount of cartons of furniture Part 4: Install credenza, optional depending on set-up. Push the credenza side and back up against the wall panels to attach, use HK-102. If attaching through a drawer pedestal, make sure that the screws are ran through the back case spacers.
