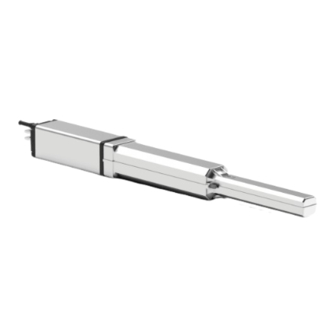

fadini HINDI 880 SPRINT Instruction Manual
Oil-hydraulic kit operator for swinging gates up to 2,3 m per leaf
Hide thumbs
Also See for HINDI 880 SPRINT:
- Instruction manual (13 pages) ,
- Installation manual (12 pages) ,
- Installation manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for fadini HINDI 880 SPRINT
Summary of Contents for fadini HINDI 880 SPRINT

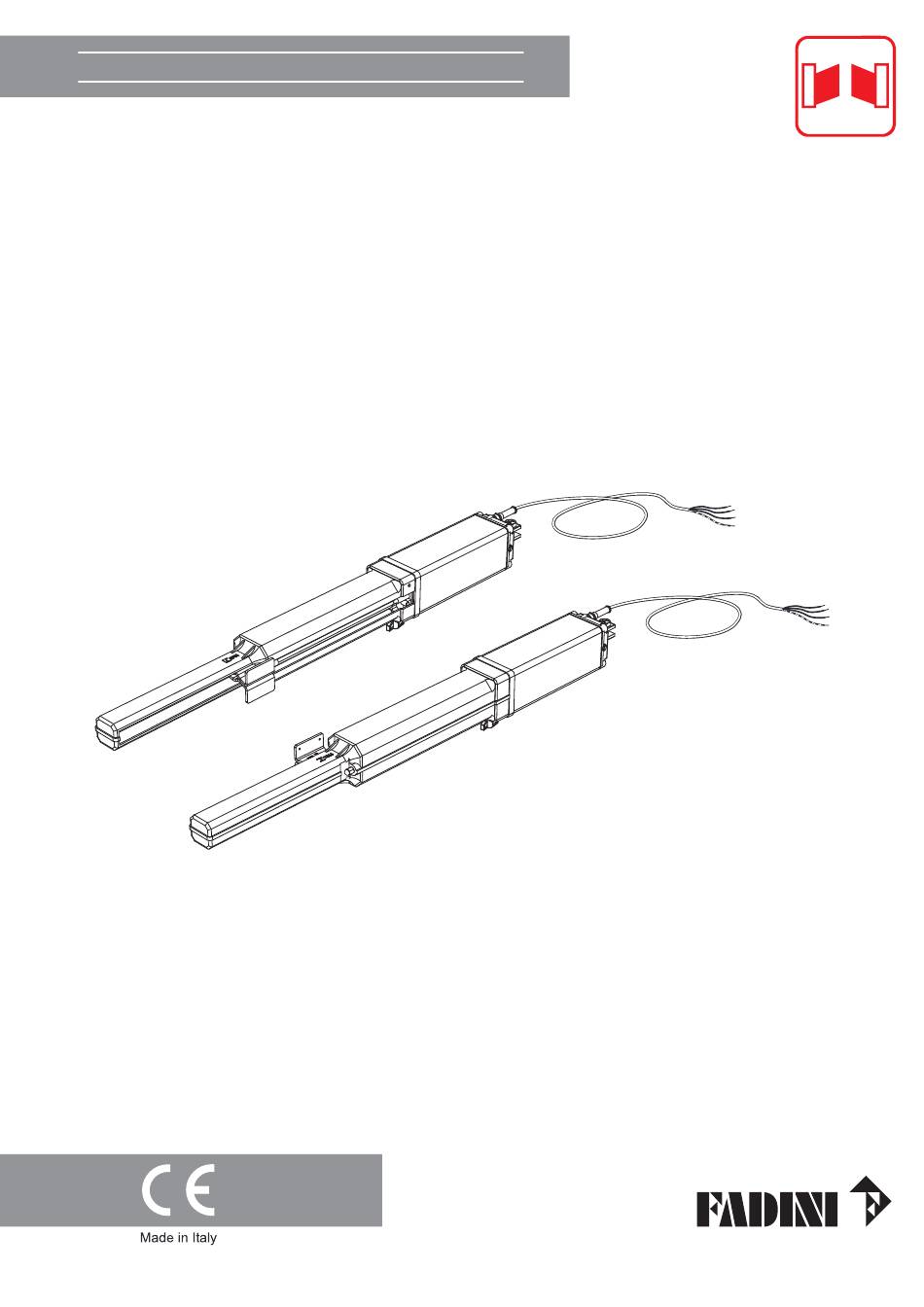

- Page 1 GB Instructions manual 1 - 8 pages HINDI 880 SPRINT Oil-hydraulic KIT operator for swinging gates up to 2,3 m per leaf EN 13241 EN 12453 EN 12445...
- Page 2 Meccanica Fadini S.r.l. (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Hindi 880 Sprint complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. An automatic gate operator is, by law, a “machinery”...
- Page 3 GENERAL DESCRIPTION OF THE PRODUCT HINDI 880 SPRINT is an oil-hydraulic operator for external applications, designed to open and close swinging gates. It is an oil-hydraulic product and has, therefore, all the advantages and reliability that hydraulic units ensure in smoothness of movements. The valves controlling high and low pressure are adjustable to meet any requirements with swinging gates.
- Page 4 Oil-hydraulic KIT operator for swinging gates HINDI 880 SPRINT up to 2,3 m per leaf FIRST OPERATIONS TO PULL THE SHAFT OUT Before fixing the operator to the gate and gate post, pull the shaft out (Pic. 3). Release by the spanner provided with the equipment (version with hydraulic locking valve);...
- Page 5 2,3 m per leaf It is advised to temporary fasten Hindi 880 Sprint operator to the gate by clamps and make sure it is perfectly leveled. Then release the operator and open and close the gate by hand to asses correctness of the installation distances and get 90°...
- Page 6 0 ÷ 5.100 N Frequency 50 Hz Closing thrust power 0 ÷ 6.200 N Absorbed current 1,2 A Oil type Oil Fadini - Item 708L Absorbed power 250 W Piston stroke 235 mm Capacitor 12,5 μF Piston diameter 45 mm Motor rotation speed 1.350 rpm...
- Page 7 NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s.
- Page 8 Actuator releasing for manual operations of the gate With the version Hindi 880 Sprint with hydraulic locking device (bidirectional or in closed gate position only), it is required that the unit be released by means of the provided spanner which unlocks the release device positioned under the valve assembly.
