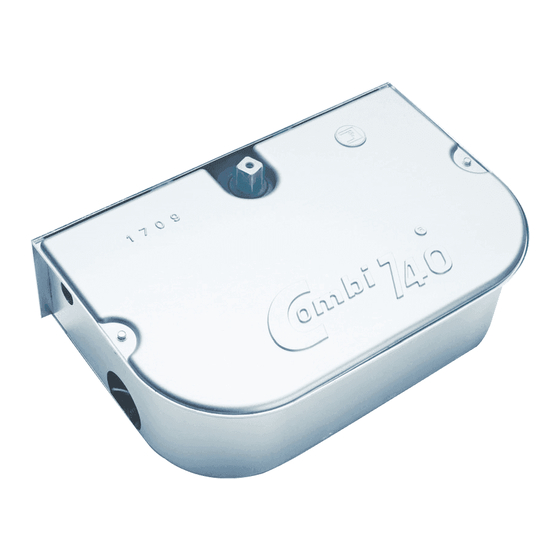

fadini Combi 740 Instruction Manual

Underground oil-hydraulic operator for swinging gate
Hide thumbs Also See for Combi 740:

Advertisement

Quick Links

Download this manual
GB Instructions manual
17 - 32
pages
Underground oil-hydraulic operator for swinging gates
110° or 175° shaft rotation
Compact all-in-one oil-hydraulic motor-pump and jack
Reversible or bidirectional locking versions
Models with or without hydraulic braking device
Models with or without flow regulator
EN 13241
EN 12453
EN 12445

Advertisement

loading
Need help?

Need help?

Do you have a question about the Combi 740 and is the answer not in the manual?

Questions and answers

Related Manuals for fadini Combi 740

Summary of Contents for fadini Combi 740

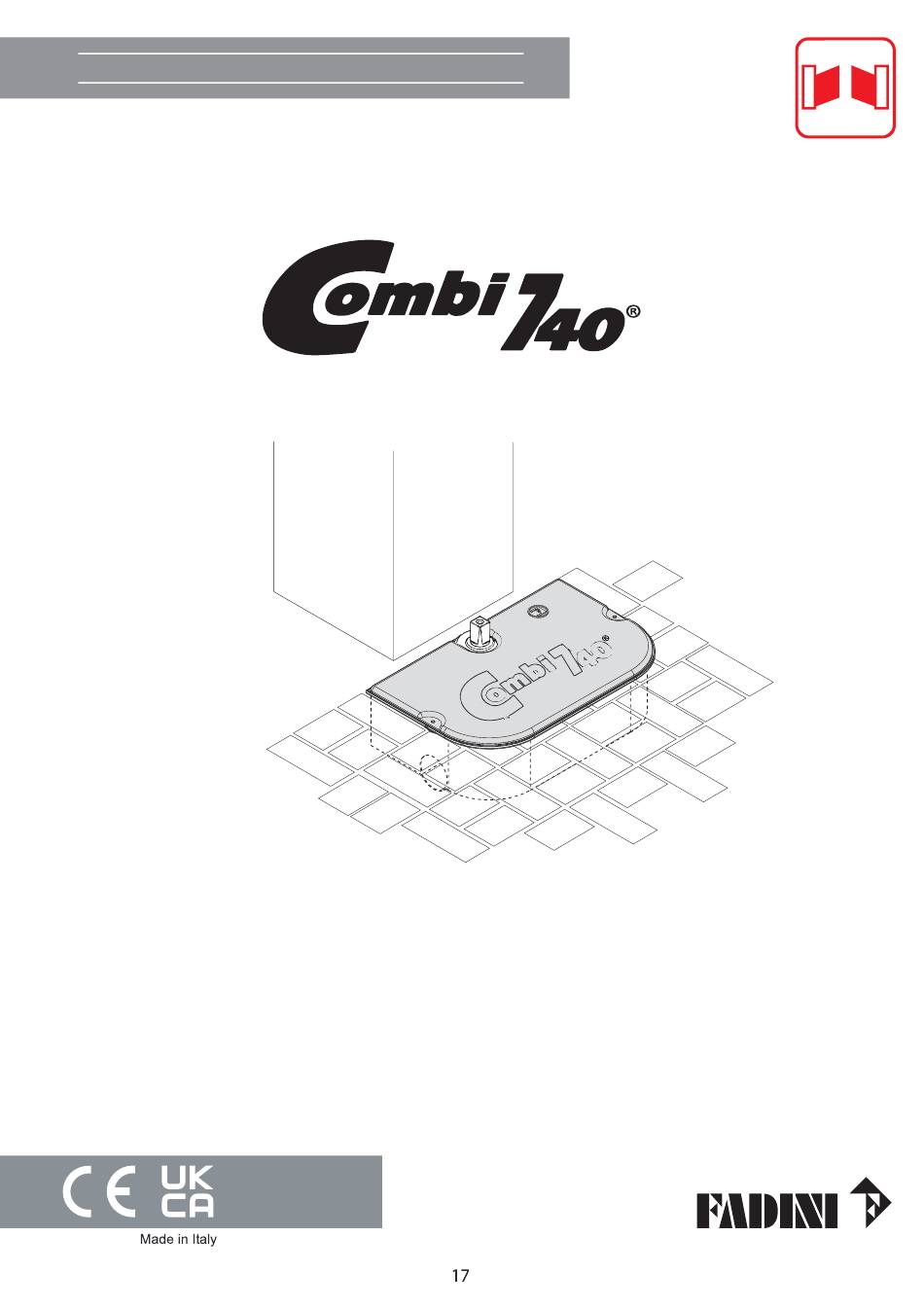

  • Page 1 GB Instructions manual 17 - 32 pages Underground oil-hydraulic operator for swinging gates 110° or 175° shaft rotation Compact all-in-one oil-hydraulic motor-pump and jack Reversible or bidirectional locking versions Models with or without hydraulic braking device Models with or without flow regulator EN 13241 EN 12453 EN 12445...

  • Page 2: Installation

    CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini S.r.l. (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Combi 740 complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company.
  • Page 3 (for hydraulic jacks with without hydraulic locking without hydraulic locking hydraulic locking device) device) device) Aluminium cover for foundation box COMBI 740 - 110° COMBI 740 - 175° Preparatory distance support Foundation box (zinc-coated or stainless steel) Pic. 1...
  • Page 4 COMBI 740 is a handed unit, either right- or left-handed (gates viewed from inside). Being oil-hydraulic, it can offer all the advantages that this feature allows such as reliability, smooth movements, adjustable thrust powers by maximum and minimum pressure valves to suit any kind of swinging gates.
  • Page 5 VIEW FROM BELOW Pic. 4 Important: for installations with Combi 740 (reversible ie. non locking or locking) on gates longer than 2,0 m each it is always necessary to install an electric lock with a gate stop latch: the possible solutions are shown in Pic. 5 and Pic.

  • Page 6: Installing The Foundation Box

    IDEAL USE OF THE UNDERGROUND OIL-HYDRAULIC COMBI 740 - COMBI 740 Reversible version, 110° rotation: 1) COMBI 740 - 110° can suit any gate type, always with an electric lock. 2) For gate leafs wider than 2,50 m, COMBI 740 braking version is recommended.
  • Page 7 Pic. 11 The gate can be installed even without Combi 740: the foundation box, actually, is pre-set to house the preparatory support which, once secured inside of it, replaces the lower gate hinge (Pic. 12). M8 fixing nuts...
  • Page 8 IMPORTANT TO ACHIEVE CORRECT PUTTING IN PHASE OF THE GATE: the plain square-bored ferrule must be welded to the gate leaf with COMBI 740 shaft rotated by 5° or 10°, before it reaches the end of the permitted stroke (Pic. 14).
  • Page 9 Pic. 16 Pic. 17 COMBI 740 is to be inserted into the foundation box, fixed by using the two hexagonal studs and held in place by the raised edges of the two slits in the foundation box base (Pic. 18).
  • Page 10 ADJUSTING THRUST FORCE The anti-crashing safety of Combi 740 is ensured by the hydraulic maximum pressure valves, which allow for an accurate and stable adjustment of the thrust force over the time. To access the thrust adjusting screws, undo the Allen screw and remove the cover (Pic. 22).
  • Page 11 COMBI 740 COMBI 740 underground oil-hydraulic operator for swinging gates APPLICATION OF COMBI 740 WITH OFF-AXIS DRIVING ARM - CODE 7033L 190 mm Leave a distance of Gate stop at least 1 cm in closed gate position Combi 740 shaft in axis...
  • Page 12 (not supplied by the manufacturer) 11 - Photocell receiver (inside) on post (beyond 100 m cable section 2,5 mm²) 12 - Right-handed Combi 740 4 - Junction box (not supplied by the manufacturer) 13 - Key-switch 5 - Left-handed Combi 740...
  • Page 13 Operator: maintenance inspection at least every 6 months, while for the electronic equipment and safety systems an inspection at least once every month is required. The manufacturer, Meccanica Fadini S.r.l., is not responsible for non-observance of good installation practice and incorrect maintenance of the installation.

  • Page 14: Maintenance Record

    NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s.

  • Page 15: Technical Data

    0,85 l/min Duty cycle opening ~ 28 s Working temperature -20 °C +80 °C stop 20 s Oil type FADINI Oil - Code 708L closing ~ 28 s Shaft rotation 110° - 175° stop 20 s Torque 250 - 400 Nm...
  • Page 16 Via Mantova, 177/A - 37053 Cerea (VR) Italy 2012/19/UE Directive Re. disposal of electric and electronic waste Ph. +39 0442 330422 Fax +39 0442 331054 DISPOSE PROPERLY OF MATERIALS ARMFUL TO THE ENVIRONMENT info f f @fadini.net - www.fadini.net 20231009...
