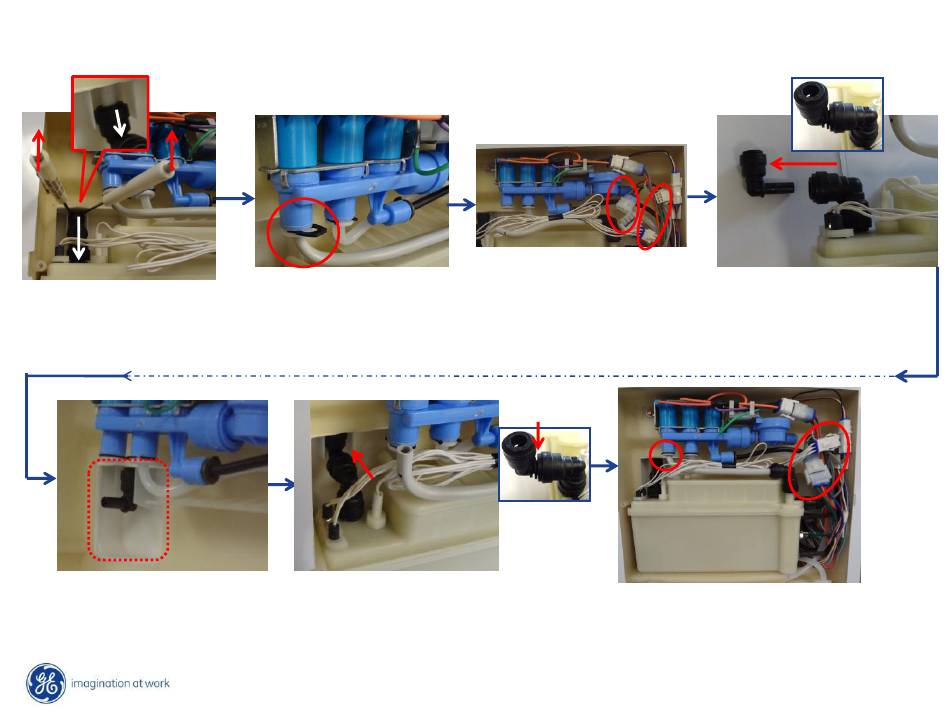

Hot Water Tank Removal & Installation
Remove access panel from the Left FF inner door panel to expose both water tanks and water valve.
Use 2 small screwdrivers and
pry downward to release
collet and slide quick
connector down from the hot
water tube.
Install the 90˚ male to female
connector on the door hot water
tube, making sure it is fully
seated
REMOVAL
Remove water valve's locking
clip from the Hot Water tank
port then release tubing.
Reinstall the clip on the valve.

INSTALLATION

Push the female end or the
connector on the tank onto the
male end of connector just
installed on the hot water line.
Disconnect both connectors to
the Hot Water Tank then remove
tank from the door.
To prevent
leaking
make sure
the
connector
seats fully.
Reconnect both electrical
connectors and the tank inlet tube
to the water valve connector.
Separate the 2 – 90˚ quick
connectors
49
