Appendix A Serial Port

The HD Mesh unit features a serial port. The serial port is useful in the event that the router cannot
be accessed via TCP/IP (HTTP, Telnet, or Winbox). A Terminal Emulation program (such as HyperTerminal
on the Windows operating system) can be used to access the HD Mesh's CLI using the serial port, which is
located in the top right side of the enclosure. The serial 9 pin db female connector can be used with a
standard null-modem cable to manage the HD Mesh unit.

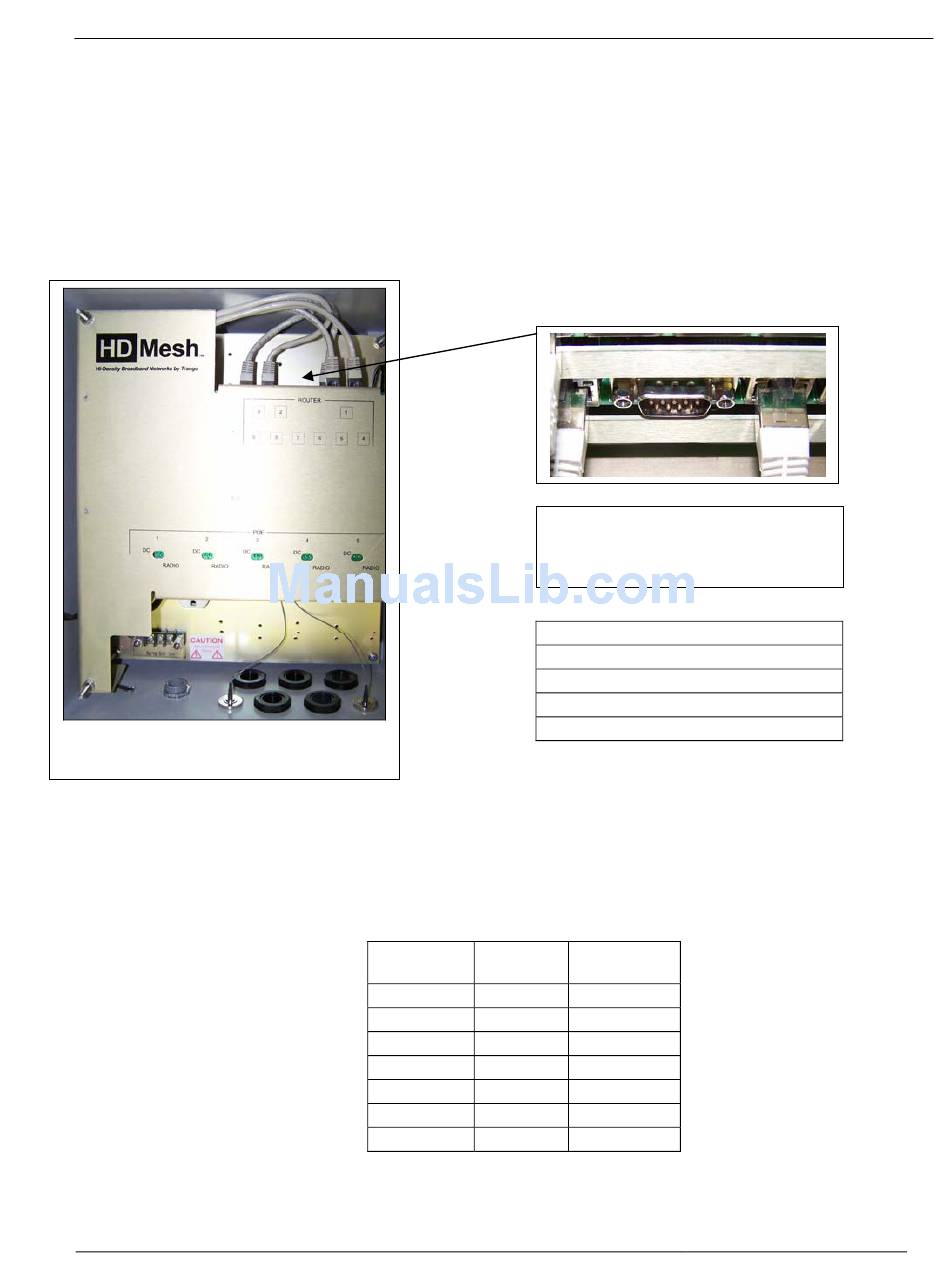

Figure 43

Management serial cable

The console cable needs to be a 9 pin db female to 9 pin db female connector cable. A null modem
cable can be used to manage the HD Mesh unit. You can also use the pin outs below to manufacture your
own serial cable.
Trango Broadband Wireless — High Density MESH
The settings below are needed to gain
access to the HD Mesh unit via the
console cable.
DB9
Female Function
1 + 6 CD+DSR
2 RxD
3 TxD
4 DTR
5 GND
7 RTS
8 CTS
Figure 44
115200bit/s
8 data bits
1 stop bit
no parity
Hardware RTS/CTS
DB 9
Female
4
3
2
1 + 6
5
8
7
