HD Mesh Node
Winbox (GUI) Interface
The HDMESH features a convenient and easy-to-use GUI interface tool. The Winbox interface offers the
closest functionality to the Command Line Interface (CLI). . The Winbox interface provides a lot more
functionality than the Web Interface. Winbox is improving with each release but CLI still provides the most
functionality
To use the Winbox, the following must be present:
•
An Ethernet (wired or wireless) connection between a PC and the HD Mesh unit.
•
Ethernet PC connection to the HD Mesh unit.

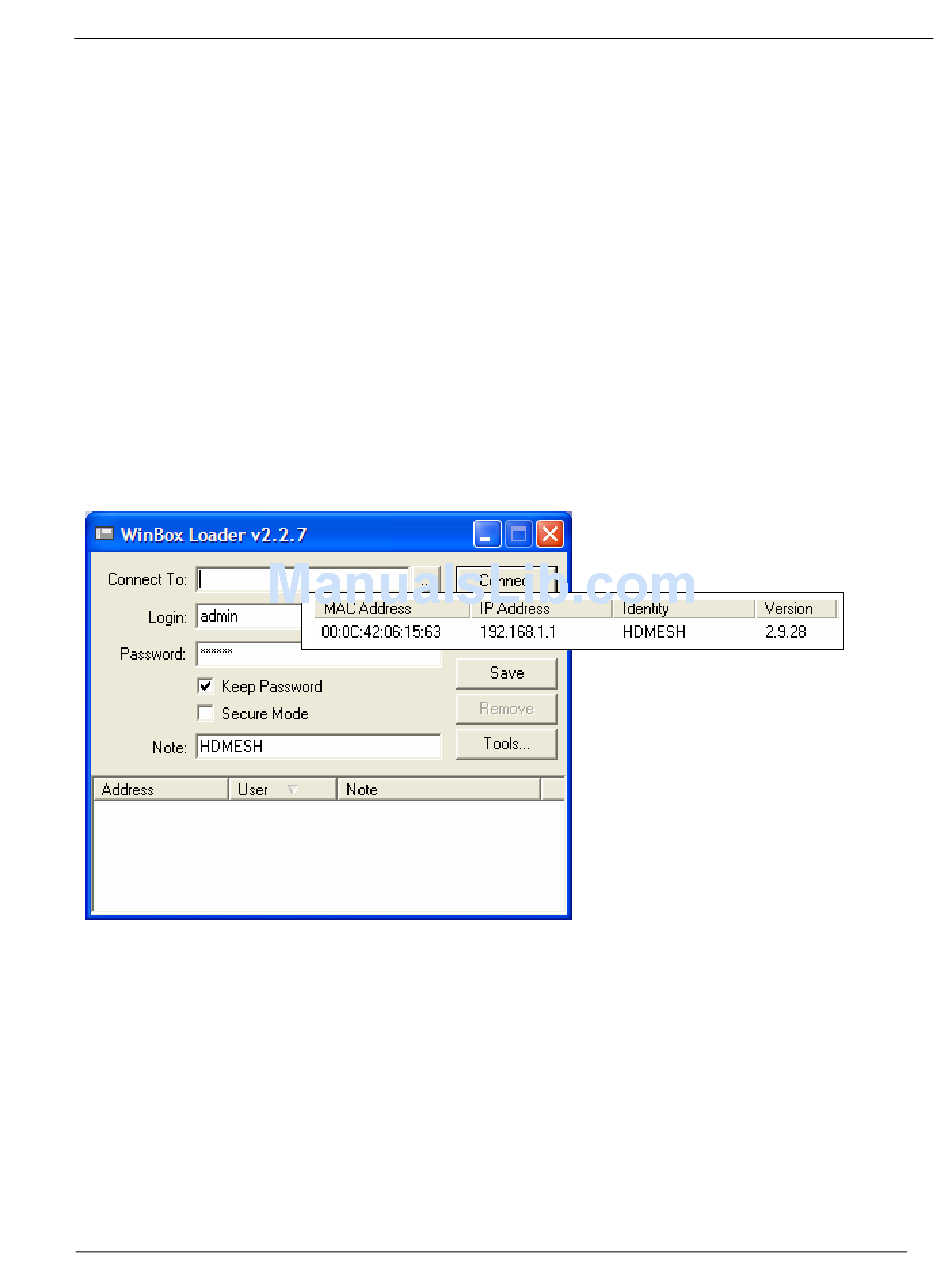

In order to use the Winbox simply connect the HD Mesh unit to a PC and type the HD Mesh's IP address into
the "Connect To" space. Clicking on the dotted square will perform a broadcast scan and show MAC
addresses and IP addresses of HD Mesh Nodes discovered on the network. Supply a Login Name "admin"
and password "trango" (Figure 6)
Figure 6
Trango Broadband Wireless — High Density MESH
page 11
